DIODESDatasheet (PDF)

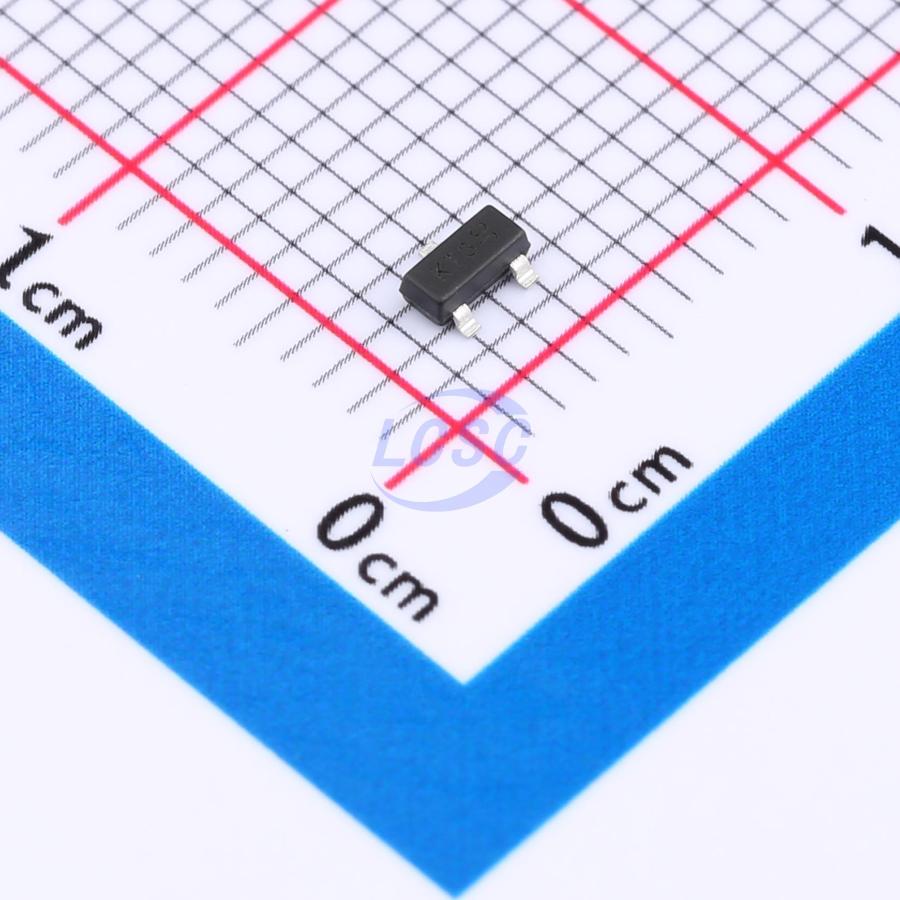

BAS19-7-F
Diode Independent 100V 200mA Surface Mount SOT-23-3
SOT-23-3ROHS3 CompliantActive
DIODE GP 100V 200mA SOT-23-3
- Manufacturer
- DIODES
- Manufacturer part #
- BAS19-7-F
- Store part #
- C442629
- Package / case
- SOT-23-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C442629
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.18 | ₹31.80 |
| 100+ | ₹3.11 | ₹311.00 |
| 300+ | ₹3.07 | ₹921.00 |
| 1,000+ | ₹3.02 | ₹3,020.00 |
10 × ₹3.18
₹31.80
excl. GST
₹37.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAS19-7-F
₹31.80 for 10 + GST
Specifications
- Reverse Recovery Time (trr)
- 50ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- Standalone
- Pd - Power Dissipation
- 250mW
- Voltage - Forward(Vf@If)
- 1.25V@200mA
- Reverse Leakage Current (Ir)
- 100nA@100V
- Non-Repetitive Peak Forward Surge Current
- 2.5A
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Key features
- Fast switching speed
- Surface mount package, ideal for automated insertion
- General-purpose switching applications
- High conductance
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- BAS20Q and BAS21Q for automotive applications requiring specific change control; these parts are AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAS21Q-7-F#C507900DIODES · SOT-23 | DIODES | SOT-23 | 2,210 | ₹12.77 · 2,210 in stock | View |
 | BAS19#C68960JSCJ · SOT-23 | JSCJ | SOT-23 | 2,280 | ₹3.92 · 2,280 in stock | View |
 | BAS20#C10039JSCJ · SOT-23 | JSCJ | SOT-23 | 2,880 | ₹1.98 · 2,880 in stock | View |
| BAS20-7-F#C526423DIODES · SOT-23 | DIODES | SOT-23 | 720 | ₹6.48 · 720 in stock | View | |
 | BAS21-7-F#C459832DIODES · SOT-23 | DIODES | SOT-23 | 5,520 | ₹10.69 · 5,520 in stock | View |
