DIODESDatasheet (PDF)

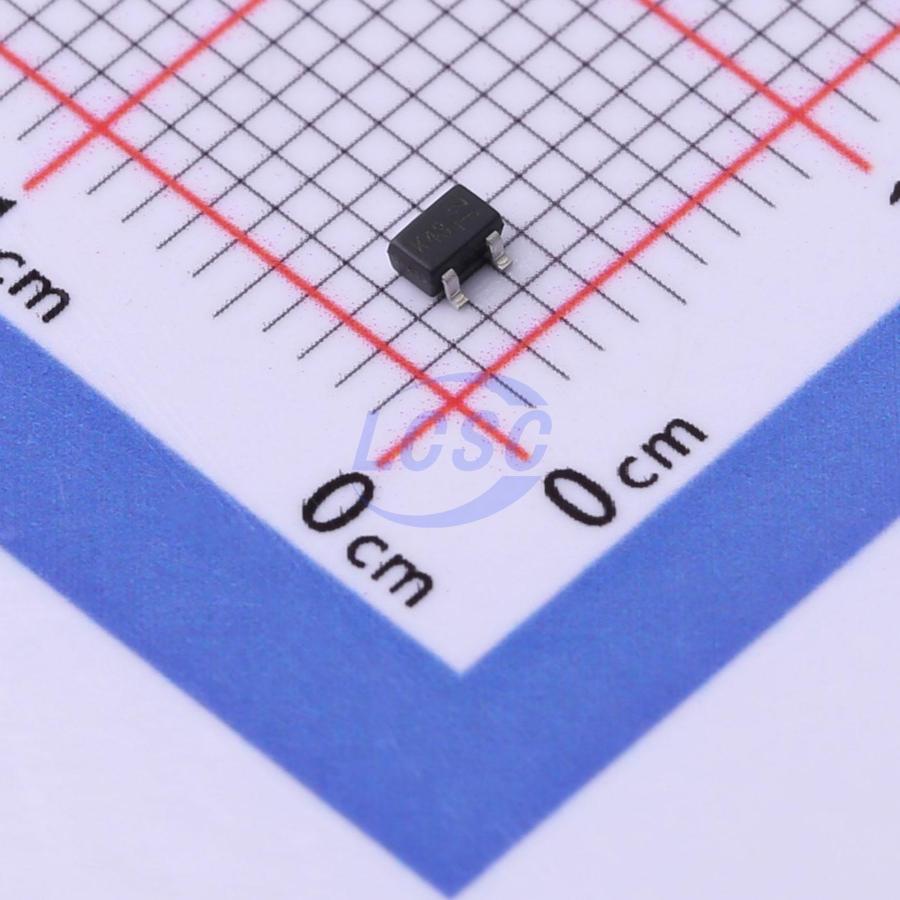

BAS40W-7-F
1 Independent 40V 1V@40mA 200mA SOT-323(SC-70) Single Diodes RoHS
SOT-323(SC-70)ROHS CompliantActive
Voltage： 40V Current： 200mA
- Manufacturer
- DIODES
- Manufacturer part #
- BAS40W-7-F
- Store part #
- C134370
- Package / case
- SOT-323(SC-70)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C134370
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.56 | ₹105.60 |
| 100+ | ₹8.76 | ₹876.00 |
| 300+ | ₹7.86 | ₹2,358.00 |
| 3,000+ | ₹7.18 | ₹21,540.00 |
| 6,000+ | ₹6.64 | ₹39,840.00 |
| 9,000+ | ₹6.38 | ₹57,420.00 |
10 × ₹10.56
₹105.60
excl. GST
₹124.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAS40W-7-F
₹105.60 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Pd - Power Dissipation
- 200mW
- Voltage - Forward(Vf@If)
- 1V@40mA
- Reverse Leakage Current (Ir)
- 200nA@30V
- Non-Repetitive Peak Forward Surge Current
- 600mA
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
Key features
- Low Forward Voltage Drop
- Fast Switching
- Ultra-Small Surface Mount Package
- PN Junction Guard Ring for Transient and ESD Protection
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- An Automotive-Compliant Part is Available Under Separate Datasheet (BAS40WQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAS40WQ-7-F#C5248575DIODES · SOT-323 | DIODES | SOT-323 | 101 | ₹62.55 · 101 in stock | View |
 | SMMBD770T1G#C894333onsemi · SC-70 | onsemi | SC-70 | 10 | ₹7.73 · 10 in stock | View |
 | BAS40W#C41355677LGE · SOT-323 | LGE | SOT-323 | 980 | ₹4.14 · 980 in stock | View |
| BAS40W#C51315102CBI · SOT-323 | CBI | SOT-323 | 2,750 | ₹2.17 · 2,750 in stock | View | |
 | BAT54WFILMY#C2970145ST · SOT-323 | ST | SOT-323 | 370 | ₹26.62 · 370 in stock | View |
