NexperiaDatasheet (PDF)

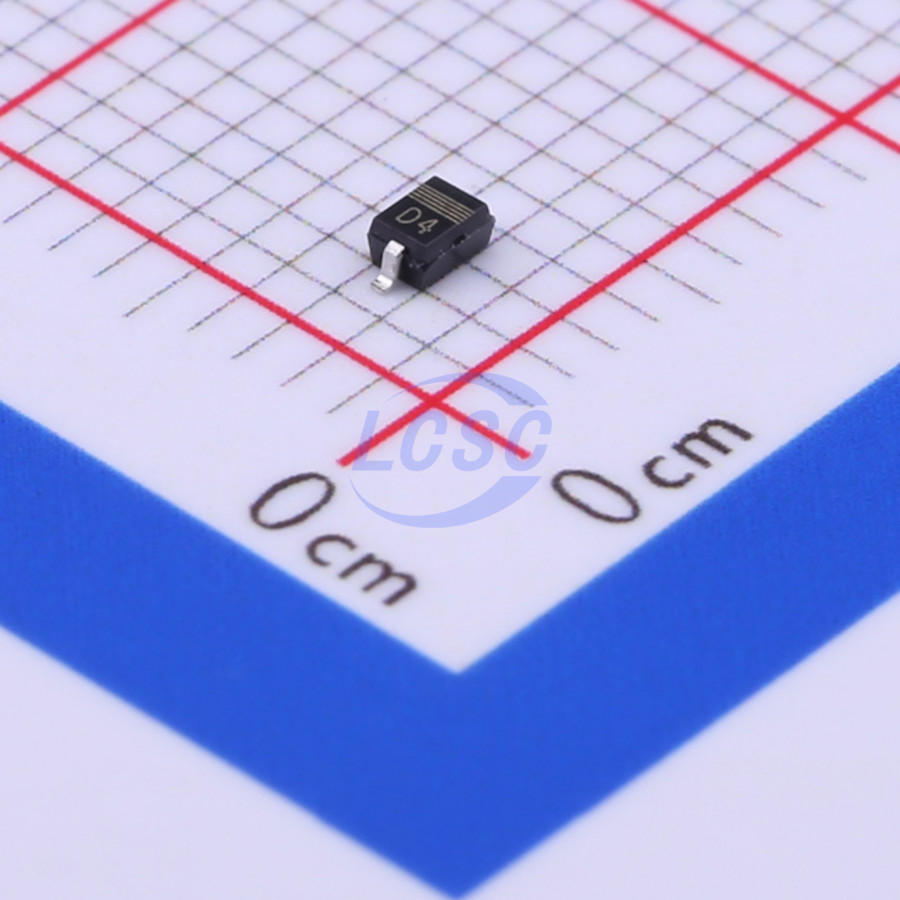

BAS416,115
Diode Independent 85V 200mA Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE STANDARD 85V 200mA SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- BAS416,115
- Store part #
- C89953
- Package / case
- SOD-323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,260 in stock
#C89953
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.22 | ₹92.20 |
| 100+ | ₹7.29 | ₹729.00 |
| 300+ | ₹6.31 | ₹1,893.00 |
| 3,000+ | ₹5.52 | ₹16,560.00 |
| 6,000+ | ₹4.93 | ₹29,580.00 |
| 9,000+ | ₹4.64 | ₹41,760.00 |
10 × ₹9.22
₹92.20
excl. GST
₹108.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAS416,115
₹92.20 for 10 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 85V
- Diode Configuration
- Standalone
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 5nA
- Non-Repetitive Peak Forward Surge Current
- 4A
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
Epitaxial, medium-speed switching diode with a low leakage current encapsulated in a small SOD323 SMD plastic package.
Applications
- Low-leakage current applications in surface mounted circuits.
Key features
- Plastic SMD package
- Low leakage current: typ. 3 pA
- Switching time: typ. 0.8 us
- Continuous reverse voltage: max. 75 V
- Repetitive peak reverse voltage: max. 85 V
- Repetitive peak forward current: max. 500 mA
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S1MD3#C908223FUXINSEMI · SOD-323 | FUXINSEMI | SOD-323 | 6,340 | ₹3.82 · 6,340 in stock | View |
 | BAS321,115#C24372Nexperia · SOD-323 | Nexperia | SOD-323 | 89,950 | ₹2.38 · 89,950 in stock | View |
 | BAS321/8F#C549225Nexperia · SOD-323 | Nexperia | SOD-323 | 35 | ₹21.51 · 35 in stock | View |
 | 1N4007WS#C2980838Slkor · SOD-323 | Slkor | SOD-323 | 3,200 | ₹2.71 · 3,200 in stock | View |
 | MMDL914#C2910101JSCJ · SOD-323 | JSCJ | SOD-323 | 2,800 | ₹3.68 · 2,800 in stock | View |
