HXY MOSFETDatasheet (PDF)

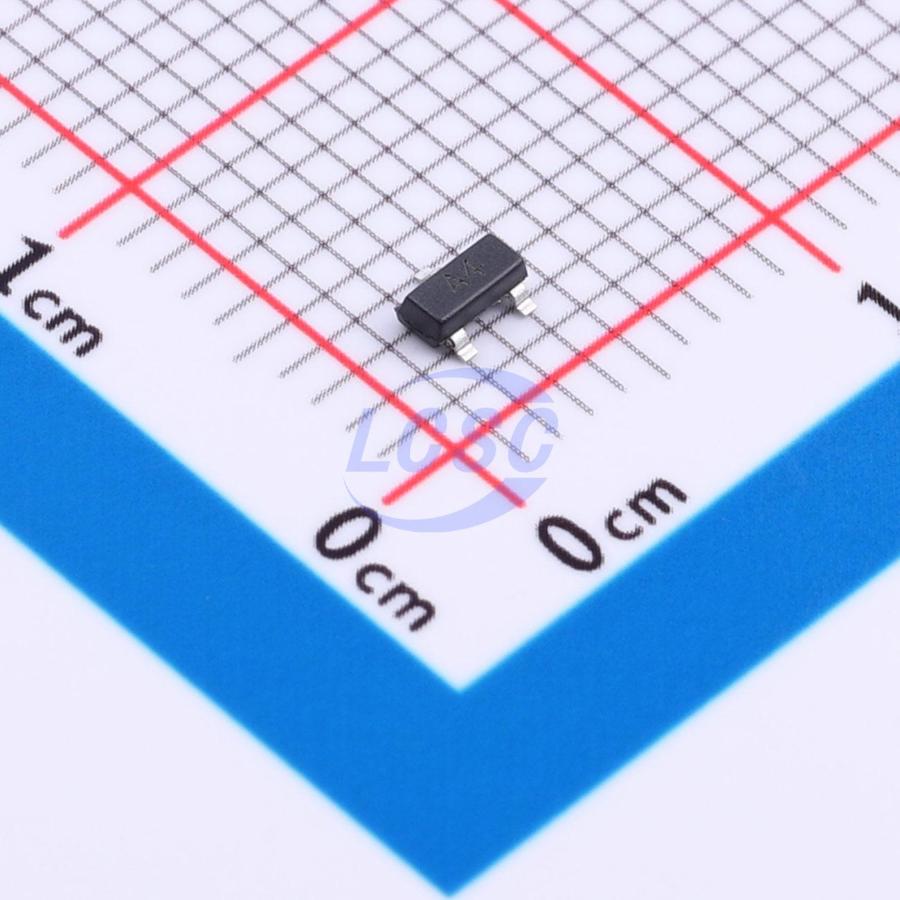

BAS70-05Q-13-F-HXY
6ns 1 Pair Common Cathode 70V 1.25V@150mA 200mA SOT-23 Single Diodes
SOT-23RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BAS70-05Q-13-F-HXY
- Store part #
- C52754625
- Package / case
- SOT-23
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
160 in stock
#C52754625
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.06 | ₹110.60 |
| 100+ | ₹9.19 | ₹919.00 |
| 300+ | ₹8.27 | ₹2,481.00 |
| 3,000+ | ₹6.88 | ₹20,640.00 |
| 6,000+ | ₹6.32 | ₹37,920.00 |
| 9,000+ | ₹6.05 | ₹54,450.00 |
10 × ₹11.06
₹110.60
excl. GST
₹130.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAS70-05Q-13-F-HXY
₹110.60 for 10 + GST
Specifications
- Reverse Recovery Time (trr)
- 6ns
- Diode Configuration
- 1 Pair Common Cathode
- Voltage - DC Reverse (Vr) (Max)
- 70V
- Pd - Power Dissipation
- 225mW
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 2.5uA@70V
- Non-Repetitive Peak Forward Surge Current
- 2A
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
Key features
- Forward current I_F = 200mA, power dissipation 225mW
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAV70LT1G-HXY#C50176902HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 3,000 | ₹2.21 · 3,000 in stock | View |
 | BAV70#C5184417HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 3,280 | ₹1.44 · 3,280 in stock | View |
 | BAS70-05-G3-08-HXY#C52754637HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 145 | ₹13.24 · 145 in stock | View |
