DIODESDatasheet (PDF)

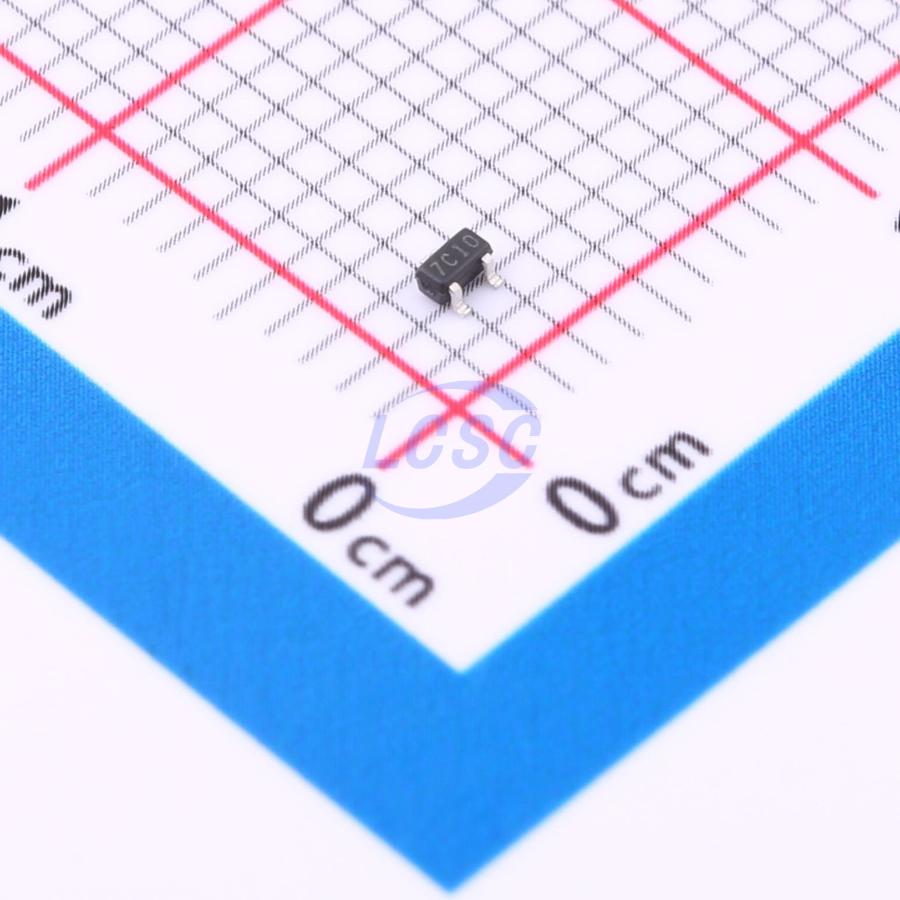

BAS70T-7-F
1 Independent 70V 1V@15mA 70mA SC-75(SOT-523) Single Diodes RoHS
SC-75(SOT-523)ROHS3 CompliantActive
Voltage： 70V Current： 70mA
- Manufacturer
- DIODES
- Manufacturer part #
- BAS70T-7-F
- Store part #
- C134386
- Package / case
- SC-75(SOT-523)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C134386
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.69 | ₹138.45 |
| 50+ | ₹27.29 | ₹1,364.50 |
| 150+ | ₹27.04 | ₹4,056.00 |
| 500+ | ₹26.78 | ₹13,390.00 |
5 × ₹27.69
₹138.45
excl. GST
₹163.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAS70T-7-F
₹138.45 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+125℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 70V
- Pd - Power Dissipation
- 150mW
- Voltage - Forward(Vf@If)
- 1V@15mA
- Reverse Leakage Current (Ir)
- 100nA@50V
- Non-Repetitive Peak Forward Surge Current
- 100mA
- Current - Rectified
- 70mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
Key features
- Low forward voltage
- Fast switching
- PN junction guard ring for transient and ESD protection
- Ultra-compact SMT package
- Fully lead-free and fully RoHS compliant
- Halogen and antimony-free, "Green" device
