DIODESDatasheet (PDF)

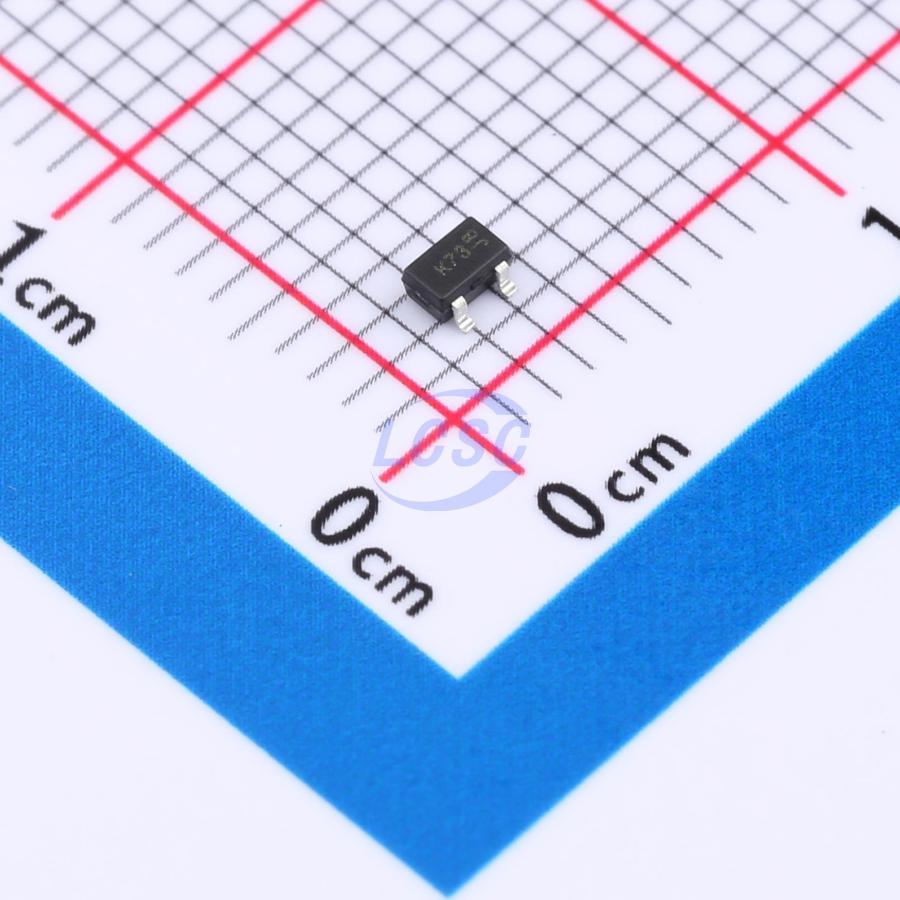

BAS70W-7-F
1 Independent 70V 1V@15mA 70mA SOT-323(SC-70) Single Diodes RoHS
SOT-323(SC-70)ROHS CompliantActive
Voltage: 70V Current: 70mA
- Manufacturer
- DIODES
- Manufacturer part #
- BAS70W-7-F
- Store part #
- C134388
- Package / case
- SOT-323(SC-70)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,310 in stock
#C134388
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.06 | ₹80.30 |
| 50+ | ₹12.85 | ₹642.50 |
| 150+ | ₹11.25 | ₹1,687.50 |
| 500+ | ₹10.04 | ₹5,020.00 |
| 3,000+ | ₹9.08 | ₹27,240.00 |
| 6,000+ | ₹8.60 | ₹51,600.00 |
5 × ₹16.06
₹80.30
excl. GST
₹94.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAS70W-7-F
₹80.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 70V
- Voltage - Forward(Vf@If)
- 1V@15mA
- Reverse Leakage Current (Ir)
- 100nA@50V
- Non-Repetitive Peak Forward Surge Current
- 100mA
- Current - Rectified
- 70mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Key features
- Low Turn-on Voltage
- Fast Switching
- PN Junction Guard Ring for Transient and ESD Protection
- Ultra-Small Surface Mount Package
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- An Automotive-Compliant Part is Available Under Separate Datasheet
