VISHAYDatasheet (PDF)

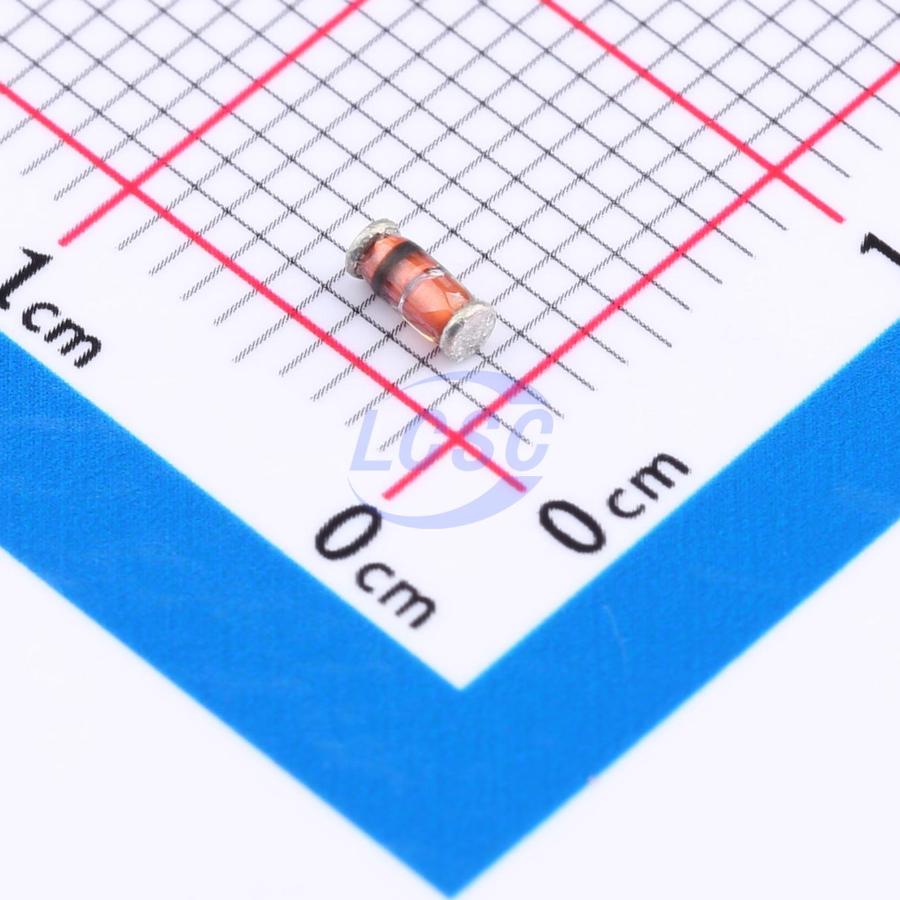

BAS83-GS08
Diode 1 Independent 60V 30mA Surface Mount MiniMELF
MiniMELFROHS3 CompliantActive
DIODE SCHOTTKY 60V MiniMELF
- Manufacturer
- VISHAY
- Manufacturer part #
- BAS83-GS08
- Store part #
- C3009012
- Package / case
- MiniMELF
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,035 in stock
#C3009012
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.52 | ₹117.60 |
| 50+ | ₹19.86 | ₹993.00 |
| 150+ | ₹18.02 | ₹2,703.00 |
| 500+ | ₹16.64 | ₹8,320.00 |
| 2,500+ | ₹14.33 | ₹35,825.00 |
| 5,000+ | ₹13.77 | ₹68,850.00 |
5 × ₹23.52
₹117.60
excl. GST
₹138.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BAS83-GS08
₹117.60 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 1V@15mA
- Reverse Leakage Current (Ir)
- 200nA@60V
- Non-Repetitive Peak Forward Surge Current
- 500mA
- Current - Rectified
- 30mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
Applications
- HF - detector
- Protection circuit
- Diode for low currents with a low supply voltage
- Small battery charger
- Power supplies
- DC/DC converter for notebooks
Key features
- Integrated protection ring against static discharge
- Low capacitance
- Low leakage current
- Low forward voltage drop
- Very low switching time
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LL41-GS08#C3313141VISHAY · MiniMELF | VISHAY | MiniMELF | 415 | ₹13.06 · 415 in stock | View |
 | LL46-GS08#C5342958VISHAY · SOD-80 | VISHAY | SOD-80 | 4,130 | ₹16.83 · 4,130 in stock | View |
 | LL101A-GS08#C3000831VISHAY · MiniMELF | VISHAY | MiniMELF | 330 | ₹14.61 · 330 in stock | View |
 | TMMBAT41FILM#C283272ST · MiniMELF | ST | MiniMELF | 3,525 | ₹10.19 · 3,525 in stock | View |
| BAS283-GS18#C5557750VISHAY · SOD-80QuadroMELF | VISHAY | SOD-80QuadroMELF | On request | ₹16.01 · 0 in stock | View | |
