NexperiaDatasheet (PDF)

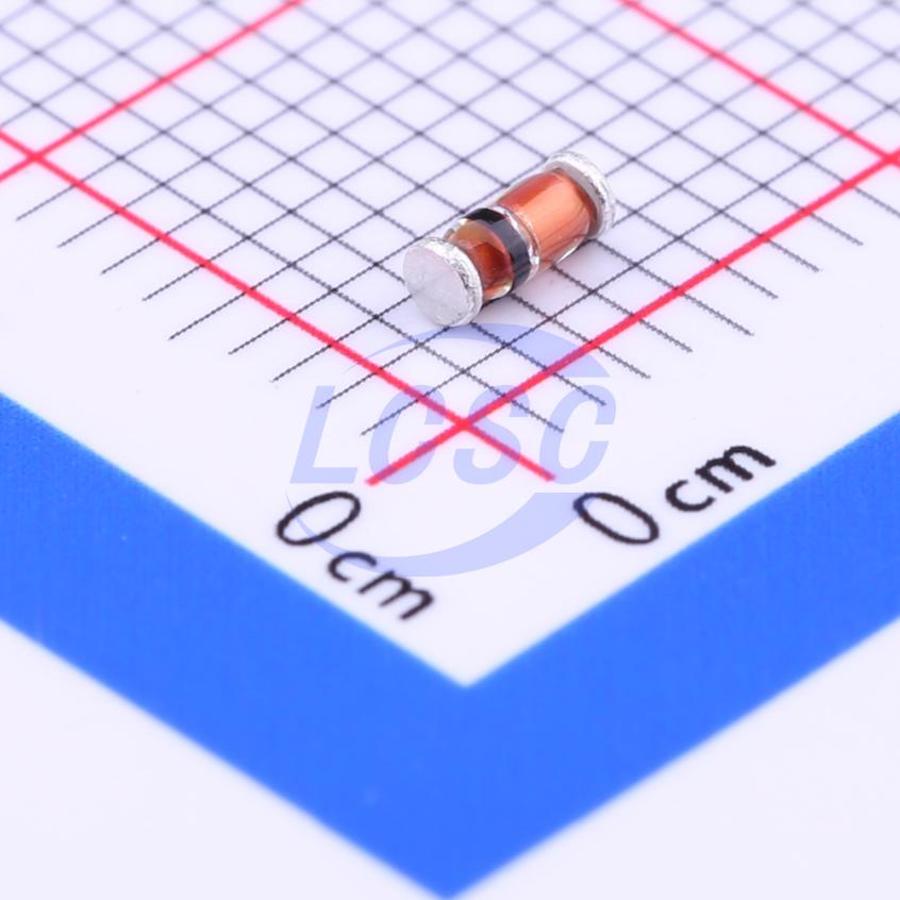

BAS85,115
Diode 1 Independent 30V 200mA Surface Mount MiniMELF
MiniMELFROHS3 CompliantDiscontinued
DIODE SCHOTTKY 30V MiniMELF
- Manufacturer
- Nexperia
- Manufacturer part #
- BAS85,115
- Store part #
- C46677
- Package / case
- MiniMELF
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C46677
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.06 | ₹140.30 |
| 50+ | ₹22.04 | ₹1,102.00 |
| 150+ | ₹19.46 | ₹2,919.00 |
| 500+ | ₹16.25 | ₹8,125.00 |
| 2,500+ | ₹14.82 | ₹37,050.00 |
| 5,000+ | ₹13.96 | ₹69,800.00 |
5 × ₹28.06
₹140.30
excl. GST
₹165.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BAS85,115
₹140.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 800mV@100mA
- Reverse Leakage Current (Ir)
- 2.3uA@25V
- Non-Repetitive Peak Forward Surge Current
- 5A
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a small hermetically sealed glass SOD80C Surface- Mounted Device SMD package with tin- plated metal discs at each end. It is suitable for "automatic placement" and as such it can withstand immersion soldering.
Applications
- Ultra high-speed switching
- Voltage clamping
- Protection circuits
- Blocking diodes
Key features
- Low forward voltage
- High breakdown voltage
- Guard-ring protected
- Hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAS85#C25170730YONGYUTAI · LL-34 | YONGYUTAI | LL-34 | 2,220 | ₹3.07 · 2,220 in stock | View |
 | BAS85,115-JSM#C49364672JSMSEMI · LL-34 | JSMSEMI | LL-34 | 1,360 | ₹1.93 · 1,360 in stock | View |
 | BAS85-JSM#C49369795JSMSEMI · LL-34 | JSMSEMI | LL-34 | 2,240 | ₹3.65 · 2,240 in stock | View |
 | BAS86#C27975281LGE · MiniMELF | LGE | MiniMELF | 1,880 | ₹7.40 · 1,880 in stock | View |
 | BAS86,115#C426767Nexperia · MiniMELF | Nexperia | MiniMELF | 2,495 | ₹31.88 · 2,495 in stock | View |
