VISHAYDatasheet (PDF)

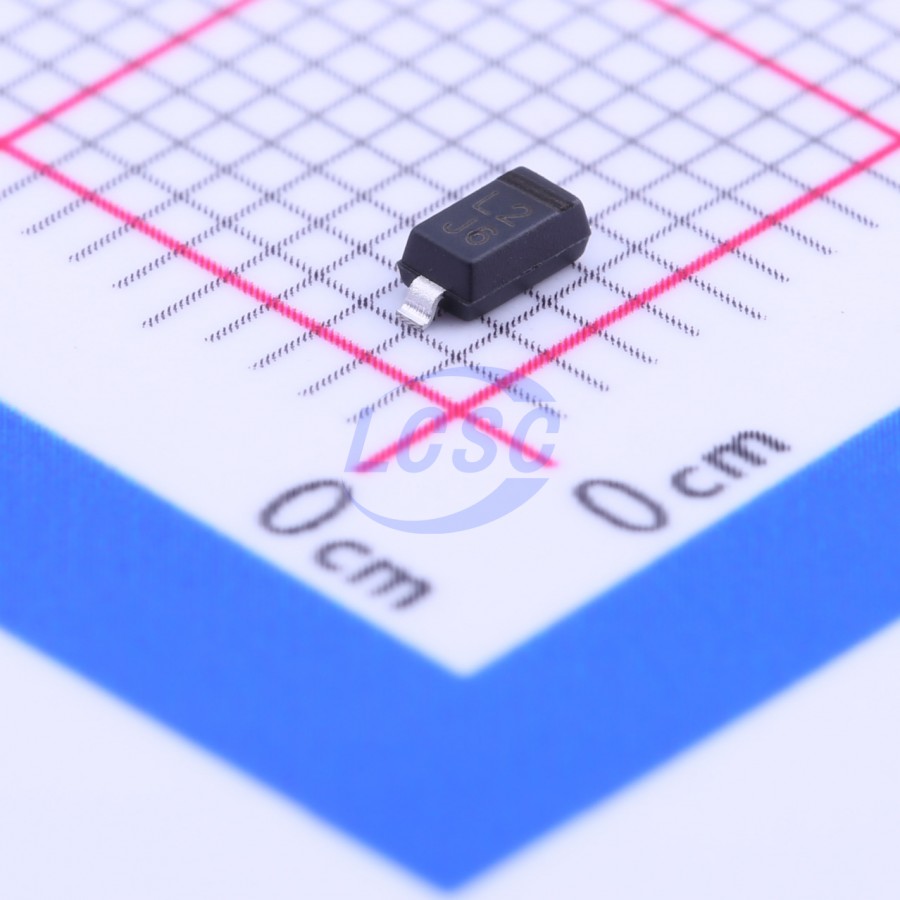

BAT42W-E3-08
Diode 1 Independent 30V 200mA Surface Mount SOD-123
SOD-123ROHS CompliantActive
DIODE SCHOTTKY 30V SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BAT42W-E3-08
- Store part #
- C144923
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C144923
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.55 | ₹117.75 |
| 50+ | ₹18.65 | ₹932.50 |
| 150+ | ₹16.55 | ₹2,482.50 |
| 500+ | ₹13.93 | ₹6,965.00 |
| 3,000+ | ₹11.01 | ₹33,030.00 |
| 6,000+ | ₹10.32 | ₹61,920.00 |
5 × ₹23.55
₹117.75
excl. GST
₹138.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAT42W-E3-08
₹117.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 650mV@50mA
- Reverse Leakage Current (Ir)
- 500nA@25V
- Non-Repetitive Peak Forward Surge Current
- 4A
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Key features
- These diodes feature very low turn- on voltage and fast switching.
- These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges
- For general purpose applications
- AEC- Q101 qualified
- Base P/N- E3 - RoHS- compliant, commercial grade
- Base P/N- HE3 - RoHS- compliant, AEC- Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RB168MM-40TFTR#C3758797ROHM · SOD-123F | ROHM | SOD-123F | 2,985 | ₹21.98 · 2,985 in stock | View |
 | BAT42W-7-F#C134396DIODES · SOD-123 | DIODES | SOD-123 | 13,425 | ₹11.38 · 13,425 in stock | View |
 | BAT43W-7-F#C134398DIODES · SOD-123 | DIODES | SOD-123 | 21,980 | ₹9.76 · 21,980 in stock | View |
 | BAT43W#C19167JSCJ · SOD-123 | JSCJ | SOD-123 | 9,540 | ₹3.76 · 9,540 in stock | View |
 | BAT43W_R1_00001#C282264PANJIT · SOD-123 | PANJIT | SOD-123 | 60 | ₹3.84 · 60 in stock | View |
