VISHAYDatasheet (PDF)

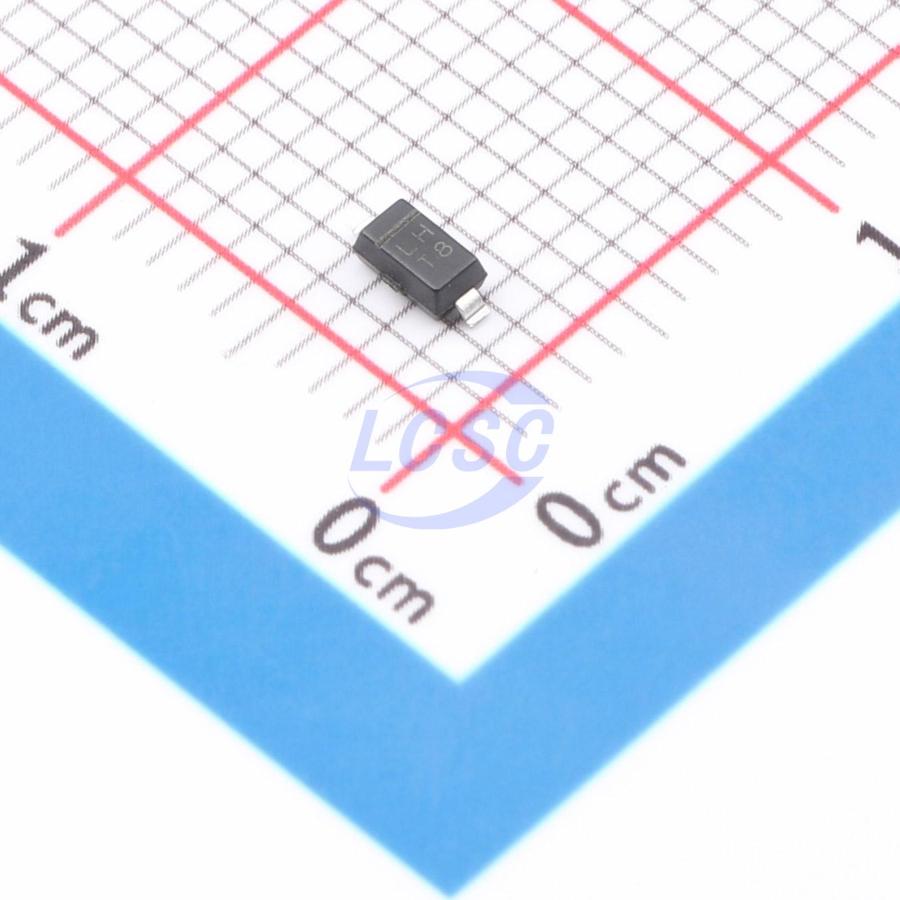

BAT46W-E3-18
1 Independent 100V 1V@250mA 150mA SOD-123 Single Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BAT46W-E3-18
- Store part #
- C5557780
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,545 in stock
#C5557780
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.29 | ₹86.45 |
| 50+ | ₹14.34 | ₹717.00 |
| 150+ | ₹12.87 | ₹1,930.50 |
| 500+ | ₹11.76 | ₹5,880.00 |
| 2,500+ | ₹10.88 | ₹27,200.00 |
| 5,000+ | ₹10.44 | ₹52,200.00 |
5 × ₹17.29
₹86.45
excl. GST
₹102.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BAT46W-E3-18
₹86.45 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 1V@250mA
- Reverse Leakage Current (Ir)
- 5uA@75V
- Non-Repetitive Peak Forward Surge Current
- 750mA
- Current - Rectified
- 150mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Key features
- For general-purpose applications
- Very low forward voltage drop and fast switching characteristics
- PN junction guard ring for overvoltage protection such as ESD
- AEC-Q101 qualification available
- RoHS compliant, commercial grade
- RoHS compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAT46W-E3-08#C14099VISHAY · SOD-123 | VISHAY | SOD-123 | 24,680 | ₹25.84 · 24,680 in stock | View |
 | BAT46W#C49238156Guangdong Hottech · SOD-123 | Guangdong Hottech | SOD-123 | 1,240 | ₹3.31 · 1,240 in stock | View |
 | BAT46W#C5189259TWGMC · SOD-123 | TWGMC | SOD-123 | 2,800 | ₹2.34 · 2,800 in stock | View |
 | TPB02A100-123#C52146052TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 3,000 | ₹3.36 · 3,000 in stock | View |
 | BAT46ZFILM#C52146053TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 820 | ₹2.86 · 820 in stock | View |
