NexperiaDatasheet (PDF)

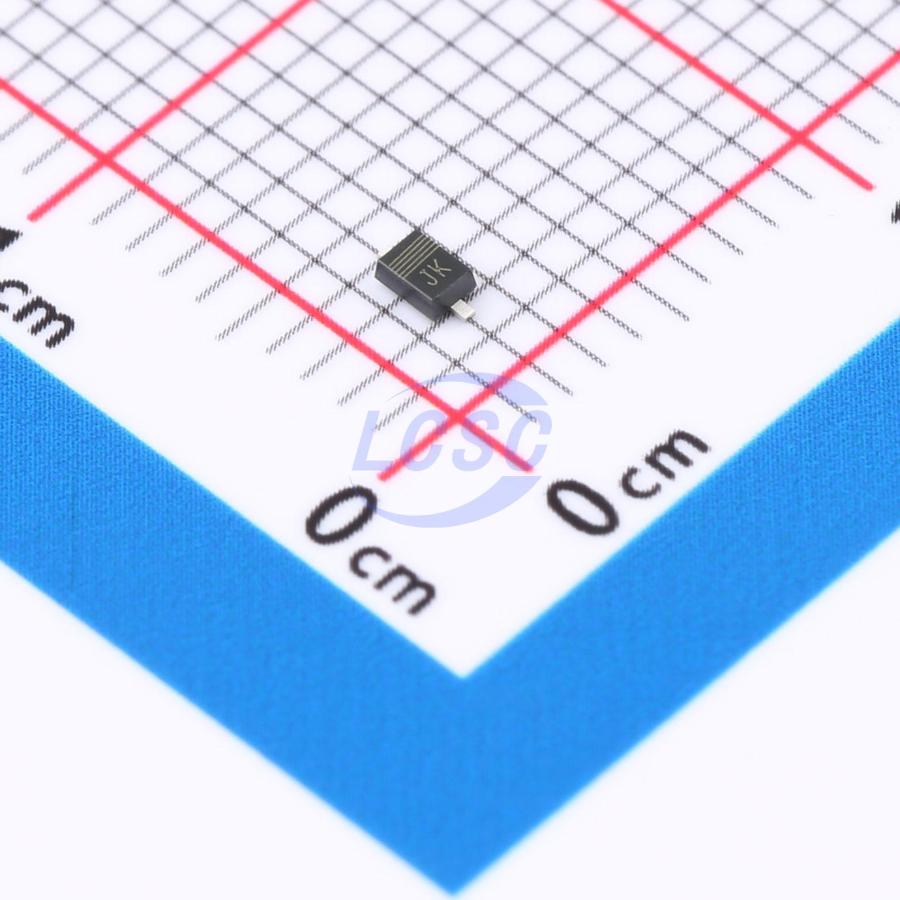

BAT46WJ,115
Diode 100V 250mA Surface Mount SOD-323F
PopularSOD-323FROHS3 CompliantActive
DIODE SCHOTTKY 100V SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- BAT46WJ,115
- Store part #
- C114696
- Package / case
- SOD-323F
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,12,955 in stock
#C114696
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.10 | ₹100.50 |
| 50+ | ₹15.80 | ₹790.00 |
| 150+ | ₹13.88 | ₹2,082.00 |
| 500+ | ₹12.45 | ₹6,225.00 |
| 3,000+ | ₹11.87 | ₹35,610.00 |
| 6,000+ | ₹11.48 | ₹68,880.00 |
5 × ₹20.10
₹100.50
excl. GST
₹118.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAT46WJ,115
₹100.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 850mV@250mA
- Reverse Leakage Current (Ir)
- 9uA@100V
- Non-Repetitive Peak Forward Surge Current
- 2.5A
- Current - Rectified
- 250mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.009 g
Overview
Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a very small and flat lead SOD323F (SC- 90) Surface- Mounted Device (SMD) plastic package.
Applications
- High- speed switching
- Line termination
- Voltage clamping
- Reverse polarity protection
Key features
- Low forward voltage
- Reverse voltage VR ≤ 100 V
- Very small and flat lead SMD plastic package
- Low capacitance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAT46WJ-QX#C5455718Nexperia · SOD-323F | Nexperia | SOD-323F | 20,545 | ₹29.70 · 20,545 in stock | View |
 | BAT46W#C41419051GOODWORK · SOD-123 | GOODWORK | SOD-123 | 2,250 | ₹2.77 · 2,250 in stock | View |
 | BAT46WS#C908225FUXINSEMI · SOD-323 | FUXINSEMI | SOD-323 | 67,150 | ₹2.33 · 67,150 in stock | View |
 | BAS100CS#C33127070FUXINSEMI · SOD-323 | FUXINSEMI | SOD-323 | 9,300 | ₹3.85 · 9,300 in stock | View |
 | RB168VYM100FHTRF#C33127071FUXINSEMI · SOD-323 | FUXINSEMI | SOD-323 | 430 | ₹7.62 · 430 in stock | View |
