HXY MOSFETDatasheet (PDF)

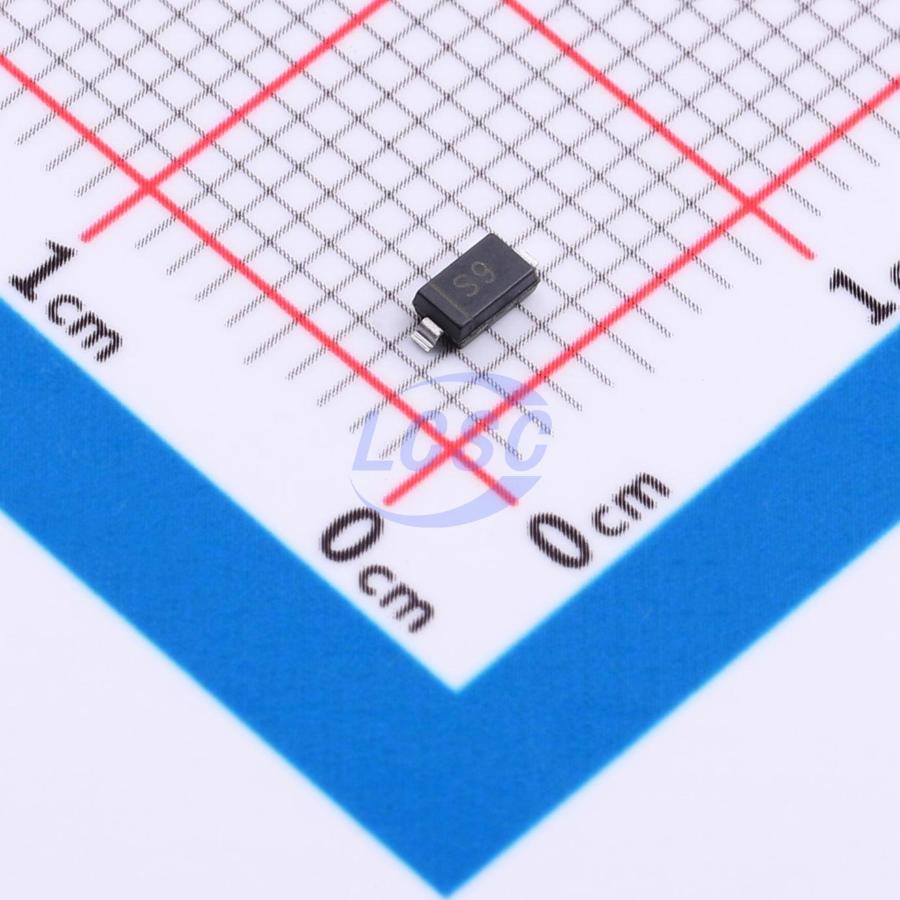

BAT46ZFILM-HXY
100V 1 Independent 1V@250mA 150mA SOD-123 Single Diodes
SOD-123RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BAT46ZFILM-HXY
- Store part #
- C52988737
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
160 in stock
#C52988737
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.75 | ₹67.50 |
| 100+ | ₹5.36 | ₹536.00 |
| 300+ | ₹4.66 | ₹1,398.00 |
| 3,000+ | ₹4.14 | ₹12,420.00 |
| 6,000+ | ₹3.72 | ₹22,320.00 |
| 9,000+ | ₹3.51 | ₹31,590.00 |
10 × ₹6.75
₹67.50
excl. GST
₹79.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAT46ZFILM-HXY
₹67.50 for 10 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1V@250mA
- Reverse Leakage Current (Ir)
- 2uA@75V
- Non-Repetitive Peak Forward Surge Current
- 750mA
- Current - Rectified
- 150mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Key features
- Forward continuous current: IF = 150mA
- Power dissipation: 500mW
