JSMSEMIDatasheet (PDF)

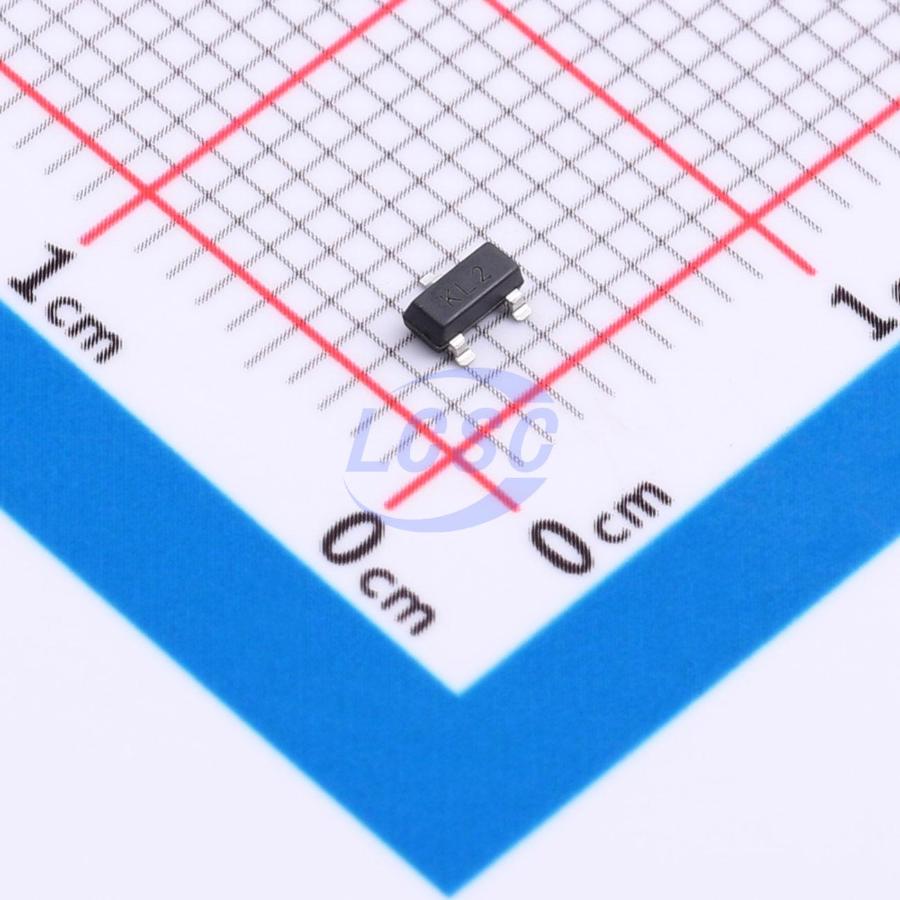

BAT54A,215-JSM
1 Pair Common Anode 30V 800mV@100mA 200mA SOT-23 Single Diodes RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- BAT54A,215-JSM
- Store part #
- C53113875
- Package / case
- SOT-23
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,800 in stock
#C53113875
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.53 | ₹76.50 |
| 500+ | ₹1.22 | ₹610.00 |
| 3,000+ | ₹1.03 | ₹3,090.00 |
| 6,000+ | ₹0.9261 | ₹5,556.60 |
| 24,000+ | ₹0.7806 | ₹18,734.40 |
| 51,000+ | ₹0.7276 | ₹37,107.60 |
50 × ₹1.53
₹76.50
excl. GST
₹90.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAT54A,215-JSM
₹76.50 for 50 + GST
Specifications
- Diode Configuration
- 1 Pair Common Anode
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 800mV@100mA
- Reverse Leakage Current (Ir)
- 2uA@25V
- Non-Repetitive Peak Forward Surge Current
- 600mA
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.032 g
Overview
Key features
- Fast switching
- Low forward voltage
- PN junction guard ring for transient and ESD protection
- Lead-free version available
- SOT-23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAT54A-JSM#C18189084JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 1,800 | ₹1.53 · 1,800 in stock | View |
 | BAT54A#C916423JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 3,650 | ₹1.28 · 3,650 in stock | View |
 | BAS40-06,215-JSM#C53114214JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 2,850 | ₹2.16 · 2,850 in stock | View |
