DIODESDatasheet (PDF)

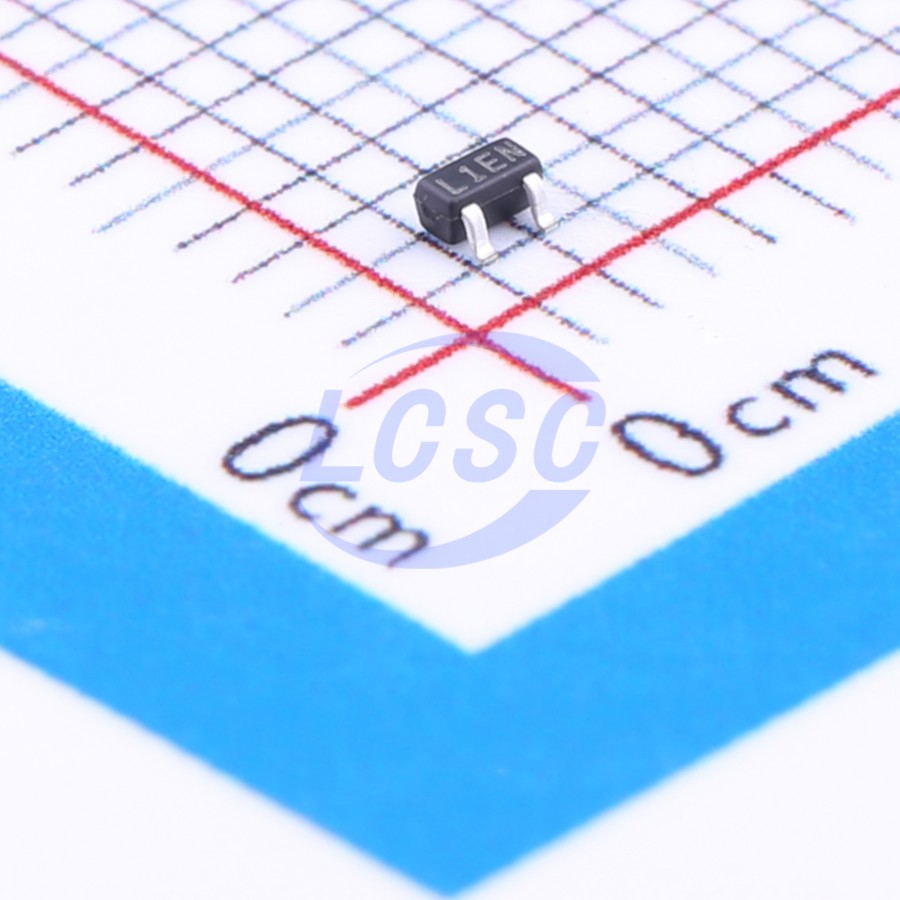

BAT54T-7-F
Diode 30V 200mA Surface Mount SC-75(SOT-523)
SC-75(SOT-523)ROHS3 CompliantActive
DIODE SCHOTTKY 30V SC-75(SOT-523)
- Manufacturer
- DIODES
- Manufacturer part #
- BAT54T-7-F
- Store part #
- C134415
- Package / case
- SC-75(SOT-523)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,930 in stock
#C134415
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.02 | ₹90.10 |
| 50+ | ₹14.29 | ₹714.50 |
| 150+ | ₹12.42 | ₹1,863.00 |
| 500+ | ₹11.02 | ₹5,510.00 |
| 3,000+ | ₹9.90 | ₹29,700.00 |
| 6,000+ | ₹9.34 | ₹56,040.00 |
5 × ₹18.02
₹90.10
excl. GST
₹106.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAT54T-7-F
₹90.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 1V@100mA
- Reverse Leakage Current (Ir)
- 2uA@25V
- Non-Repetitive Peak Forward Surge Current
- 600mA
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
Key features
- Ultra-Small Surface-Mount Package
- Low-Forward Voltage Drop
- Fast Switching
- PN Junction Guard Ring for Transient and ESD Protection
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- An automotive-compliant part is available under separate datasheet (BAT54T4/STQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAT54TQ-7-F#C460166DIODES · SOT-523-3 | DIODES | SOT-523-3 | 1 | ₹31.54 · 1 in stock | View |
 | BAT54T#C968065YANGJIE · SOT-523(SC-75) | YANGJIE | SOT-523(SC-75) | 2,920 | ₹4.35 · 2,920 in stock | View |
 | BAT54T#C261282Tak Cheong · SOT-523 | Tak Cheong | SOT-523 | 2,360 | ₹2.84 · 2,360 in stock | View |
 | BAT54T#C5362114CBI · SOT-523 | CBI | SOT-523 | 1,420 | ₹2.71 · 1,420 in stock | View |
 | BAS40T-7-F#C134367DIODES · SC-75(SOT-523) | DIODES | SC-75(SOT-523) | 2,615 | ₹16.11 · 2,615 in stock | View |
