VISHAYDatasheet (PDF)

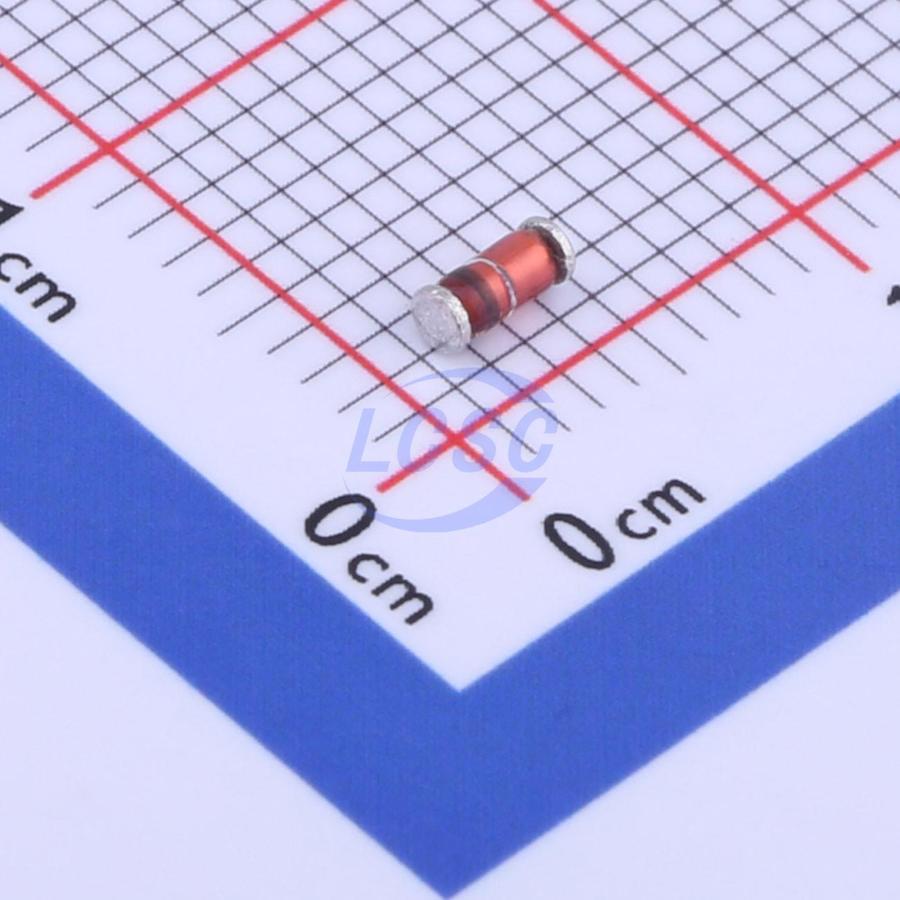

BAV103-GS08
Diode Independent 200V 250mA Surface Mount MiniMELF
MiniMELFROHS3 CompliantActive
DIODE GP 200V 250mA MiniMELF
- Manufacturer
- VISHAY
- Manufacturer part #
- BAV103-GS08
- Store part #
- C917480
- Package / case
- MiniMELF
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
910 in stock
#C917480
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.60 | ₹66.00 |
| 100+ | ₹5.20 | ₹520.00 |
| 300+ | ₹4.50 | ₹1,350.00 |
| 2,500+ | ₹3.97 | ₹9,925.00 |
| 5,000+ | ₹3.55 | ₹17,750.00 |
| 10,000+ | ₹3.33 | ₹33,300.00 |
10 × ₹6.60
₹66.00
excl. GST
₹77.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BAV103-GS08
₹66.00 for 10 + GST
Specifications
- Reverse Recovery Time (trr)
- 50ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Pd - Power Dissipation
- 500mW
- Voltage - Forward(Vf@If)
- 1V@100mA
- Reverse Leakage Current (Ir)
- 100nA@200V
- Non-Repetitive Peak Forward Surge Current
- 1A
- Current - Rectified
- 250mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.052 g
Overview
Applications
- General purposes
Key features
- Silicon epitaxial planar diode
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAV203-GS08#C7279888VISHAY · QUAdroMELF | VISHAY | QUAdroMELF | 1,850 | ₹6.89 · 1,850 in stock | View |
 | BAV103#C49238187Guangdong Hottech · LL-34 | Guangdong Hottech | LL-34 | 3,050 | ₹5.60 · 3,050 in stock | View |
 | BYM07-400-E3/83#C17445519VISHAY · DO-213AA | VISHAY | DO-213AA | 5 | ₹30.43 · 5 in stock | View |
 | RGL34K-E3/98#C4749235VISHAY · DO-213AA | VISHAY | DO-213AA | 1,761 | ₹68.98 · 1,761 in stock | View |
| BAV203-GS18#C17226546VISHAY · QUAdroMELF | VISHAY | QUAdroMELF | On request | ₹8.32 · 0 in stock | View | |
