JSMSEMIDatasheet (PDF)

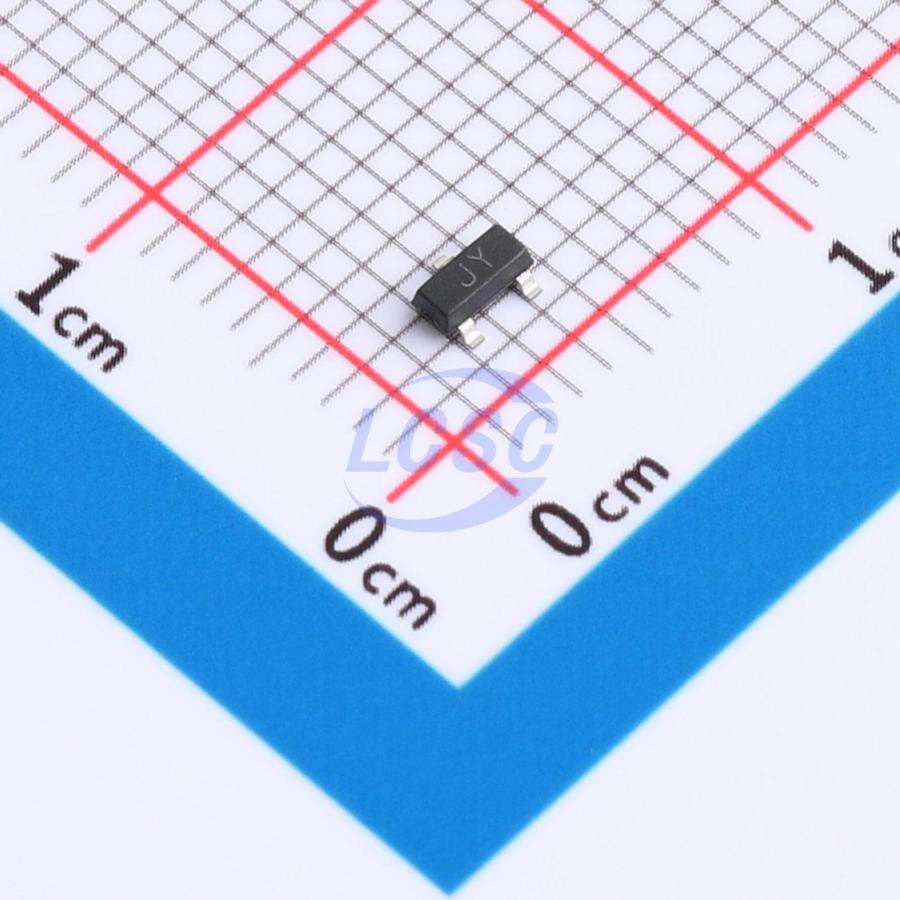

BAV199-JSM
3us 85V 1 Pair Series Connection 1.25V@150mA 140mA SOT-23 Single Diodes RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- BAV199-JSM
- Store part #
- C18195146
- Package / case
- SOT-23
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
650 in stock
#C18195146
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.87 | ₹93.50 |
| 500+ | ₹1.48 | ₹740.00 |
| 3,000+ | ₹1.26 | ₹3,780.00 |
| 6,000+ | ₹1.08 | ₹6,480.00 |
| 24,000+ | ₹0.979 | ₹23,496.00 |
| 51,000+ | ₹0.9129 | ₹46,557.90 |
50 × ₹1.87
₹93.50
excl. GST
₹110.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAV199-JSM
₹93.50 for 50 + GST
Specifications
- Reverse Recovery Time (trr)
- 3us
- Voltage - DC Reverse (Vr) (Max)
- 85V
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Pair Series Connection
- Pd - Power Dissipation
- 250mW
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 5nA
- Current - Rectified
- 140mA
- Non-Repetitive Peak Forward Surge Current
- 4A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.031 g
Overview
Key features
- Ultra-low leakage current
- Medium-speed switching time
- Series pair configuration
- Low-leakage switching dual diode
- Suitable for low-leakage current applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAV199,215-JSM#C53113873JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 4,800 | ₹1.87 · 4,800 in stock | View |
 | BAV23S-JSM#C53113959JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 3,000 | ₹3.84 · 3,000 in stock | View |
 | BAV23S,215-JSM#C53114271JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 1,780 | ₹3.84 · 1,780 in stock | View |
 | MMBD4148SE-JSM#C18189097JSMSEMI · SOT-23-3 | JSMSEMI | SOT-23-3 | 2,200 | ₹1.07 · 2,200 in stock | View |
 | MMBD4148SE#C916436JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 84,850 | ₹1.20 · 84,850 in stock | View |
