DIODESDatasheet (PDF)

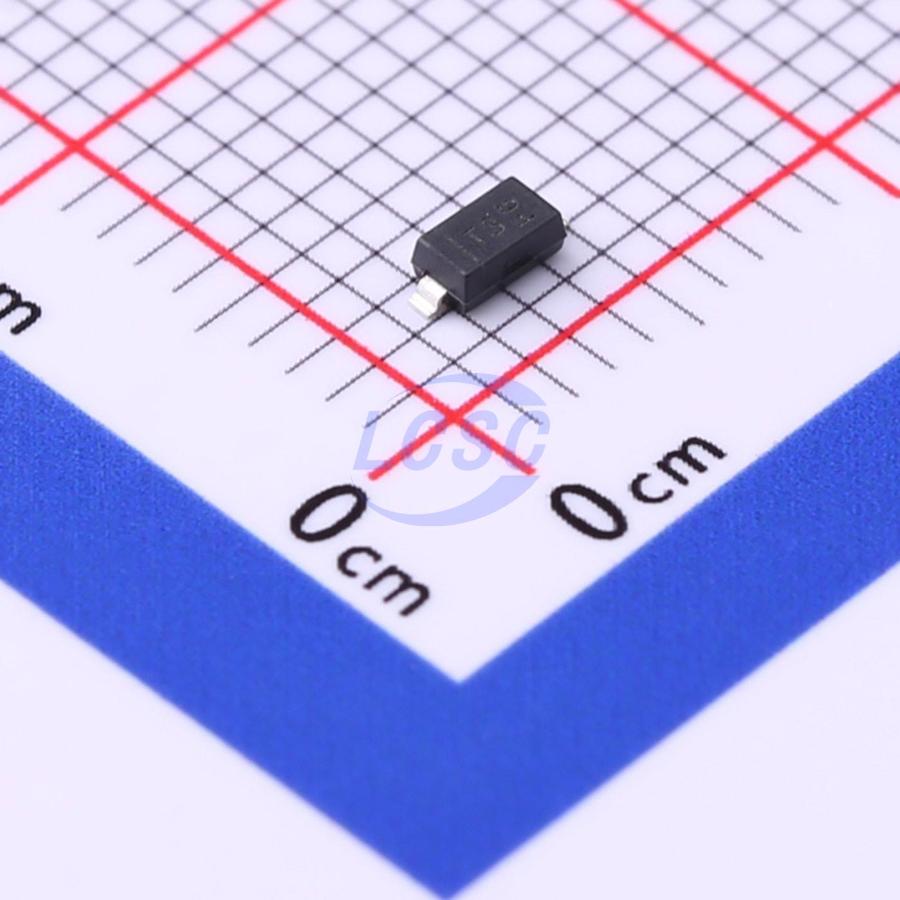

BAV19W-7-F
Diode Independent 100V 200mA Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE GP 100V 200mA SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- BAV19W-7-F
- Store part #
- C459848
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,020 in stock
#C459848
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.95 | ₹69.50 |
| 100+ | ₹5.60 | ₹560.00 |
| 300+ | ₹4.91 | ₹1,473.00 |
| 3,000+ | ₹4.25 | ₹12,750.00 |
| 6,000+ | ₹3.84 | ₹23,040.00 |
| 9,000+ | ₹3.64 | ₹32,760.00 |
10 × ₹6.95
₹69.50
excl. GST
₹82.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAV19W-7-F
₹69.50 for 10 + GST
Specifications
- Reverse Recovery Time (trr)
- 50ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- Standalone
- Pd - Power Dissipation
- 250mW
- Voltage - Forward(Vf@If)
- 1.25V@200mA
- Reverse Leakage Current (Ir)
- 100nA@100V
- Non-Repetitive Peak Forward Surge Current
- 2.5A
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
Key features
- Fast Switching Speed
- Surface Mount Package Ideally Suited for Automated Insertion
- For General Purpose Switching Applications
- High Reverse Breakdown Voltage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- The BAV20WQ and BAV21WQ are suitable for automotive applications requiring specific change control; these parts are AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
