DIODESDatasheet (PDF)

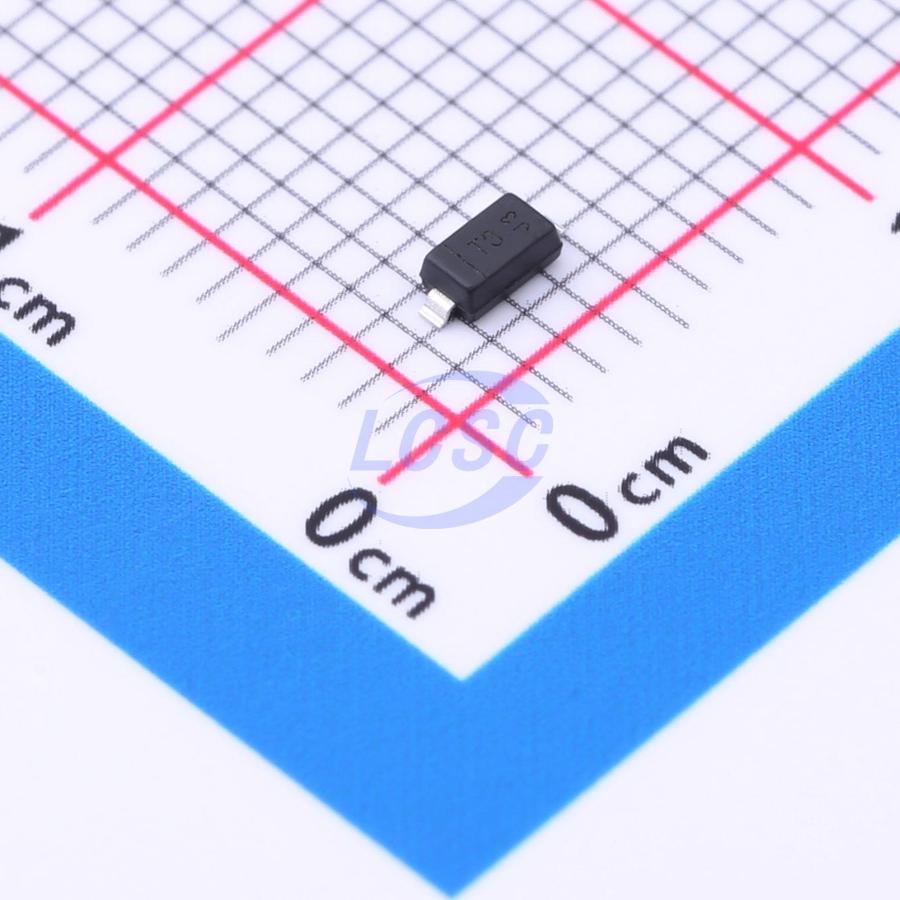

BAV19W
Diode 100V Surface Mount SOD-123
SOD-123ROHS CompliantActive
DIODE GP 100V SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- BAV19W
- Store part #
- C5245010
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C5245010
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.73 | ₹258.65 |
| 50+ | ₹41.77 | ₹2,088.50 |
| 150+ | ₹37.49 | ₹5,623.50 |
| 500+ | ₹32.16 | ₹16,080.00 |
| 3,000+ | ₹28.60 | ₹85,800.00 |
| 6,000+ | ₹27.17 | ₹1,63,020.00 |
5 × ₹51.73
₹258.65
excl. GST
₹305.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per bag
BAV19W
₹258.65 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 50ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 250mW
- Voltage - Forward(Vf@If)
- 1.25V@200mA
- Reverse Leakage Current (Ir)
- 100nA
- Current - Rectified
- 400mA
- Non-Repetitive Peak Forward Surge Current
- 2.5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 3,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
Key features
- Fast Switching Speed
- Surface Mount Package Ideally Suited for Automated Insertion
- For General Purpose Switching Applications
- High Reverse Breakdown Voltage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- The BAV20WQ and BAV21WQ are suitable for automotive applications requiring specific change control; these parts are AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAV21W#C42432514PAKER · SOD-123 | PAKER | SOD-123 | 1,850 | ₹1.89 · 1,850 in stock | View |
 | CFRM104-HF#C17373254Comchip · SOD-123 | Comchip | SOD-123 | 2,395 | ₹20.92 · 2,395 in stock | View |
 | FSM14PL-TP#C17524256MCC · SOD-123FL | MCC | SOD-123FL | 3,500 | ₹11.71 · 3,500 in stock | View |
 | RS1MSWFMQ-7#C19950433DIODES · SOD-123F | DIODES | SOD-123F | 20 | ₹90.28 · 20 in stock | View |
 | P1N4007W#C5162525Shanghai Prisemi Elec · SOD-123FL | Shanghai Prisemi Elec | SOD-123FL | 550 | ₹1.69 · 550 in stock | View |
