DIODESDatasheet (PDF)

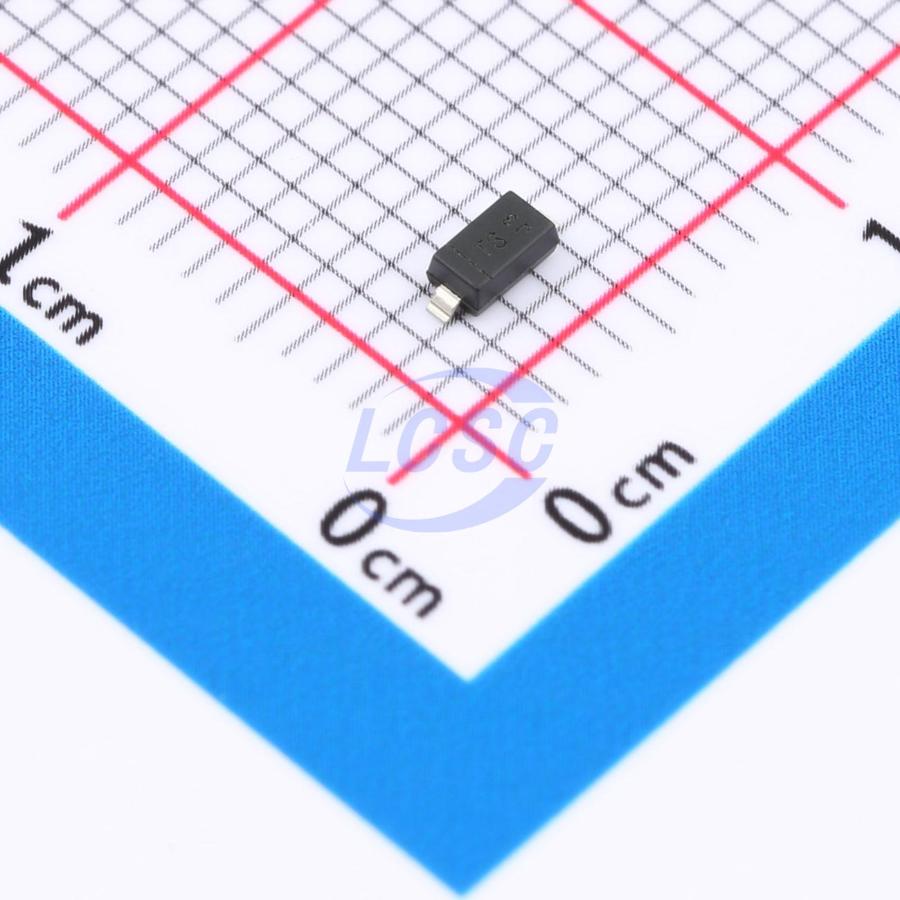

BAV20W-7-F
Diode Independent 200V 200mA Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE GP 200V 200mA SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- BAV20W-7-F
- Store part #
- C260853
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,320 in stock
#C260853
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.20 | ₹151.00 |
| 50+ | ₹23.42 | ₹1,171.00 |
| 150+ | ₹20.51 | ₹3,076.50 |
| 500+ | ₹16.87 | ₹8,435.00 |
| 3,000+ | ₹15.25 | ₹45,750.00 |
| 6,000+ | ₹14.29 | ₹85,740.00 |
5 × ₹30.20
₹151.00
excl. GST
₹178.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAV20W-7-F
₹151.00 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 50ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Pd - Power Dissipation
- 250mW
- Voltage - Forward(Vf@If)
- 1.25V@200mA
- Reverse Leakage Current (Ir)
- 100nA
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Key features
- Fast Switching Speed
- Surface Mount Package Ideally Suited for Automated Insertion
- For General Purpose Switching Applications
- High Reverse Breakdown Voltage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- The BAV20WQ and BAV21WQ are suitable for automotive applications requiring specific change control; these parts are AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAV21W#C115173Shikues · SOD-123 | Shikues | SOD-123 | 300 | ₹2.04 · 300 in stock | View |
 | BAV21W-7-F#C155214DIODES · SOD-123 | DIODES | SOD-123 | 53,600 | ₹14.16 · 53,600 in stock | View |
 | BAV21W#C280368Suzhou Good-Ark Elec · SOD-123 | Suzhou Good-Ark Elec | SOD-123 | 1,880 | ₹2.73 · 1,880 in stock | View |
 | BAV21W#C2919736CBI · SOD-123 | CBI | SOD-123 | 1,600 | ₹1.65 · 1,600 in stock | View |
 | BAS21HT1G#C7422629FUXINSEMI · SOD-123 | FUXINSEMI | SOD-123 | 2,350 | ₹2.13 · 2,350 in stock | View |
