HXY MOSFETDatasheet (PDF)

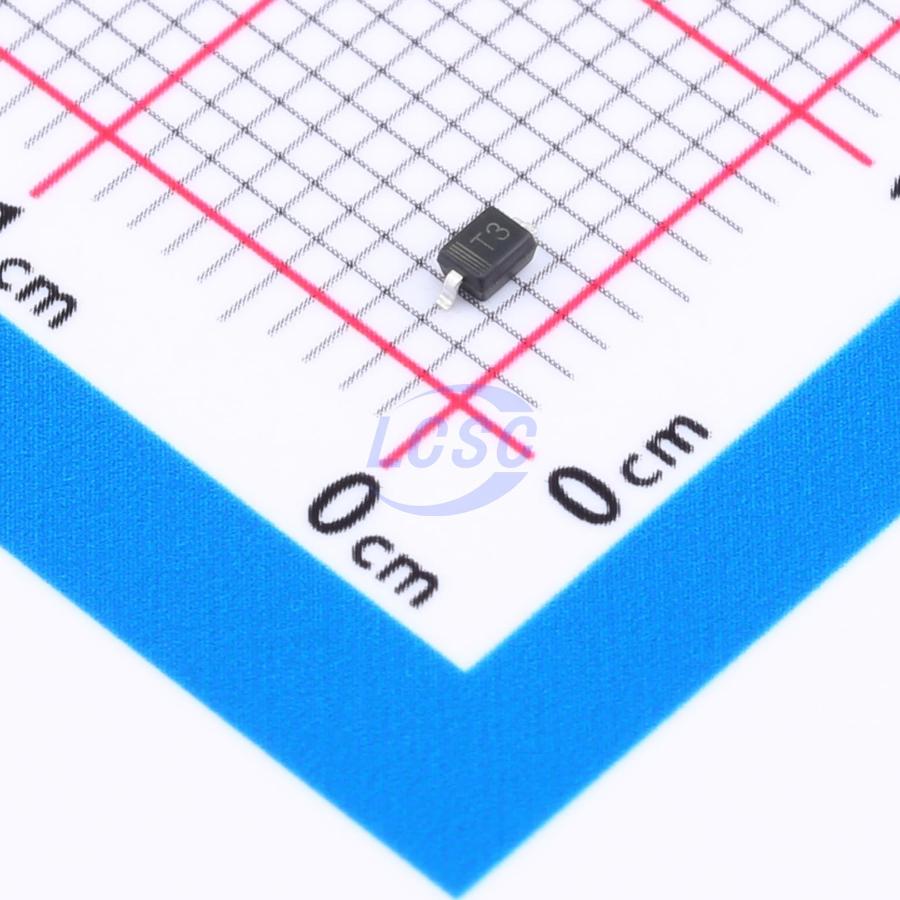

BAV21WS
Diode Independent 200V 200mA Surface Mount SOD-323
SOD-323ROHS CompliantActive
DIODE GP 200V 200mA SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BAV21WS
- Store part #
- C5337184
- Package / case
- SOD-323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
300 in stock
#C5337184
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹1.72 | ₹34.40 |
| 200+ | ₹1.35 | ₹270.00 |
| 600+ | ₹1.14 | ₹684.00 |
| 3,000+ | ₹0.9658 | ₹2,897.40 |
| 9,000+ | ₹0.860 | ₹7,740.00 |
| 21,000+ | ₹0.7938 | ₹16,669.80 |
20 × ₹1.72
₹34.40
excl. GST
₹40.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAV21WS
₹34.40 for 20 + GST
Specifications
- Reverse Recovery Time (trr)
- 50ns
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 250mW
- Voltage - Forward(Vf@If)
- 1.25V@200mA
- Reverse Leakage Current (Ir)
- 100nA@200V
- Non-Repetitive Peak Forward Surge Current
- 2A
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.027 g
Overview
Key features
- Average rectified output current: I0 = 200 mA
- Power dissipation: 250 mW
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HBAV21WSE308#C42389375HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 490 | ₹6.91 · 490 in stock | View |
 | HBAS21VMFHTE17#C42389382HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 350 | ₹2.08 · 350 in stock | View |
 | HBAS321JX#C42389373HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 2,960 | ₹4.22 · 2,960 in stock | View |
 | HBAS321QF#C42389377HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 60 | ₹4.14 · 60 in stock | View |
 | HBAS3218X#C42389378HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 200 | ₹4.50 · 200 in stock | View |
