JSMSEMIDatasheet (PDF)

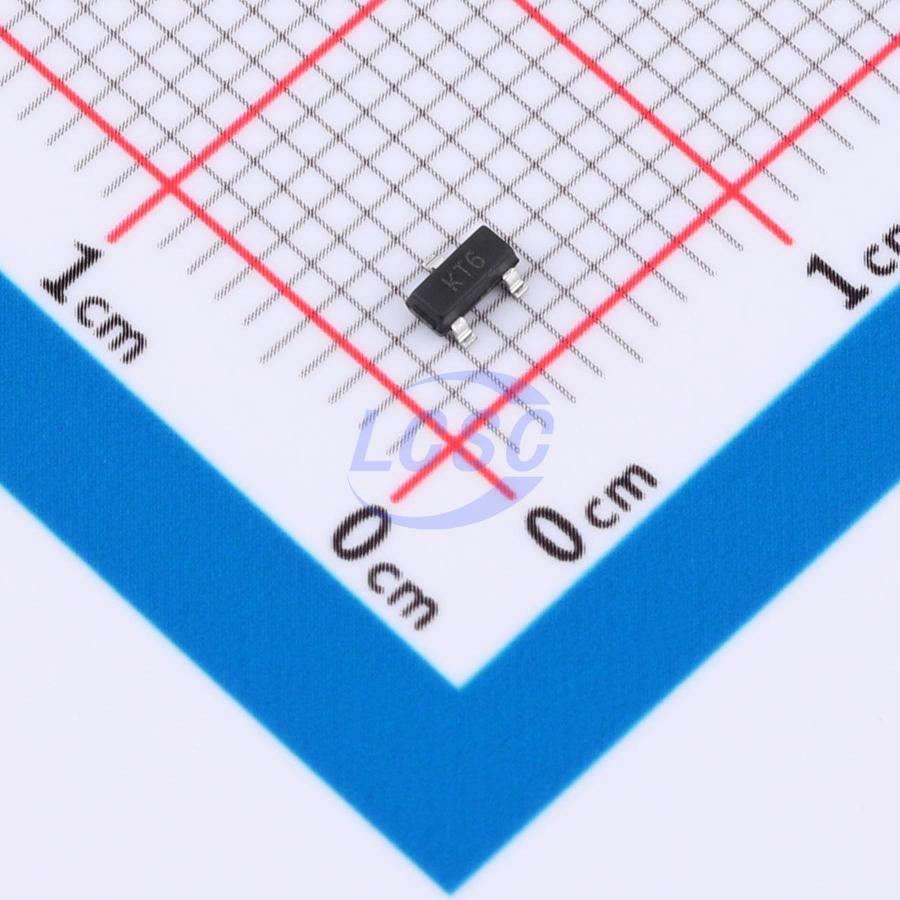

BAV23C-JSM
250V 1 Pair Common Cathode 1.25V@200mA 225mA SOT-23 Single Diodes RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- BAV23C-JSM
- Store part #
- C53114018
- Package / case
- SOT-23
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,120 in stock
#C53114018
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.57 | ₹71.40 |
| 200+ | ₹2.82 | ₹564.00 |
| 600+ | ₹2.41 | ₹1,446.00 |
| 3,000+ | ₹2.16 | ₹6,480.00 |
| 9,000+ | ₹1.83 | ₹16,470.00 |
| 21,000+ | ₹1.71 | ₹35,910.00 |
20 × ₹3.57
₹71.40
excl. GST
₹84.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAV23C-JSM
₹71.40 for 20 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 250V
- Diode Configuration
- 1 Pair Common Cathode
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 350mW
- Voltage - Forward(Vf@If)
- 1.25V@200mA
- Reverse Leakage Current (Ir)
- 100nA@250V
- Current - Rectified
- 225mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.031 g
Overview
Key features
- Fast switching speed
- High conductance
- General-purpose switching applications
