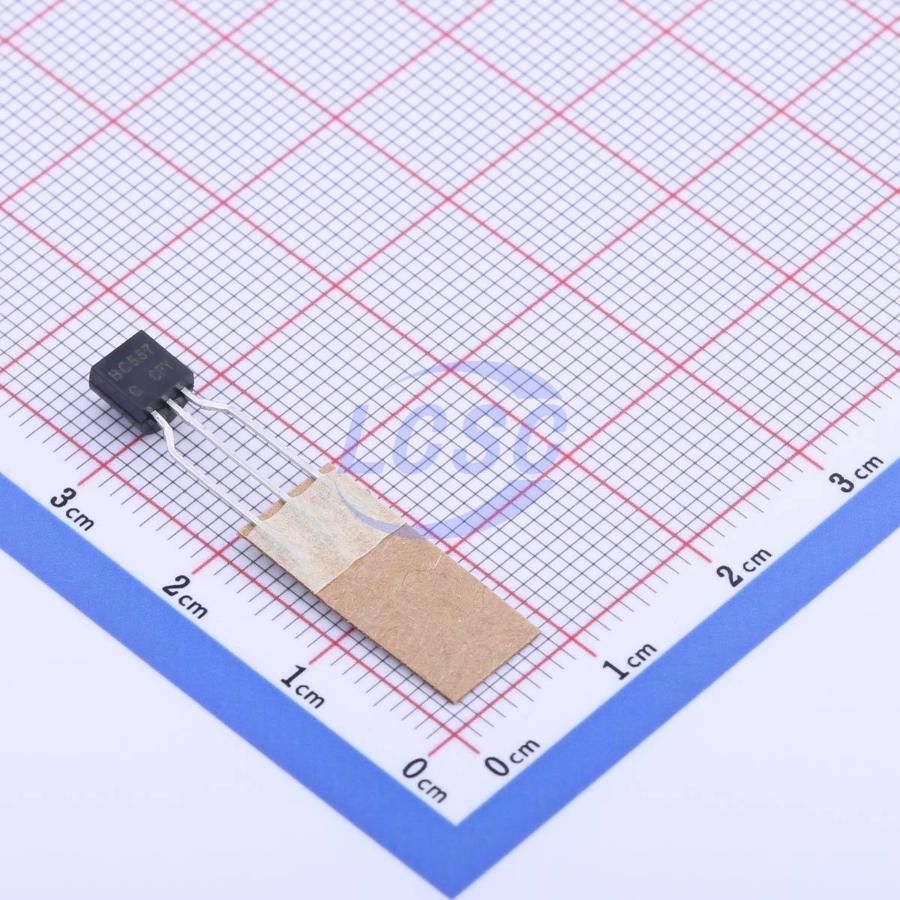

BC557-TA(RANGE:420-800)
Bipolar (BJT) Transistor PNP 45V 0.1A 150MHz 625mW Through Hole TO-92
TO-92ROHS CompliantActive
TRANS PNP 45V 0.1A TO-92
- Manufacturer
- JSCJ
- Manufacturer part #
- BC557-TA(RANGE:420-800)
- Store part #
- C2910397
- Package / case
- TO-92
- Category
- Single Bipolar Transistors
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,400 in stock
#C2910397
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.99 | ₹99.80 |
| 200+ | ₹3.92 | ₹784.00 |
| 600+ | ₹3.32 | ₹1,992.00 |
| 2,000+ | ₹2.84 | ₹5,680.00 |
| 10,000+ | ₹2.53 | ₹25,300.00 |
| 20,000+ | ₹2.37 | ₹47,400.00 |
20 × ₹4.99
₹99.80
excl. GST
₹117.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per box
BC557-TA(RANGE:420-800)
₹99.80 for 20 + GST
Specifications
- Current - Collector Cutoff
- 100nA
- Operating Temperature
- -55℃~+150℃
- Transition frequency(fT)
- 150MHz
- Collector - Emitter Voltage VCEO
- 45V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 420
- Pd - Power Dissipation
- 625mW
- Current - Collector(Ic)
- 100mA
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 650mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Box-packed
- Standard pack
- 2,000 / Box
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.27 g
Overview
Key features
- High Voltage Complement to BC546,BC547,BC548
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BC557(RANGE:420-800)#C180418JSCJ · TO-92 | JSCJ | TO-92 | On request | ₹5.58 · 0 in stock | View |
 | S9015(RANGE:300-400)#C21390JSCJ · TO-92 | JSCJ | TO-92 | 860 | ₹4.67 · 860 in stock | View |
