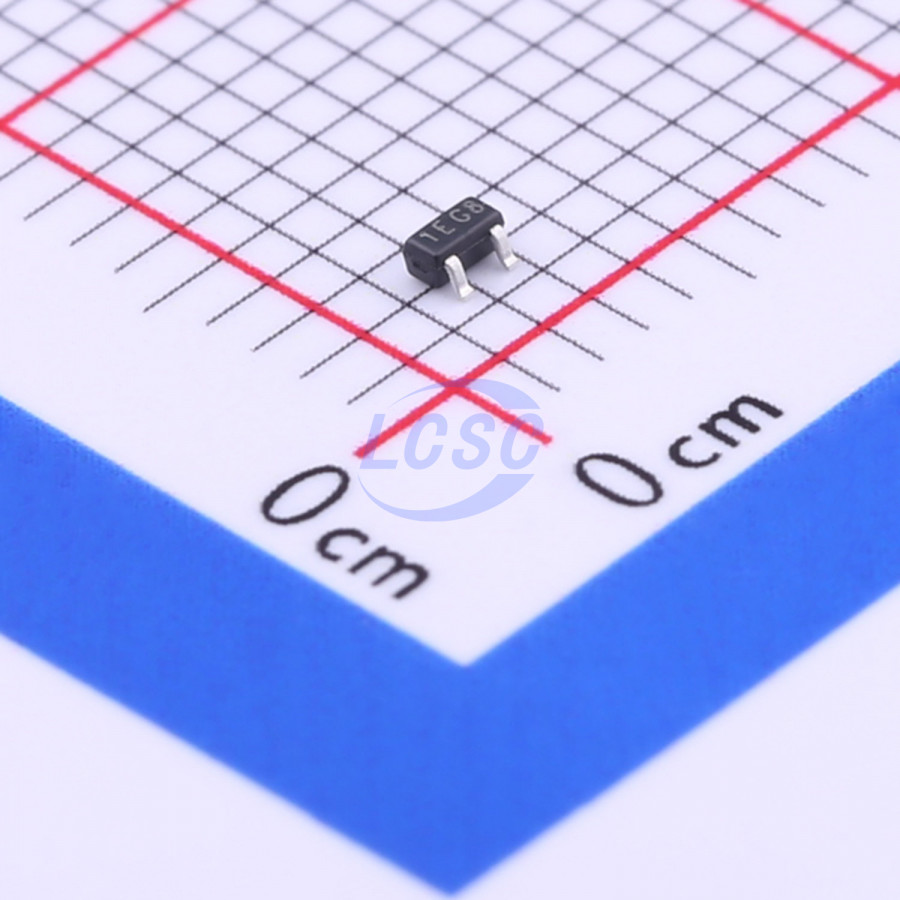

BC847AT-7-F
Bipolar (BJT) Transistor NPN 45V 100mA 100MHz 150mW Surface Mount SOT-523
SOT-523ROHS3 CompliantActive
TRANS NPN 45V 100mA SOT-523
- Manufacturer
- DIODES
- Manufacturer part #
- BC847AT-7-F
- Store part #
- C375697
- Package / case
- SOT-523
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C375697
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.23 | ₹84.60 |
| 200+ | ₹3.35 | ₹670.00 |
| 600+ | ₹2.84 | ₹1,704.00 |
| 3,000+ | ₹2.55 | ₹7,650.00 |
| 9,000+ | ₹2.29 | ₹20,610.00 |
| 21,000+ | ₹2.16 | ₹45,360.00 |
20 × ₹4.23
₹84.60
excl. GST
₹99.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BC847AT-7-F
₹84.60 for 20 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 15nA
- Transition frequency(fT)
- 100MHz
- Collector - Emitter Voltage VCEO
- 45V
- Emitter-Base Voltage VEBO
- 6V
- DC Current Gain
- 110
- Current - Collector(Ic)
- 100mA
- Pd - Power Dissipation
- 150mW
- Configuration
- Standalone
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 600mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.027 g
Overview
Key features
- BVCEO > 45 V
- IC = 100 mA Collector Current
- Epitaxial Planar Die Construction
- Ultra-Small Surface-Mount Package
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- An automotive-compliant part is available under separate datasheet (BC847BTQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BC847BT-7-F#C156332DIODES · SOT-523 | DIODES | SOT-523 | 10,440 | ₹9.12 · 10,440 in stock | View |
 | BC847CT-7-F#C526465DIODES · SOT-523 | DIODES | SOT-523 | 2,090 | ₹7.09 · 2,090 in stock | View |
 | BC847T#C2910266JSCJ · SOT-523 | JSCJ | SOT-523 | 1,320 | ₹3.51 · 1,320 in stock | View |
| BC847BT#C41433817YFW · SOT-523 | YFW | SOT-523 | 2,800 | ₹2.53 · 2,800 in stock | View | |
 | DTC114YE-MS#C3018925MSKSEMI · SOT-523 | MSKSEMI | SOT-523 | 2,500 | ₹3.29 · 2,500 in stock | View |
