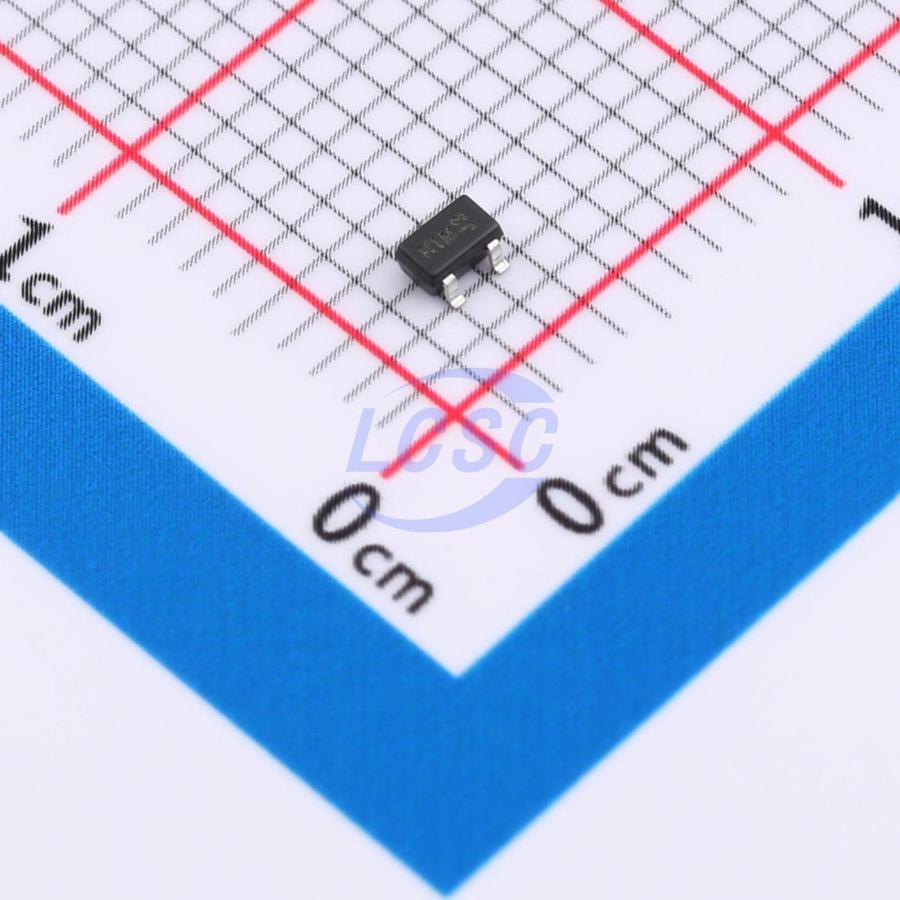

BC847CW-13-F
Bipolar (BJT) Transistor NPN 45V 100mA 300MHz 350mW Surface Mount SOT-323
SOT-323ROHS CompliantActive
TRANS NPN 45V 100mA SOT-323
- Manufacturer
- DIODES
- Manufacturer part #
- BC847CW-13-F
- Store part #
- C5248615
- Package / case
- SOT-323
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5248615
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.20 | ₹62.00 |
| 100+ | ₹6.11 | ₹611.00 |
| 300+ | ₹6.06 | ₹1,818.00 |
| 1,000+ | ₹5.99 | ₹5,990.00 |
10 × ₹6.20
₹62.00
excl. GST
₹73.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BC847CW-13-F
₹62.00 for 10 + GST
Specifications
- Current - Collector Cutoff
- 15nA
- Operating Temperature
- -65℃~+150℃
- Transition frequency(fT)
- 300MHz
- Collector - Emitter Voltage VCEO
- 45V
- DC Current Gain
- 450
- Emitter-Base Voltage VEBO
- 6V
- Pd - Power Dissipation
- 350mW
- Current - Collector(Ic)
- 100mA
- Configuration
- Standalone
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 250mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Key features
- Ideal for automatic insertion
- Complementary PNP types: BC856W – BC858W
- Suitable for switching and audio amplifier applications
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- AEC-Q101 qualified for high reliability
- PPAP capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BC846BW-13-F#C5248607DIODES · SOT-323 | DIODES | SOT-323 | 960 | ₹3.36 · 960 in stock | View |
 | BC847BW,115-CN#C42458981ChipNobo · SOT-323 | ChipNobo | SOT-323 | 3,000 | ₹1.57 · 3,000 in stock | View |
 | BC846BW,115#C28062Nexperia · SOT-323 | Nexperia | SOT-323 | 27,720 | ₹6.17 · 27,720 in stock | View |
 | BC846W,115#C294626Nexperia · SOT-323 | Nexperia | SOT-323 | 425 | ₹20.04 · 425 in stock | View |
 | AC847BWQ-7-HXY#C47506890HXY MOSFET · SOT-323 | HXY MOSFET | SOT-323 | 100 | ₹5.16 · 100 in stock | View |
