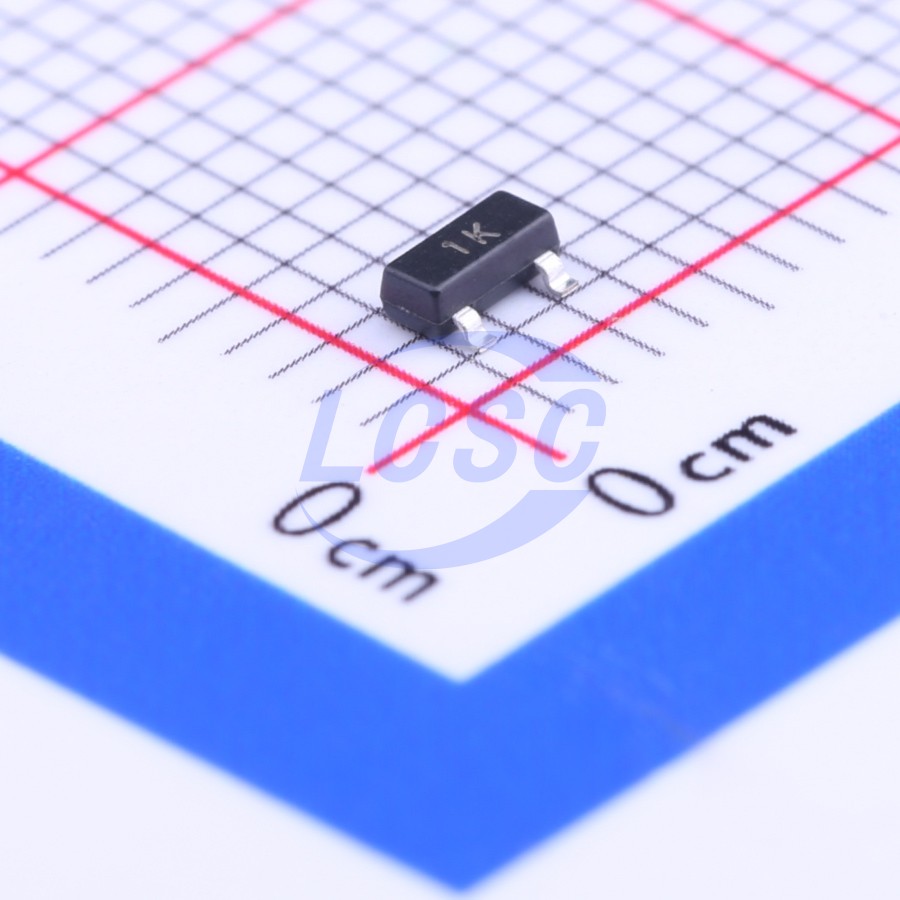

BC848B(RANGE:200-450)
Bipolar (BJT) Transistor NPN 30V 0.1A 100MHz 200mW Surface Mount SOT-23
SOT-23ROHS CompliantActive
TRANS NPN 30V 0.1A SOT-23
- Manufacturer
- JSCJ
- Manufacturer part #
- BC848B(RANGE:200-450)
- Store part #
- C8577
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
650 in stock
#C8577
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.32 | ₹116.00 |
| 500+ | ₹1.83 | ₹915.00 |
| 3,000+ | ₹1.47 | ₹4,410.00 |
| 6,000+ | ₹1.31 | ₹7,860.00 |
| 24,000+ | ₹1.16 | ₹27,840.00 |
| 51,000+ | ₹1.08 | ₹55,080.00 |
50 × ₹2.32
₹116.00
excl. GST
₹136.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BC848B(RANGE:200-450)
₹116.00 for 50 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 100MHz
- Collector - Emitter Voltage VCEO
- 30V
- Emitter-Base Voltage VEBO
- 6V
- DC Current Gain
- 200
- Current - Collector(Ic)
- 100mA
- Pd - Power Dissipation
- 200mW
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.036 g
Overview
Key features
- Ideally suited for automatic insertion
- For switching and AF amplifier applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BC847 1F(RANGE:200-450)#C8575JSCJ · SOT-23 | JSCJ | SOT-23 | 2,350 | ₹2.49 · 2,350 in stock | View |
 | BC846B(RANGE:200-450)#C8573JSCJ · SOT-23 | JSCJ | SOT-23 | 1,06,250 | ₹2.78 · 1,06,250 in stock | View |
 | MMBT1616A(RANGE:200-400)#C62673JSCJ · SOT-23 | JSCJ | SOT-23 | 9,830 | ₹6.24 · 9,830 in stock | View |
 | S9014#C2148JSCJ · SOT-23 | JSCJ | SOT-23 | 2,19,100 | ₹1.76 · 2,19,100 in stock | View |
 | C1815(RANGE:200-400)#C8533JSCJ · SOT-23 | JSCJ | SOT-23 | 33,000 | ₹2.28 · 33,000 in stock | View |
