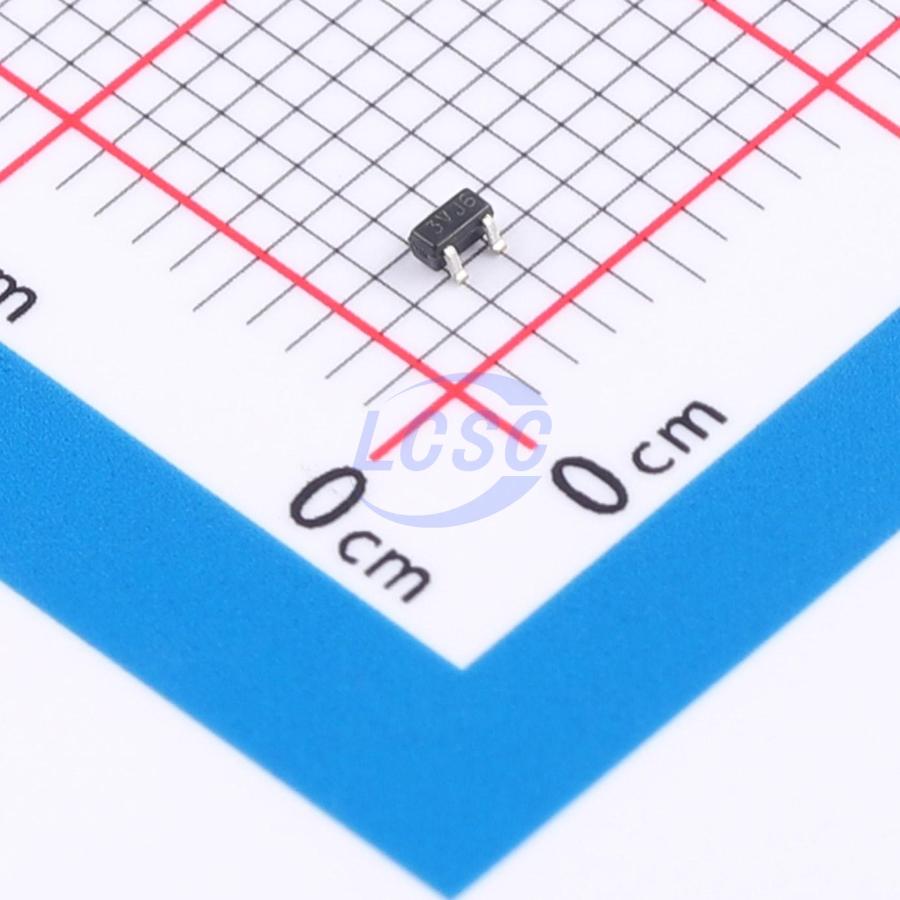

BC857AT-7-F
Bipolar (BJT) Transistor PNP 45V 100mA 100MHz 150mW Surface Mount SOT-523
SOT-523ROHS3 CompliantActive
TRANS PNP 45V 100mA SOT-523
- Manufacturer
- DIODES
- Manufacturer part #
- BC857AT-7-F
- Store part #
- C2760571
- Package / case
- SOT-523
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C2760571
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.45 | ₹54.50 |
| 100+ | ₹5.36 | ₹536.00 |
| 300+ | ₹5.31 | ₹1,593.00 |
| 1,000+ | ₹5.24 | ₹5,240.00 |
10 × ₹5.45
₹54.50
excl. GST
₹64.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BC857AT-7-F
₹54.50 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 15nA
- Transition frequency(fT)
- 100MHz
- Collector - Emitter Voltage VCEO
- 45V
- Emitter-Base Voltage VEBO
- 6V
- DC Current Gain
- 220
- Pd - Power Dissipation
- 150mW
- Current - Collector(Ic)
- 100mA
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 300mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
Key features
- BVCEO > -45V
- Ic = -100mA Collector Current
- Epitaxial Planar Die Construction
- Ultra-Small Surface Mount Package
- Complementary NPN Type: BC847AT, BT, CT
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
- Case: SOT523 Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Finish – Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208
- Weight: 0.002 grams (Approximate)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BC857CT-7-F#C151572DIODES · SOT-523 | DIODES | SOT-523 | 10 | ₹6.01 · 10 in stock | View |
 | BC857BT#C49190738TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 2,740 | ₹3.44 · 2,740 in stock | View |
 | BC856AT#C51814224CBI · SOT-523 | CBI | SOT-523 | 2,600 | ₹2.61 · 2,600 in stock | View |
 | 2DA1774R-7-F#C151390DIODES · SOT-523 | DIODES | SOT-523 | 13 | ₹45.27 · 13 in stock | View |
