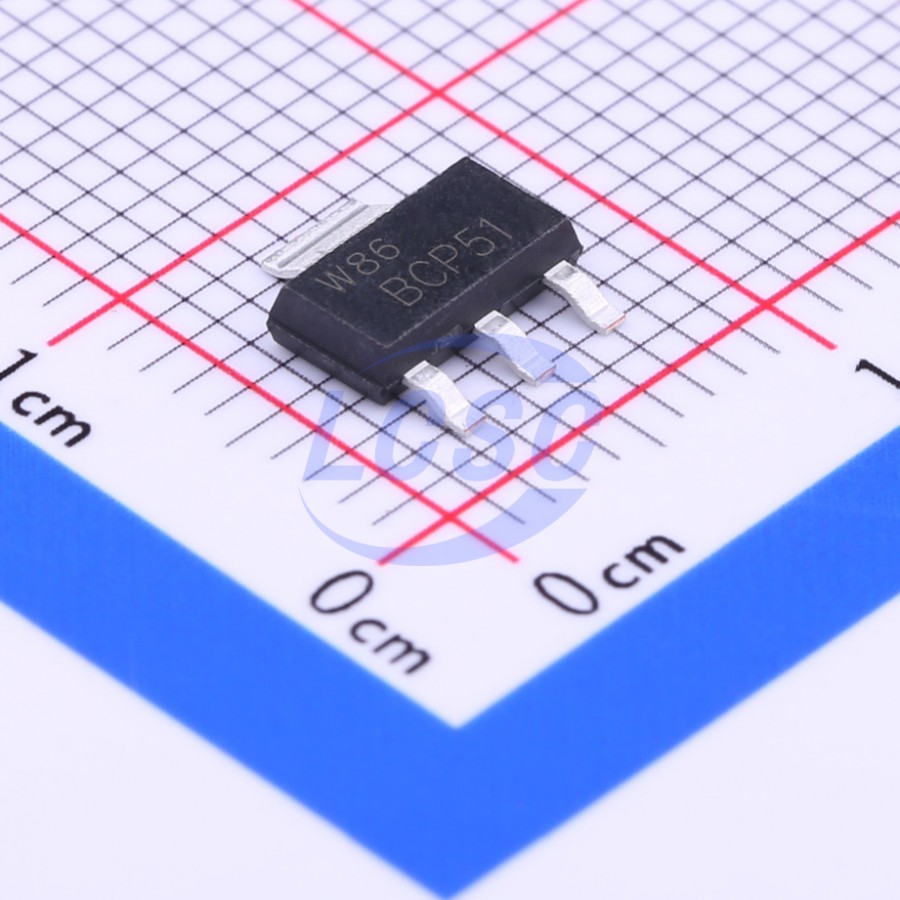

BCP51,115
Bipolar (BJT) Transistor PNP 45V 1A 145MHz 1.35W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
TRANS PNP 45V 1A SOT-223
- Manufacturer
- Nexperia
- Manufacturer part #
- BCP51,115
- Store part #
- C15335
- Package / case
- SOT-223
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
795 in stock
#C15335
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.31 | ₹116.55 |
| 50+ | ₹18.26 | ₹913.00 |
| 150+ | ₹16.09 | ₹2,413.50 |
| 1,000+ | ₹13.39 | ₹13,390.00 |
| 2,000+ | ₹12.18 | ₹24,360.00 |
| 5,000+ | ₹11.46 | ₹57,300.00 |
5 × ₹23.31
₹116.55
excl. GST
₹137.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
BCP51,115
₹116.55 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 145MHz
- Collector - Emitter Voltage VCEO
- 45V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 63
- Pd - Power Dissipation
- 1.35W
- Current - Collector(Ic)
- 1A
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
PNP medium power transistor series in Surface-Mounted Device (SMD) plastic packages.
Applications
- Linear voltage regulators
- High-side switches
- Battery-driven devices
- Power management
- MOSFET drivers
- Amplifiers
Key features
- High current
- Three current gain selections
- High power dissipation capability
- Exposed heatsink for excellent thermal and electrical conductivity (SOT89, SOT1061)
- Leadless very small SMD plastic package with medium power capability (SOT1061)
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BCP53-10,115#C454993Nexperia · SOT-223 | Nexperia | SOT-223 | 1,191 | ₹118.37 · 1,191 in stock | View |
 | BCP53-16,115#C85085Nexperia · SOT-223 | Nexperia | SOT-223 | 32,460 | ₹41.32 · 32,460 in stock | View |
 | BCP52,135#C456119Nexperia · SOT-223 | Nexperia | SOT-223 | 1,422 | ₹67.63 · 1,422 in stock | View |
 | BCP53,115#C18737Nexperia · SOT-223 | Nexperia | SOT-223 | 68,685 | ₹15.37 · 68,685 in stock | View |
 | BCP51TF#C549570Nexperia · SOT-223 | Nexperia | SOT-223 | 3,510 | ₹13.14 · 3,510 in stock | View |
