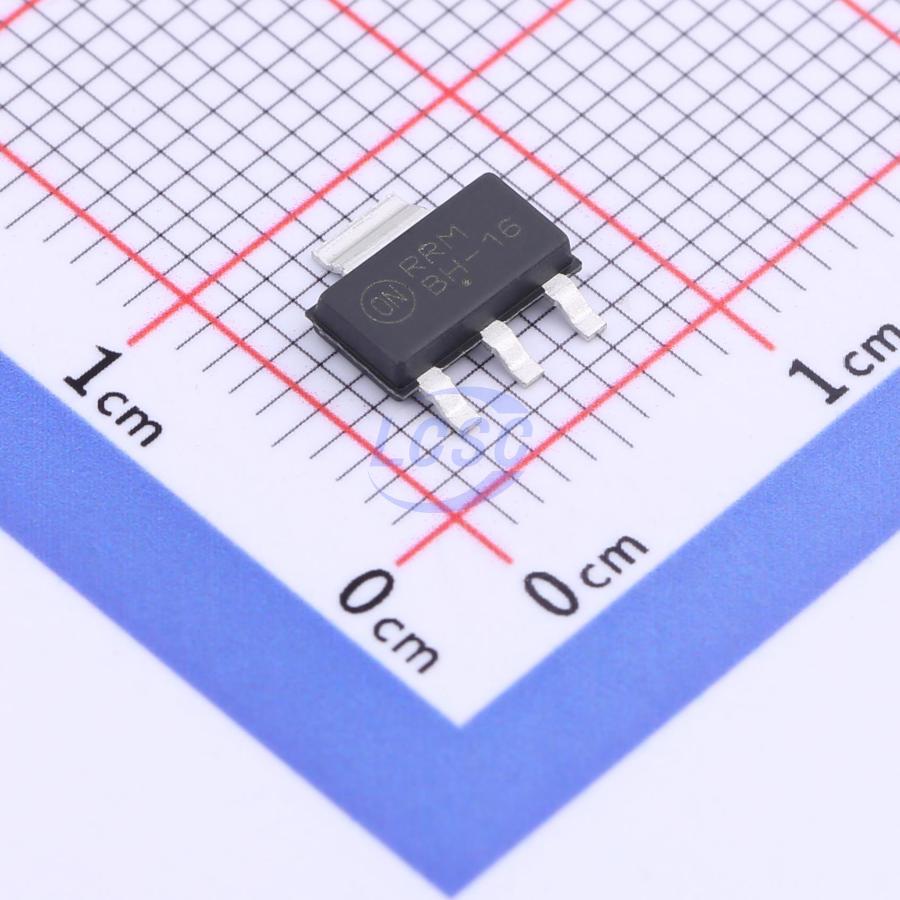

BCP56-16T3G
Bipolar (BJT) Transistor NPN 80V 1A 130MHz 1.5W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
TRANS NPN 80V 1A SOT-223
- Manufacturer
- onsemi
- Manufacturer part #
- BCP56-16T3G
- Store part #
- C894813
- Package / case
- SOT-223
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C894813
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.08 | ₹205.40 |
| 50+ | ₹31.92 | ₹1,596.00 |
| 150+ | ₹28.01 | ₹4,201.50 |
| 500+ | ₹23.11 | ₹11,555.00 |
| 2,500+ | ₹20.93 | ₹52,325.00 |
| 4,000+ | ₹19.62 | ₹78,480.00 |
5 × ₹41.08
₹205.40
excl. GST
₹242.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BCP56-16T3G
₹205.40 for 5 + GST
Specifications
- Operating Temperature
- -65℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 130MHz
- Collector - Emitter Voltage VCEO
- 80V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 250
- Current - Collector(Ic)
- 1A
- Pd - Power Dissipation
- 1.5W
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.13 g
Overview
These NPN Silicon Epitaxial transistors are designed for use in audio amplifier applications. The device is housed in the SOT−223 package, which is designed for medium power surface mount applications.
Applications
- audio amplifier applications
- medium power surface mount applications
Key features
- High Current: 1.0 A
- The SOT−223 package can be soldered using wave or reflow. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die
- Available in 12 mm Tape and Reel
- PNP Complement is BCP53T1G
- S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BCP56-16-JSM#C30587308JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 390 | ₹8.23 · 390 in stock | View |
 | BCP56-JSM#C53113871JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 440 | ₹7.05 · 440 in stock | View |
 | BCP56-16TX-JSM#C53113909JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 320 | ₹7.54 · 320 in stock | View |
 | BCP56-16,115-JSM#C53113946JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 900 | ₹10.35 · 900 in stock | View |
 | BCP56,115-JSM#C53113953JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 50 | ₹9.22 · 50 in stock | View |
