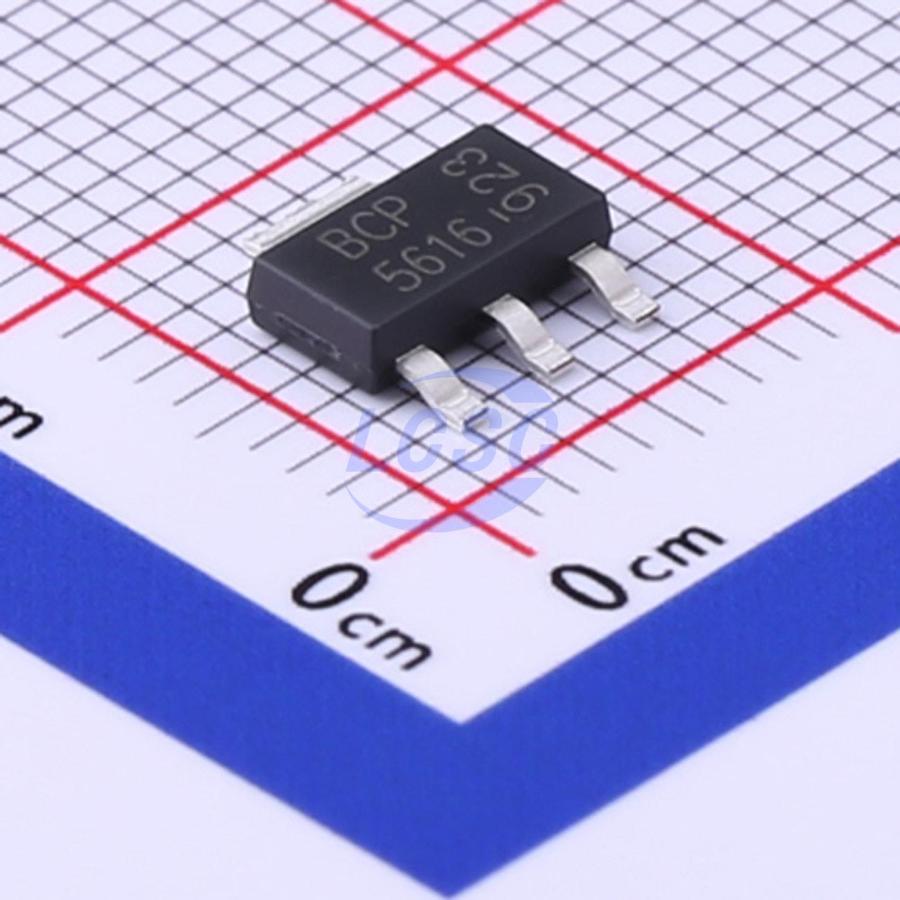

BCP5616QTA
Bipolar (BJT) Transistor NPN 80V 1A 150MHz 2W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
TRANS NPN 80V 1A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- BCP5616QTA
- Store part #
- C460003
- Package / case
- SOT-223
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C460003
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.20 | ₹121.00 |
| 50+ | ₹19.08 | ₹954.00 |
| 150+ | ₹16.88 | ₹2,532.00 |
| 1,000+ | ₹14.14 | ₹14,140.00 |
| 2,000+ | ₹12.93 | ₹25,860.00 |
| 5,000+ | ₹12.20 | ₹61,000.00 |
5 × ₹24.20
₹121.00
excl. GST
₹142.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
BCP5616QTA
₹121.00 for 5 + GST
Specifications
- Operating Temperature
- -65℃~+150℃
- Current - Collector Cutoff
- 20uA
- Transition frequency(fT)
- 150MHz
- Collector - Emitter Voltage VCEO
- 80V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 100
- Pd - Power Dissipation
- 2W
- Current - Collector(Ic)
- 1A
- Configuration
- Standalone
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.136 g
Overview
This Bipolar Junction Transistor (BJT) is designed to meet the stringent requirements of Automotive Applications.
Applications
- Medium Power Switching or Amplification Applications
- AF Driver and Output Stages
Key features
- BVCEO > 80 V
- IC = 1 A High Continuous Collector Current
- ICM = 2 A Peak Pulse Current
- 2W Power Dissipation
- Low Saturation Voltage VCE(SAT) < 500 mV @ 0.5 A
- Complementary PNP Type: BCP5316Q
- Totally Lead-Free & Fully RoHS Compliant
- Halogen- and Antimony-Free. "Green" Device
- The BCP5616Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF16949 certified facilities.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BCP56-16T1G#C16602onsemi · SOT-223 | onsemi | SOT-223 | 12,035 | ₹62.72 · 12,035 in stock | View |
 | SBCP56-16T3G#C895180onsemi · SOT-223 | onsemi | SOT-223 | 195 | ₹48.24 · 195 in stock | View |
 | FZT653#C47283706TWGMC · SOT-223 | TWGMC | SOT-223 | 1,585 | ₹21.54 · 1,585 in stock | View |
 | BCP56-16TF#C477954Nexperia · SOT-223 | Nexperia | SOT-223 | 5 | ₹25.12 · 5 in stock | View |
 | CZT31C#C55073088YFW · SOT-223 | YFW | SOT-223 | 10 | ₹25.47 · 10 in stock | View |
