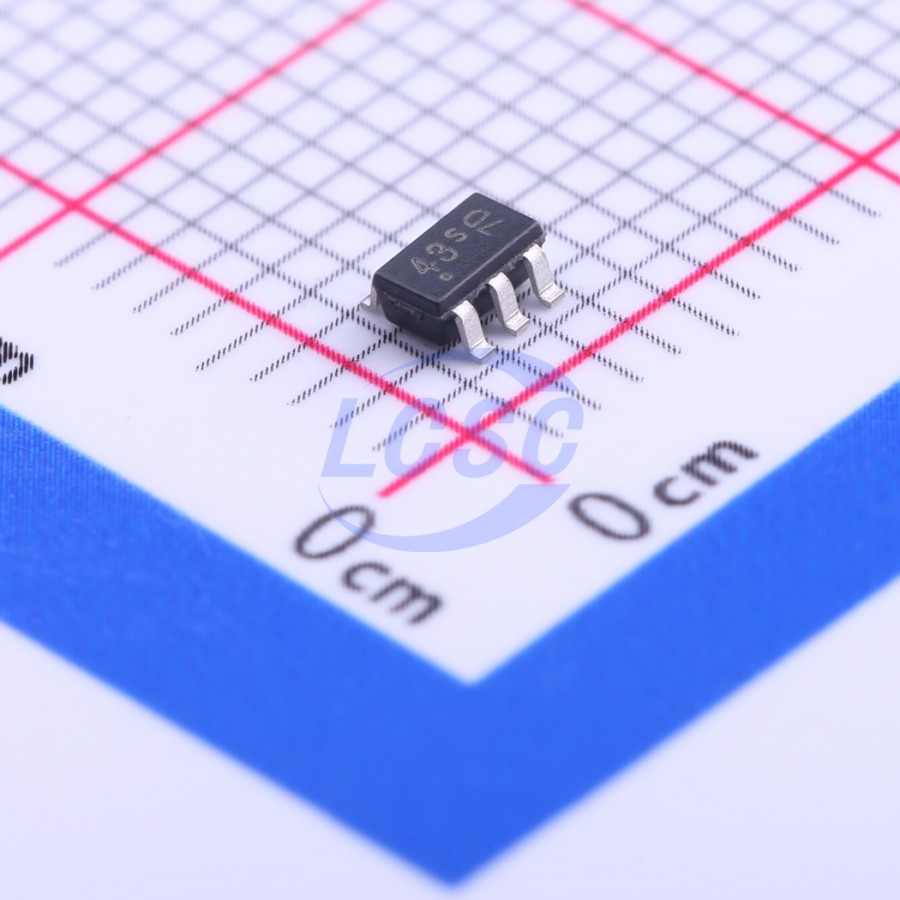

BCR430U
100mA 1 6V~42V SOT-23-6 LED Drivers RoHS
Low Drop Voltage LED Driver IC
- Manufacturer
- Infineon
- Manufacturer part #
- BCR430U
- Store part #
- C187837
- Package / case
- SOT-23-6
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,510 in stock
#C187837
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.59 | ₹217.95 |
| 50+ | ₹33.97 | ₹1,698.50 |
| 150+ | ₹29.86 | ₹4,479.00 |
| 500+ | ₹24.71 | ₹12,355.00 |
| 3,000+ | ₹22.42 | ₹67,260.00 |
| 6,000+ | ₹21.05 | ₹1,26,300.00 |
5 × ₹43.59
₹217.95
excl. GST
₹257.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BCR430U
₹217.95 for 5 + GST
Specifications
- Output Current
- 100mA
- Operating Temperature
- -40℃~+150℃
- Number of Channels
- 1
- Features
- Over-Temperature Protection (OTP)
- Switch tube (built-in/external)
- Built-in
- Voltage - Input(DC)
- 6V~42V
- Constant Current Accuracy
- 5%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
BCR430U is a linear LED controller IC in a small PG-SOT23-6-1 package regulating the LED current in standalone operation without any external power transistor. The IC supply voltage range is from 6 V up to 42 V. The LED current level can be adjusted up to 100 mA connecting a high ohmic resistor Rset to pin RS. The voltage drop at the integrated LED driver stage is less than 200 mV at 50 mA improving the overall system efficiency and providing extra voltage headroom to compensate for tolerances of LED forward voltage or supply voltage. The smart over temperature protection function reduces the LED current when junction temperature of BCR430U is very high.
Applications
- LED strips
- LED displays and channel letters
- Architectural and landscape lighting
- Retail lighting
Key features
- Supply voltage from 6 V to 42 V
- Controls up to 100 mA LED current
- Typ. 135 mV saturation voltage at 50 mA
- LED current precision ±5 % at 95 mA
- Smart over temperature protection function
- Low BOM count
- Lower assembly cost
- Smaller form factor
- Higher reliability due to less parts and soldering joints
