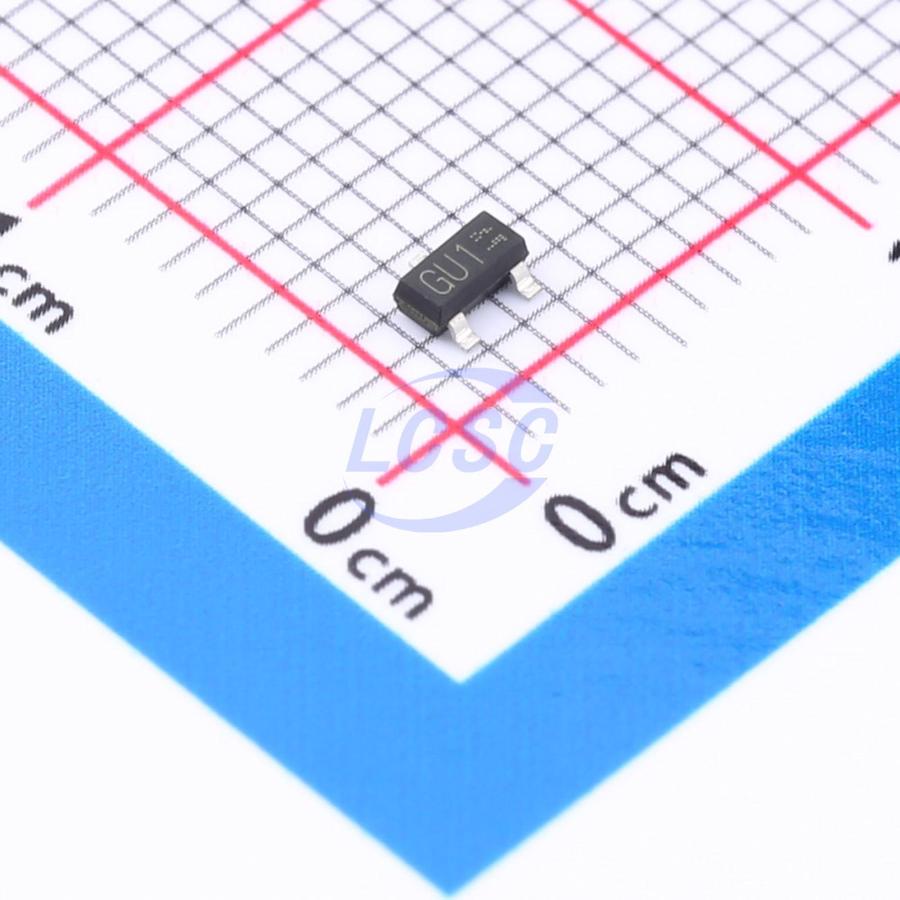

BCX19HZGT116
Bipolar (BJT) Transistor 45V 500mA 200mW Surface Mount TO-236-3(SOT-23-3)
TO-236-3(SOT-23-3)ROHS3 CompliantActive
TRANS 45V 500mA TO-236-3(SOT-23-3)
- Manufacturer
- ROHM
- Manufacturer part #
- BCX19HZGT116
- Store part #
- C3200684
- Package / case
- TO-236-3(SOT-23-3)
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
975 in stock
#C3200684
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.96 | ₹59.80 |
| 50+ | ₹9.33 | ₹466.50 |
| 150+ | ₹8.00 | ₹1,200.00 |
| 500+ | ₹7.03 | ₹3,515.00 |
| 3,000+ | ₹6.23 | ₹18,690.00 |
| 6,000+ | ₹5.83 | ₹34,980.00 |
5 × ₹11.96
₹59.80
excl. GST
₹70.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BCX19HZGT116
₹59.80 for 5 + GST
Specifications
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 250MHz
- Collector - Emitter Voltage VCEO
- 45V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 100
- Pd - Power Dissipation
- 200mW
- Current - Collector(Ic)
- 500mA
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 620mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.016 g
Overview
Applications
- AUDIO FREQUENCY SMALL SIGNAL AMPLIFIER
Key features
- High gain and low saturation voltage.
- Complements the BCX17.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BCX19T116#C509819ROHM · SOT-23 | ROHM | SOT-23 | 1,810 | ₹8.35 · 1,810 in stock | View |
 | 2SD602A#C2910197JSCJ · SOT-23 | JSCJ | SOT-23 | 2,400 | ₹4.35 · 2,400 in stock | View |
 | BCX19LT1G#C232541onsemi · SOT-23 | onsemi | SOT-23 | 24,940 | ₹9.10 · 24,940 in stock | View |
 | LBC817-16LT1G#C383186LRC · SOT-23 | LRC | SOT-23 | 69,870 | ₹4.19 · 69,870 in stock | View |
 | NSVBC817-16LT1G#C489578onsemi · SOT-23 | onsemi | SOT-23 | 2 | ₹94.62 · 2 in stock | View |
