BCX56-10,115
Bipolar (BJT) Transistor NPN 80V 1A 180MHz 0.5W Surface Mount SOT-89
SOT-89ROHS3 CompliantActive
TRANS NPN 80V 1A SOT-89
- Manufacturer
- Nexperia
- Manufacturer part #
- BCX56-10,115
- Store part #
- C179345
- Package / case
- SOT-89
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C179345
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.07 | ₹120.35 |
| 50+ | ₹19.14 | ₹957.00 |
| 150+ | ₹17.03 | ₹2,554.50 |
| 1,000+ | ₹14.41 | ₹14,410.00 |
| 2,000+ | ₹13.23 | ₹26,460.00 |
| 5,000+ | ₹12.53 | ₹62,650.00 |
5 × ₹24.07
₹120.35
excl. GST
₹142.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
BCX56-10,115
₹120.35 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 180MHz
- Collector - Emitter Voltage VCEO
- 80V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 63
- Pd - Power Dissipation
- 500mW
- Current - Collector(Ic)
- 1A
- Configuration
- Standalone
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview

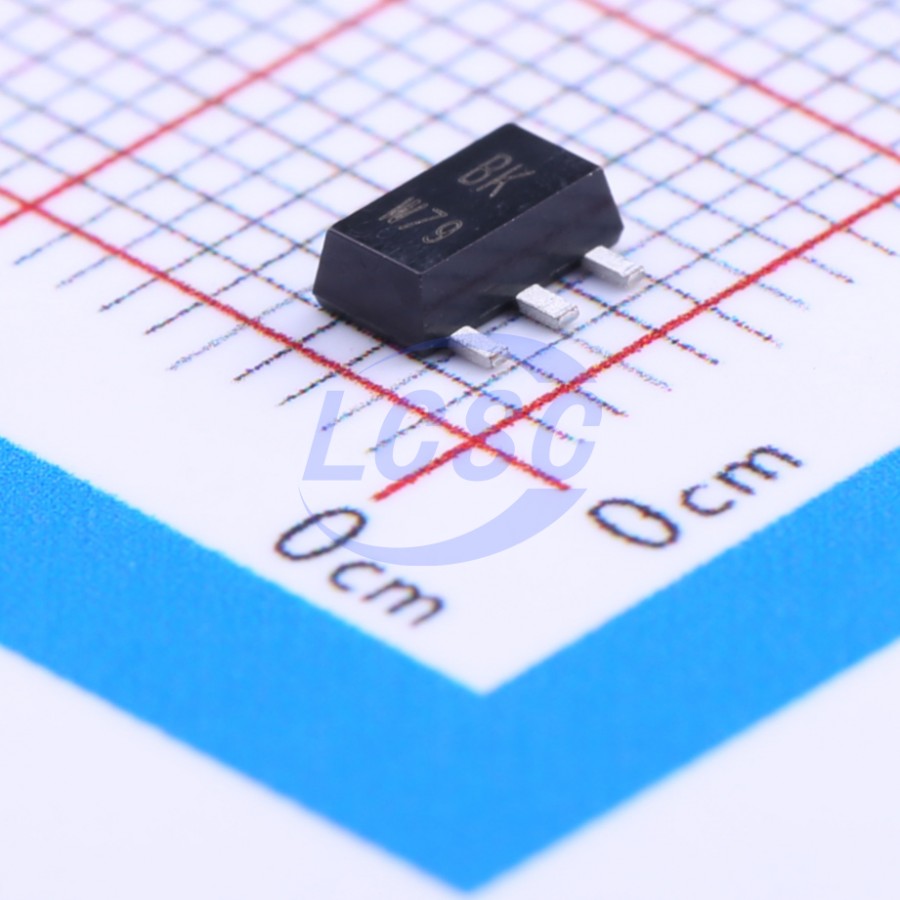

NPN medium power transistors in a SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package
Applications
- Linear voltage regulators
- MOSFET drivers
- Low-side switches
- Battery-driven devices
- Power management
- Amplifiers
Key features
- High collector current capability IC and ICM
- Three current gain selections
- High power dissipation capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BCX56,115#C135819Nexperia · SOT-89 | Nexperia | SOT-89 | 14,595 | ₹35.19 · 14,595 in stock | View |
 | LBTN180Y3T1G#C2982812LRC · SOT-89 | LRC | SOT-89 | 5,630 | ₹11.93 · 5,630 in stock | View |
 | S-LBTN180Y3T1G#C5185757LRC · SOT-89 | LRC | SOT-89 | 2,885 | ₹26.34 · 2,885 in stock | View |
 | BCX56-16(KTP)#C49443628KTP · SOT-89 | KTP | SOT-89 | 730 | ₹6.79 · 730 in stock | View |
 | BCX56-10TX#C549695Nexperia · SOT-89-3 | Nexperia | SOT-89-3 | 8 | ₹82.18 · 8 in stock | View |
