ROHMDatasheet (PDF)

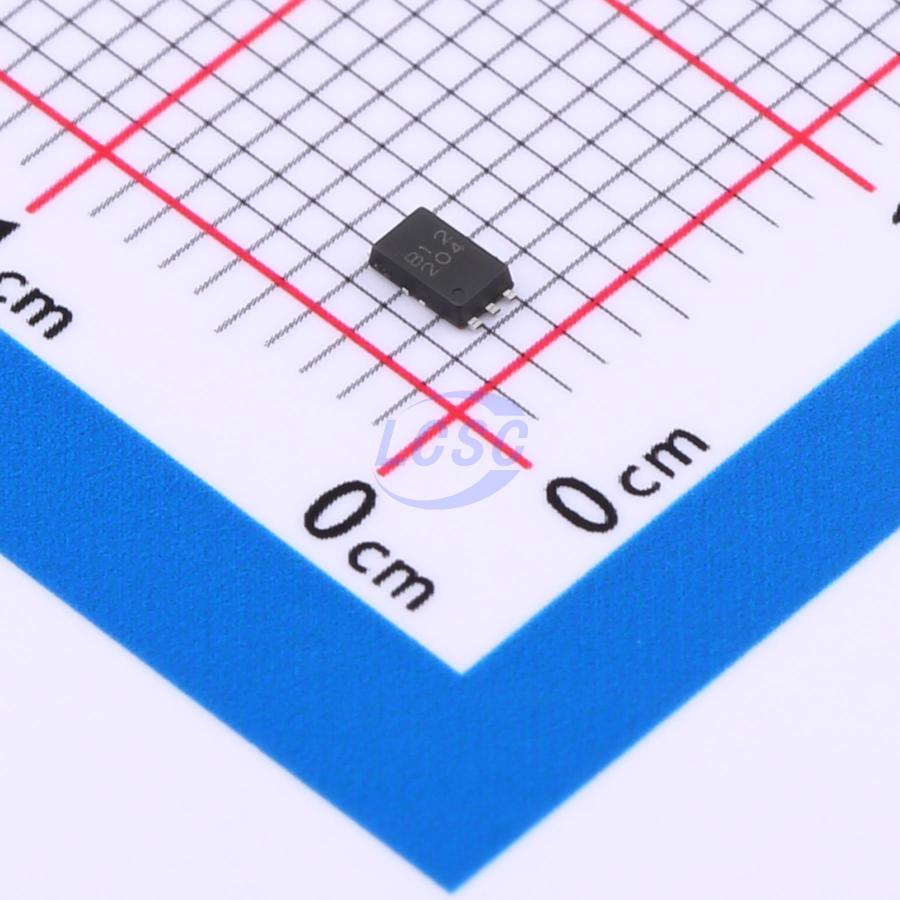

BD00IA5MHFV-MTR
800mV~4.5V Positive Adjustable HVSOF-6 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
HVSOF-6ROHS3 CompliantActive
Automotive 0.5A Variable Output LDO Regulator
- Manufacturer
- ROHM
- Manufacturer part #
- BD00IA5MHFV-MTR
- Store part #
- C3764366
- Package / case
- HVSOF-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C3764366
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.39 | ₹107.39 |
| 10+ | ₹87.29 | ₹872.90 |
| 30+ | ₹77.14 | ₹2,314.20 |
| 100+ | ₹67.20 | ₹6,720.00 |
| 500+ | ₹52.99 | ₹26,495.00 |
| 1,000+ | ₹49.94 | ₹49,940.00 |
1 × ₹107.39
₹107.39
excl. GST
₹126.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD00IA5MHFV-MTR
₹107.39 for 1 + GST
Specifications
- Output Voltage
- 800mV~4.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃@(Ta)
- Supply Current (Iq)
- 250uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Output Type
- Adjustable
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
BD00IA5MHFV-M is a LDO regulator with output current 0.5A. The output accuracy is ±3% between Ta = -40°C to +105°C. The variable output voltage can be varied from 0.8V to 4.5V using external resistors. It has package type: HVSOF6 which is small and good heat resistance. Over current protection (for protecting the IC destruction by output short circuit), circuit current ON/OFF switch (for setting the circuit 0μA at shutdown mode), and thermal shutdown circuit (for protecting IC from heat destruction by over load condition) are all built in. It is usable for ceramic capacitor and enables to improve smaller set and long-life.
Applications
- Automotive (Body)
Key features
- AEC-Q100 Qualified
- High Accuracy Reference Voltage Circuit
- Built-in Over Current Protection Circuit (OCP)
- Built-in Thermal Shut Down Circuit (TSD)
- With Shutdown Switch
