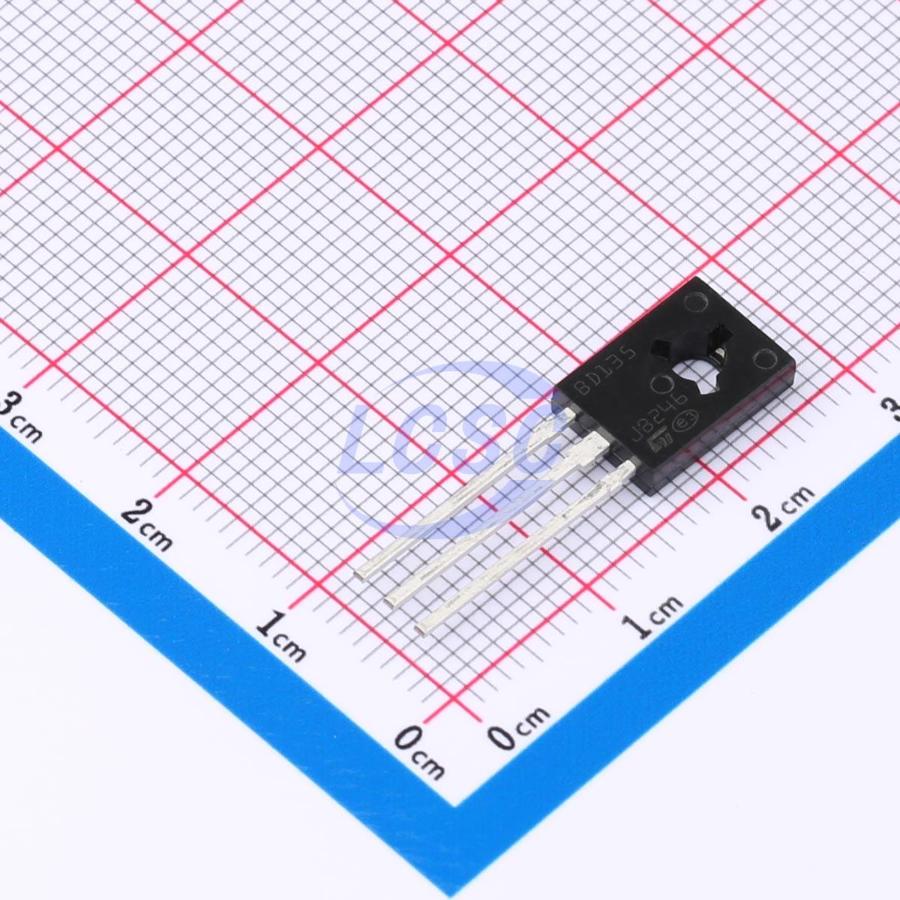

BD135

Bipolar (BJT) Transistor NPN 45V 1.5A 12.5W Through Hole SOT-32-3

SOT-32-3ROHS3 CompliantActive

TRANS NPN 45V 1.5A SOT-32-3

Manufacturer: ST
Manufacturer part #: BD135
Store part #: C3200359
Package / case: SOT-32-3
Category: Single Bipolar Transistors
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

65 in stock

#C3200359

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹54.23	₹271.15
50+	₹45.06	₹2,253.00
150+	₹41.13	₹6,169.50
500+	₹36.22	₹18,110.00
2,500+	₹34.05	₹85,125.00
5,000+	₹32.74	₹1,63,700.00

Quantity (min 5, multiples of 5)

5 × ₹54.23

₹271.15

excl. GST

₹319.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

BD135

₹271.15 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Collector Cutoff: 10uA
Operating Temperature: -65℃~+150℃
Collector - Emitter Voltage VCEO: 45V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 25
Current - Collector(Ic): 1.5A
Pd - Power Dissipation: 12.5W
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 500mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.524 g

Overview

These epitaxial planar transistors are mounted in the SOT-32 plastic package. They are designed for audio amplifiers and drivers utilizing complementary or quasi-complementary circuits. The NPN types are the BD135 and BD139, and the complementary PNP types are the BD136 and BD140.

Applications

General purpose

Key features

Products are pre-selected in DC current gain

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
BD137G#C527098onsemi · TO-126-3	onsemi	TO-126-3	1	₹119.98 · 1 in stock	View
BD13916STU#C900678onsemi · TO-126-3	onsemi	TO-126-3	104	₹127.27 · 104 in stock	View
BD13516STU#C900672onsemi · TO-126	onsemi	TO-126	9	₹204.48 · 9 in stock	View
BD137G-HXY#C50269832HXY MOSFET · TO-126	HXY MOSFET	TO-126	184	₹72.58 · 184 in stock	View
BD235#C3031916JSCJ · TO-126	JSCJ	TO-126	195	₹21.50 · 195 in stock	View
