ROHMDatasheet (PDF)

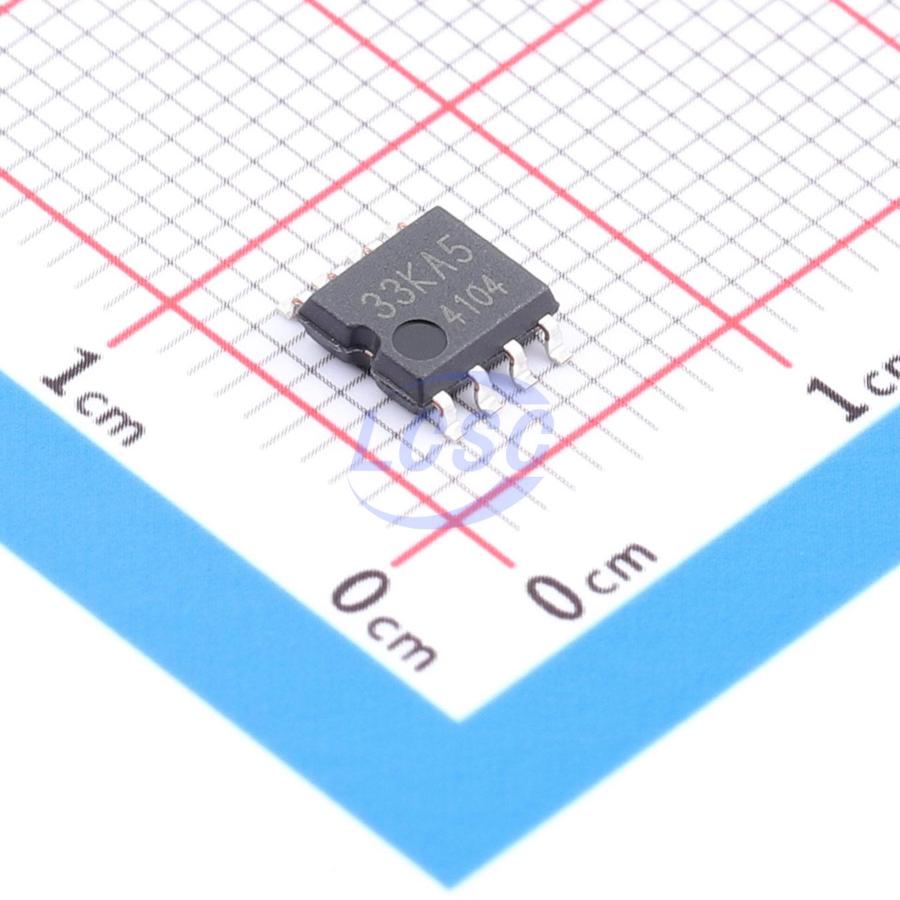

BD33KA5WF-E2
3.3V Positive Fixed SOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOP-8ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- BD33KA5WF-E2
- Store part #
- C7219874
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C7219874
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹224.20 | ₹224.20 |
| 10+ | ₹219.21 | ₹2,192.10 |
| 30+ | ₹215.95 | ₹6,478.50 |
| 100+ | ₹212.70 | ₹21,270.00 |
1 × ₹224.20
₹224.20
excl. GST
₹264.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD33KA5WF-E2
₹224.20 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃
- Supply Current (Iq)
- 350uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.196 g
Overview
The BDxxKA5 series are low-saturation regulators that are available for output currents up to 500mA. The output voltage precision is ± 1%. These LDO regulators are offered in several output voltages and package lineups with or without ON/OFF switches (that set the circuit current to 0μA at shutdown). This series can be used for a broad spectrum of applications ranging from TVs and car audio systems to HDDs, PCs, and DVDs. There regulators have a built-in overcurrent protection circuit that prevents the destruction of the IC, due to output short circuits and a thermal shutdown circuit.
Applications
- Microcontrollers and all electronic devices that use logic circuit
Key features
- Output voltage precision: ±1%
- Low-saturation voltage with PMOS output: 0.12V Typ.(10 = 200mA)
- Built-in over-current protection circuit
- Built-in thermal shutdown circuit
- Shutdown switch (BDxxKA5WFP and BDxxKA5WF series)
- Ceramic capacitor compatible (recommended capacitance: 1μF or greater)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TPS7133QDR#C7725TI · SOIC-8 | TI | SOIC-8 | 1 | ₹524.54 · 1 in stock | View | |
 | MCP1726T-3302E/SN#C623094MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 66 | ₹176.28 · 66 in stock | View |
 | MCP1725-3302E/SN#C185568MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 426 | ₹134.95 · 426 in stock | View |
 | AP7215-33SG-13#C5564122DIODES · SOP-8 | DIODES | SOP-8 | 1,080 | ₹51.31 · 1,080 in stock | View |
 | TPS76733QDR#C527568TI · SOIC-8 | TI | SOIC-8 | 8 | ₹456.24 · 8 in stock | View |
