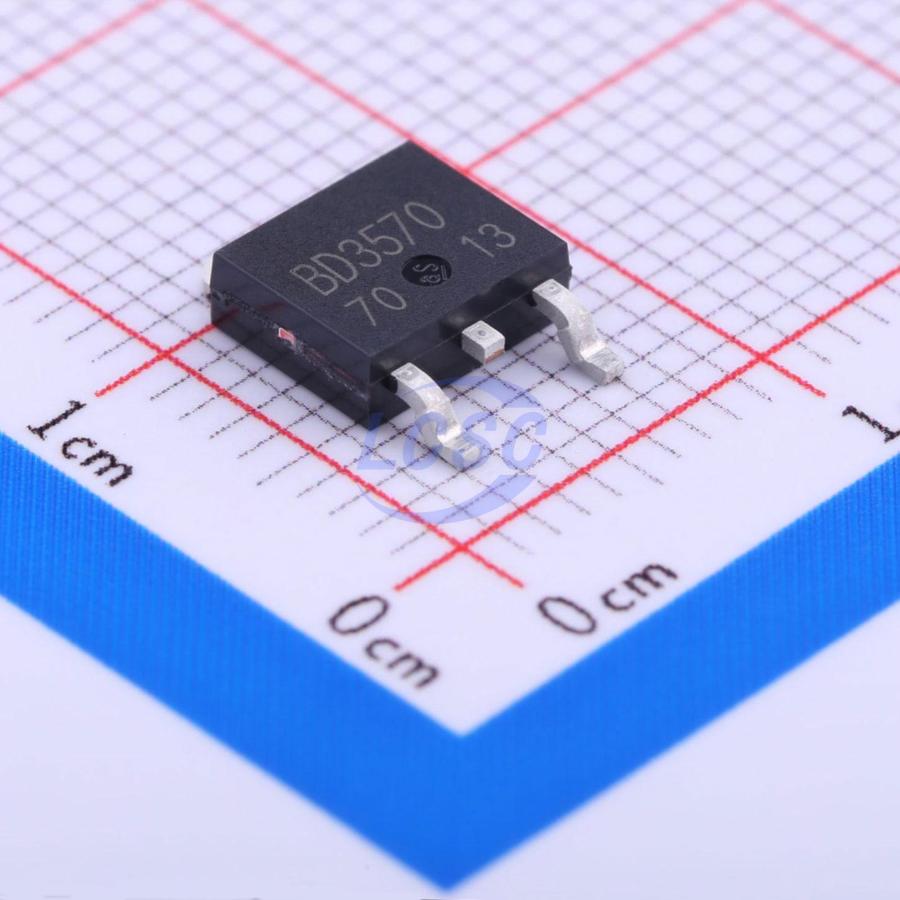

BD3570FP-E2

BD357XFP/HFP SERIES regulators feature a high 50 V withstand-voltage and are suitable for use with onboard vehicle microcontrollers. They offer the output current of 500 mA while limiting the quiescent current to 30 μA (TYP). With these devices, a ceramic capacitor can be selected at the output for stable operation, the output tolerance is within ±2% over the wide ambient temperature range (-40 to 125 °C), and the short circuit protection is folded-type to minimize generation of heat during malfunction. These devices are developed to offer most robust power-supply design under the harsh automotive environment. The BD357XFP/HFP Series provide ideal solutions to lower the current consumption as well as to simplify the use with battery direct-coupled systems.

Applications

• rd vehicle devices (body-control, car stereos, satellite navigation syste

Key features

• Ultra-low quiescent current: 30 μA (TYP.)
• Low-saturation voltage type P-channel DMOS output transistors
• High output voltage precision: ± 2% - 10 m max = 500 mA
• Low-ESR ceramic capacitors can be used as output capacitors.
• Vcc power supply voltage = 50 V
• Built-in overcurrent protection circuit and thermal shutdown circuit
• TO252-3, TO252-5, HRP5 Package
