ROHMDatasheet (PDF)

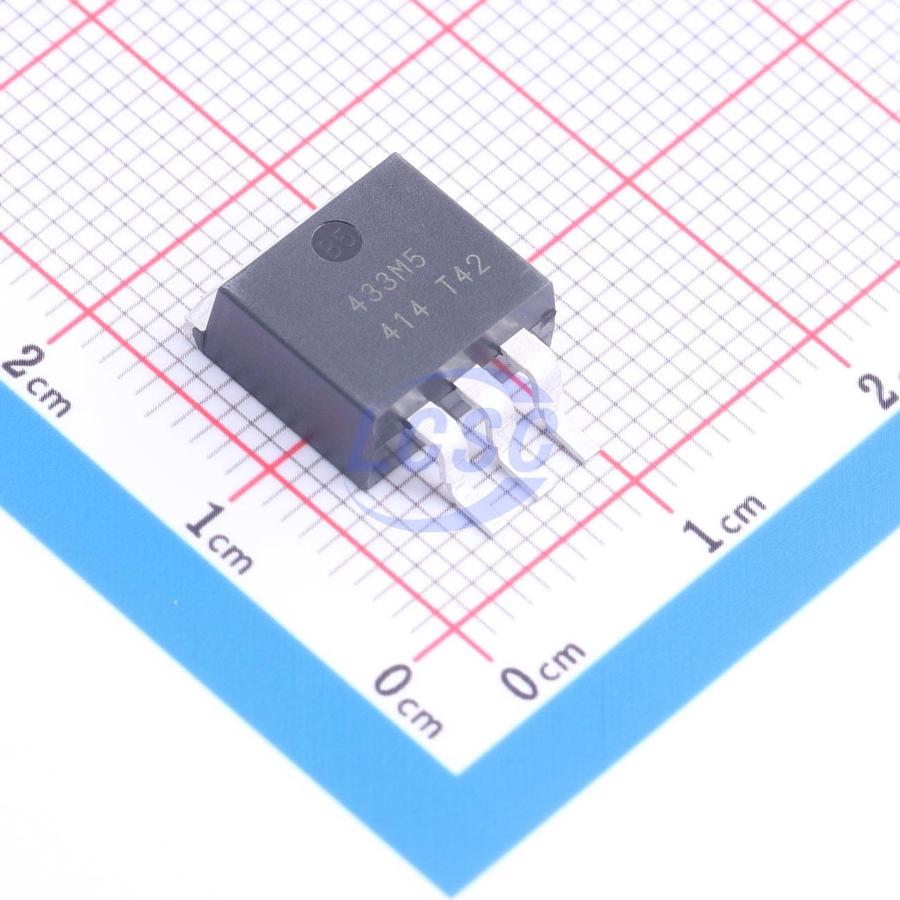

BD433M5FP2-CZE2
3.3V Positive Fixed TO-263-3F Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-3FROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- BD433M5FP2-CZE2
- Store part #
- C5595430
- Package / case
- TO-263-3F
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5595430
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹421.12 | ₹421.12 |
| 10+ | ₹411.88 | ₹4,118.80 |
| 30+ | ₹405.65 | ₹12,169.50 |
| 100+ | ₹399.41 | ₹39,941.00 |
1 × ₹421.12
₹421.12
excl. GST
₹496.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
BD433M5FP2-CZE2
₹421.12 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 38uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 42V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.02 g
Overview
Applications
- Automotive (body, audio system, navigation system, etc.)
Key features
- 45 V absolute maximum voltage
- Output voltage accuracy of ±2 % (3.3 V or 5.0 V: Typ.)
- 500 mA output current
- 38 μA (Typ.) current consumption
- A logical “HIGH” at the CTL enables the device and “LOW” at the CTL disables the device (Only W: Includes Enable Input)
- Ceramic capacitors can be used for compensation of the output capacitor phase
- Overcurrent protection to protect the device from damage caused by short - circuiting
- Integrated thermal shutdown to protect the device from overheating at overload conditions
- Qualified for Automotive Applications
- Wide Temperature Range (Tj): -40 °C to +150 °C
- Wide Operating Input Range: 3.0 V to 42 V
- Low Quiescent Current: 38 μA (Typ.)
- High Output Voltage Accuracy: ±2 %
- Output Voltage: 3.3 V or 5.0 V (Typ.)
- Enable Input (Only W)
- Overload Current Protection (OCP)
- Thermal Shutdown Protection (TSD)
- AEC - Q100 Qualified
