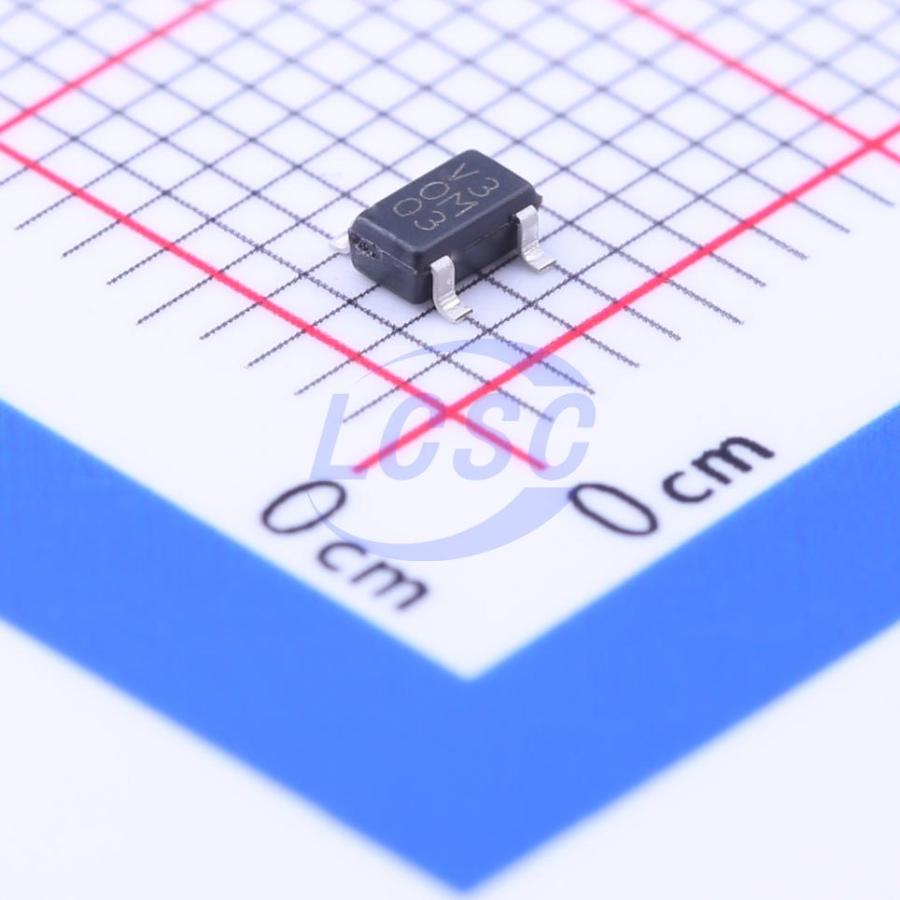

BD45292G-TR
180ms Manual reset input Active Low 1 SSOP-5 Supervisors RoHS
Counter Timer Built-in CMOS Voltage Detector IC
- Manufacturer
- ROHM
- Manufacturer part #
- BD45292G-TR
- Store part #
- C79644
- Package / case
- SSOP-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,985 in stock
#C79644
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.52 | ₹232.60 |
| 50+ | ₹36.99 | ₹1,849.50 |
| 150+ | ₹32.90 | ₹4,935.00 |
| 500+ | ₹27.81 | ₹13,905.00 |
| 3,000+ | ₹25.53 | ₹76,590.00 |
| 6,000+ | ₹24.17 | ₹1,45,020.00 |
5 × ₹46.52
₹232.60
excl. GST
₹274.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD45292G-TR
₹232.60 for 5 + GST
Specifications
- Reset Timeout
- 180ms
- Operating Temperature
- -40℃~+105℃
- output type
- Push-pull
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 850nA
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.9V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
BD45xxx and BD46xxx series are highly accurate, low current consumption Voltage Detector ICs. Because the counter timer delay circuit is built into these series, an external capacitor for the delay time setting is unnecessary. The lineup was established with low output types (Nch open drain and CMOS output) and detection voltages range from 2.3V to 4.8V in increments of 0.1V, so that the series may be selected according the application at hand.
Applications
- Circuits using microcontrollers or logic circuits that require a reset.
Key features
- Counter Timer Built-in
- No delay time setting external capacitor required
- Ultra-low current consumption
- Two output types (Nch open drain and CMOS output)
- Package SSOP5 is similar to SOT-23-5 (JEDEC)
