ROHMDatasheet (PDF)

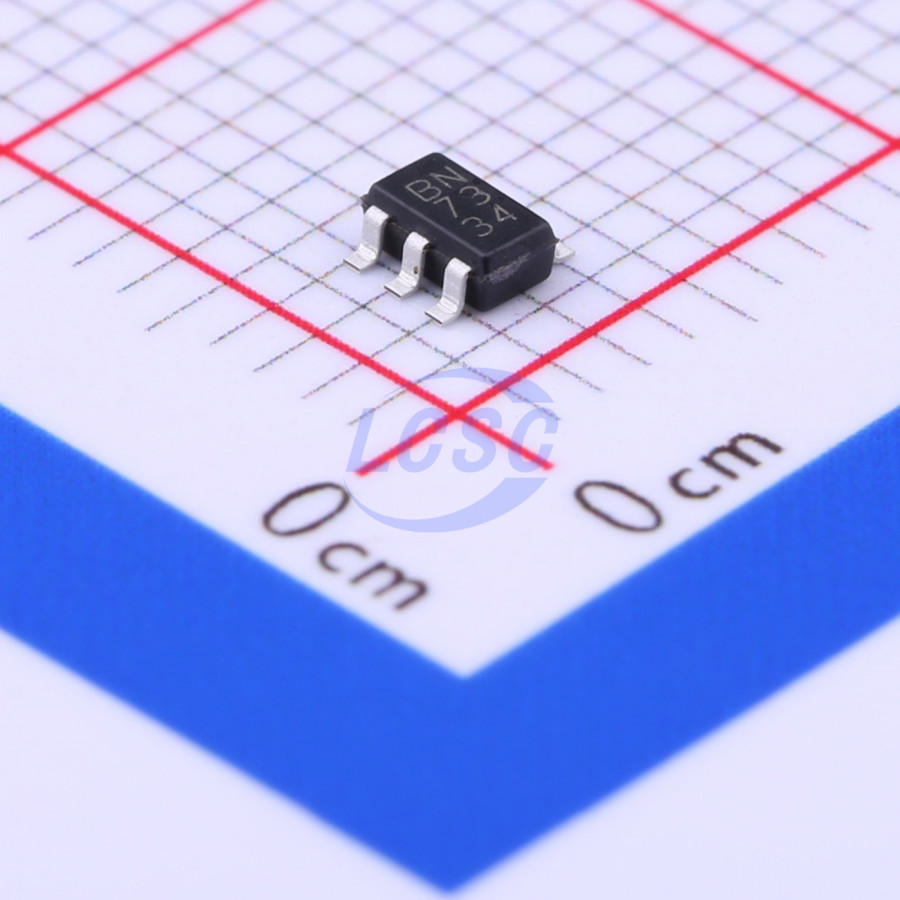

BD4732G-TR
Active Low 1.9V~4.6V 1 SSOP-5 Supervisors RoHS
SSOP-5ROHS3 CompliantActive
Voltage Detector IC
- Manufacturer
- ROHM
- Manufacturer part #
- BD4732G-TR
- Store part #
- C250131
- Package / case
- SSOP-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,875 in stock
#C250131
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.95 | ₹139.75 |
| 50+ | ₹24.17 | ₹1,208.50 |
| 150+ | ₹22.56 | ₹3,384.00 |
| 500+ | ₹20.53 | ₹10,265.00 |
| 3,000+ | ₹19.63 | ₹58,890.00 |
| 6,000+ | ₹19.09 | ₹1,14,540.00 |
5 × ₹27.95
₹139.75
excl. GST
₹164.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD4732G-TR
₹139.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+75℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 1.6uA
- Voltage - Supply
- 1.9V~4.6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.2V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The BD47xx series is a Voltage Detector IC, developed to prevent system errors at transient state, when the power of CPU or logic circuit switches ON/OFF or in cases of momentary shut down. These ICs consist of three terminals (power supply, GND and reset output) to detect power supply voltages and outputs reset signals of various systems. These ICs are ultra-compact and have low current consumption, making them ideal for portable products.
Applications
- Applications requiring reset for microcontrollers or logic circuits.
- Portable products.
Key features
- High accuracy detection
- Low current consumption
- Very small package
- Open collector “L” reset output
- Package SSOP5 is similar to SOT-23-5 (JEDEC)
