ROHMDatasheet (PDF)

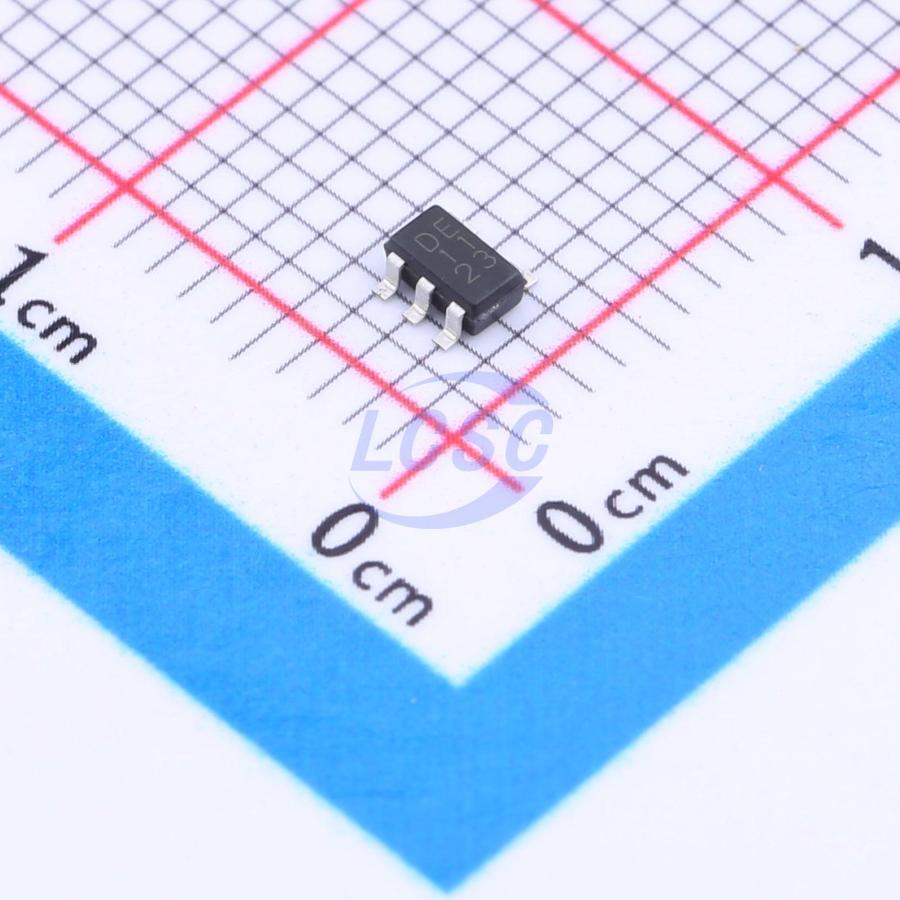

BD4824G-TR
Active Low 2.3V~6V 1 SSOP-5-1.6mm Supervisors RoHS
SSOP-5-1.6mmROHS3 CompliantActive
High Precision Low Power Voltage Detector IC
- Manufacturer
- ROHM
- Manufacturer part #
- BD4824G-TR
- Store part #
- C2909277
- Package / case
- SSOP-5-1.6mm
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,910 in stock
#C2909277
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.12 | ₹65.60 |
| 50+ | ₹11.39 | ₹569.50 |
| 150+ | ₹10.52 | ₹1,578.00 |
| 500+ | ₹9.87 | ₹4,935.00 |
| 3,000+ | ₹9.35 | ₹28,050.00 |
| 6,000+ | ₹9.09 | ₹54,540.00 |
5 × ₹13.12
₹65.60
excl. GST
₹77.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD4824G-TR
₹65.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃@(TA)
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 900nA
- Voltage - Supply
- 2.3V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.4V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
BD48xxx and BD49xxx series are highly accurate, low-current Voltage Detector IC series. The family includes BD48xxx devices with N-channel open drain output and BD49xxx devices with CMOS output. The devices are available for specific detection voltages ranging from 2.3V to 6.0V in increments of 0.1V.
Applications
- Circuits using microcontrollers or logic circuits that require a reset.
Key features
- High accuracy detection
- Ultra-low current consumption
- Two output types (Nch open drain and CMOS output)
- Wide Operating temperature range
- Very small and low height package
- Package SSOP5 is similar to SOT-23-5 (JEDEC)
- Package SSOP3 is similar to SOT-23-3 (JEDEC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BD5224G-TR#C2066546ROHM · SSOP-5-1.6mm | ROHM | SSOP-5-1.6mm | 10 | ₹72.10 · 10 in stock | View |
 | STM1831L24WY6F#C443968ST · SOT-23-5 | ST | SOT-23-5 | 7 | ₹150.31 · 7 in stock | View |
 | BD5225G-TR#C2067305ROHM · SSOP-5-1.6mm | ROHM | SSOP-5-1.6mm | On request | ₹67.84 · 0 in stock | View |
| SGM829-2.5XN5G/TR#C5152433SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | On request | ₹97.98 · 0 in stock | View | |
| MAX6822ZUK+T#C2066153MAXIM · SOT-23-5 | MAXIM | SOT-23-5 | On request | ₹337.78 · 0 in stock | View | |
