ROHMDatasheet (PDF)

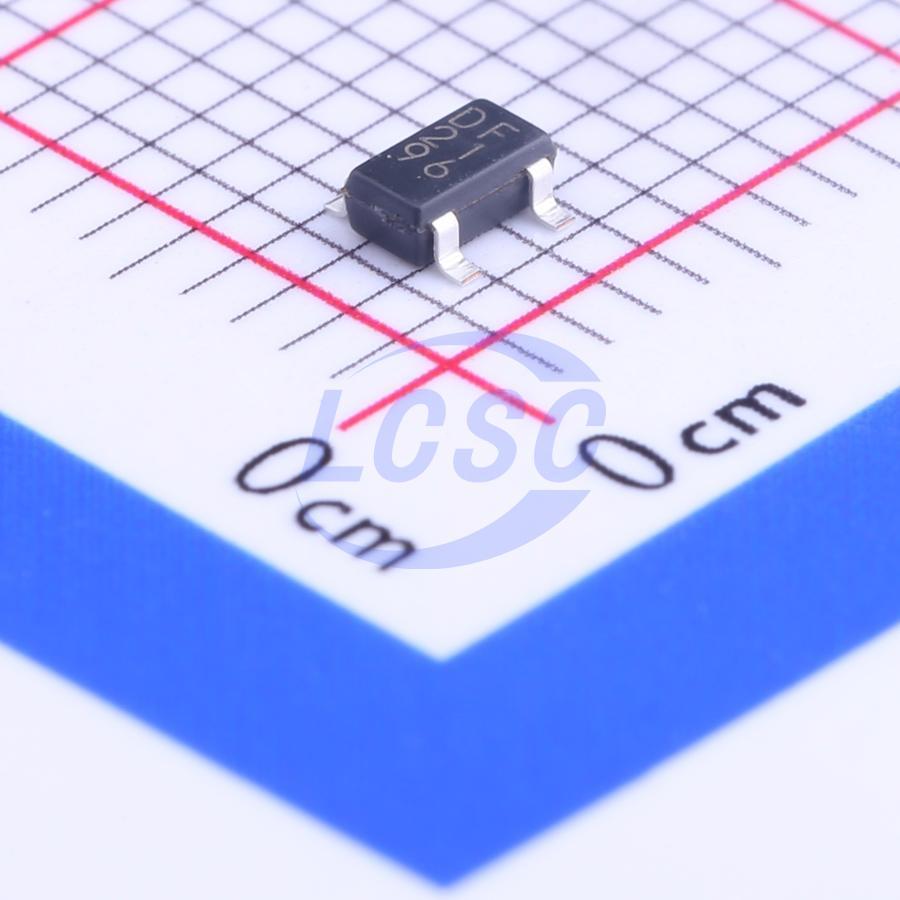

BD4825G-TR
100us Lagging function Active Low 950mV~10V 1 SSOP-5-1.6mm Supervisors RoHS
SSOP-5-1.6mmROHS CompliantActive
Voltage Detector IC
- Manufacturer
- ROHM
- Manufacturer part #
- BD4825G-TR
- Store part #
- C123010
- Package / case
- SSOP-5-1.6mm
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C123010
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.50 | ₹62.50 |
| 50+ | ₹10.86 | ₹543.00 |
| 150+ | ₹10.04 | ₹1,506.00 |
| 500+ | ₹9.43 | ₹4,715.00 |
| 3,000+ | ₹8.94 | ₹26,820.00 |
| 6,000+ | ₹8.69 | ₹52,140.00 |
5 × ₹12.50
₹62.50
excl. GST
₹73.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD4825G-TR
₹62.50 for 5 + GST
Specifications
- Reset Timeout
- 100us
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Function
- Lagging function
- Reset Active Level
- Active Low
- standby current
- 900nA
- Voltage - Supply
- 950mV~10V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.5V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
BD48xxx and BD49xxx series are highly accurate, low-current Voltage Detector IC series. The family includes BD48xxx devices with N-channel open drain output and BD49xxx devices with CMOS output. The devices are available for specific detection voltages ranging from 2.3V to 6.0V in increments of 0.1V.
Applications
- Circuits using microcontrollers or logic circuits that require a reset.
Key features
- High accuracy detection
- Ultra-low current consumption
- Two output types (Nch open drain and CMOS output)
- Wide Operating temperature range
- Very small and low height package
- Package SSOP5 is similar to SOT-23-5 (JEDEC)
- Package SSOP3 is similar to SOT-23-3 (JEDEC)
Alternatives
Similar parts — check the datasheet before substituting.
