ROHMDatasheet (PDF)

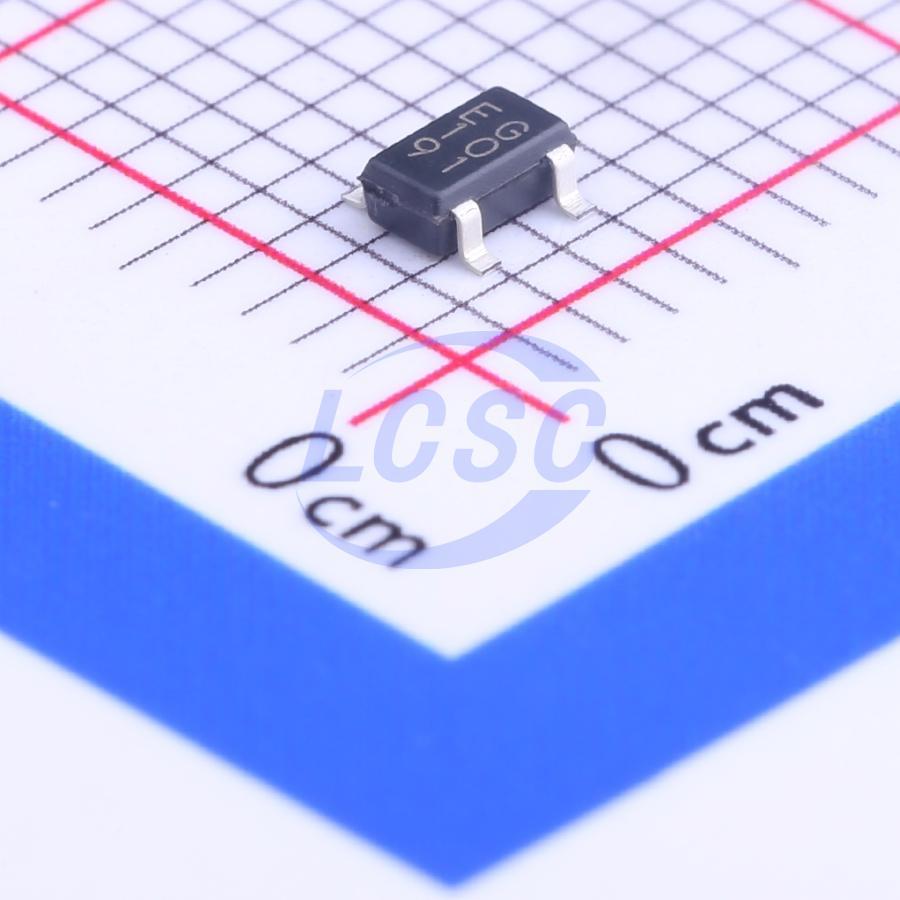

BD4846G-TR
Lagging function Active Low 950mV~10V 1 SSOP-5-1.6mm Supervisors RoHS
SSOP-5-1.6mmROHS3 CompliantActive
Voltage Detector IC
- Manufacturer
- ROHM
- Manufacturer part #
- BD4846G-TR
- Store part #
- C123044
- Package / case
- SSOP-5-1.6mm
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C123044
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.59 | ₹82.95 |
| 50+ | ₹13.01 | ₹650.50 |
| 150+ | ₹11.21 | ₹1,681.50 |
| 500+ | ₹9.86 | ₹4,930.00 |
| 3,000+ | ₹8.78 | ₹26,340.00 |
| 6,000+ | ₹8.24 | ₹49,440.00 |
5 × ₹16.59
₹82.95
excl. GST
₹97.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD4846G-TR
₹82.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Function
- Lagging function
- Reset Active Level
- Active Low
- standby current
- 900nA
- Voltage - Supply
- 950mV~10V
- ChipType
- Voltage Detector
- Threshold Voltage
- 4.6V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
BD48xxx and BD49xxx series are highly accurate, low-current Voltage Detector IC series. The family includes BD48xxx devices with N-channel open drain output and BD49xxx devices with CMOS output. The devices are available for specific detection voltages ranging from 2.3V to 6.0V in increments of 0.1V.
Applications
- Circuits using microcontrollers or logic circuits that require a reset.
Key features
- High accuracy detection
- Ultra-low current consumption
- Two output types (Nch open drain and CMOS output)
- Wide Operating temperature range
- Very small and low height package
- Package SSOP5 is similar to SOT-23-5 (JEDEC)
- Package SSOP3 is similar to SOT-23-3 (JEDEC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV303LSN45T1G#C233719onsemi · TSOP-5 | onsemi | TSOP-5 | 2,604 | ₹59.80 · 2,604 in stock | View |
| NCV303LSN44T1G#C892939onsemi · TSOP-5-1.5mm | onsemi | TSOP-5-1.5mm | 15 | ₹78.23 · 15 in stock | View | |
 | LP3470A438DBVR#C1849515TI · SOT-23-5 | TI | SOT-23-5 | 3,990 | ₹203.86 · 3,990 in stock | View |
| S-80146ANMC-JC7T2U#C2067381ABLIC · SOT-23-5 | ABLIC | SOT-23-5 | On request | ₹34.09 · 0 in stock | View | |
| SGM826B-4.6XN5G/TR#C5152414SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | On request | ₹81.79 · 0 in stock | View | |
