ROHMDatasheet (PDF)

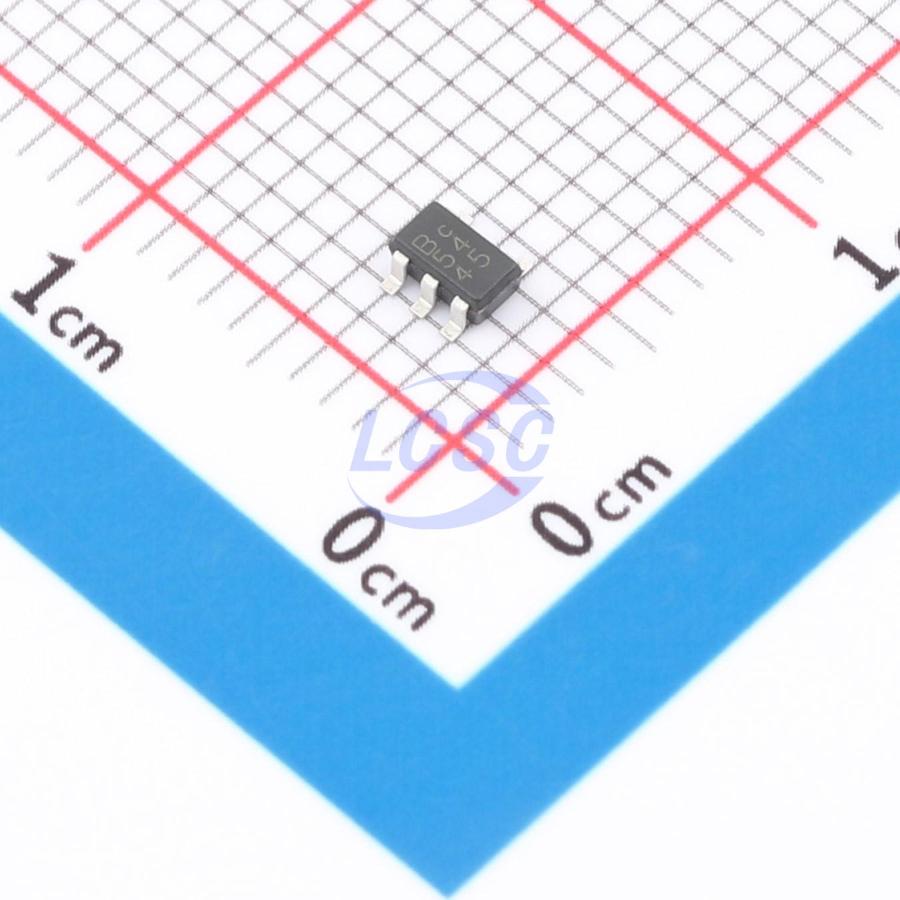

BD48E39G-MTR
100us Lagging function Active Low 950mV~10V 1 SSOP-5 Supervisors RoHS
SSOP-5ROHS CompliantActive
Automotive Voltage Detector IC
- Manufacturer
- ROHM
- Manufacturer part #
- BD48E39G-MTR
- Store part #
- C23787182
- Package / case
- SSOP-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,250 in stock
#C23787182
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.21 | ₹86.21 |
| 200+ | ₹35.38 | ₹7,076.00 |
| 500+ | ₹34.16 | ₹17,080.00 |
| 1,000+ | ₹33.55 | ₹33,550.00 |
1 × ₹86.21
₹86.21
excl. GST
₹101.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD48E39G-MTR
₹86.21 for 1 + GST
Specifications
- Reset Timeout
- 100us
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Function
- Lagging function
- Reset Active Level
- Active Low
- standby current
- 900nA
- Voltage - Supply
- 950mV~10V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3.9V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
BD48Exxx-M and BD49Exxx-M series are highly accurate, low current consumption Voltage Detector IC series. The line up includes BD48xxx devices with N-channel open drain output and BD49xxx devices with CMOS output. The devices are available for specific detection voltages ranging from 2.3V to 6.0V in increments of 0.1V.
Applications
- Circuits using microcontrollers or logic circuits that require a reset for automotive applications (car navigation, car audio, meter panel, exterior lamp etc.)
Key features
- High accuracy detection
- Ultra-low current consumption
- Two output types (N-ch open drain and CMOS output)
- Wide Operating temperature range
- Very small and low height package
- Package SSOP5 is similar to SOT-23-5(JEDEC)
- AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BD4840G-TR#C3688227ROHM · SSOP-5 | ROHM | SSOP-5 | On request | ₹22.29 · 0 in stock | View |
