ROHMDatasheet (PDF)

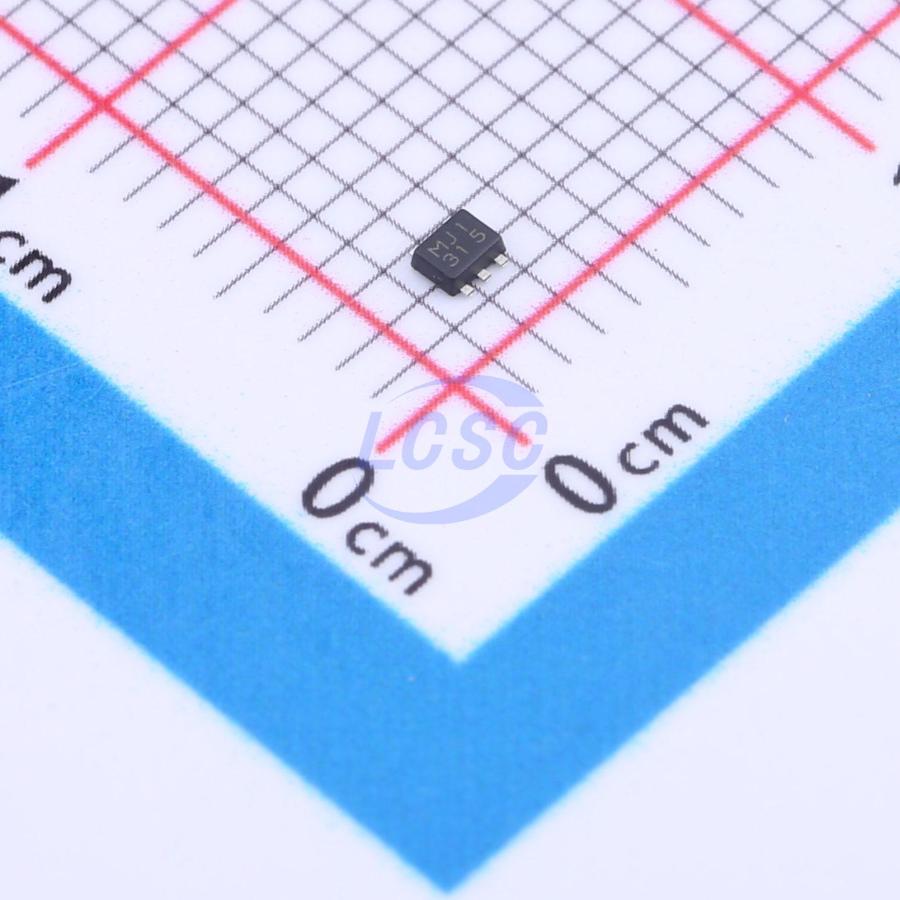

BD5228FVE-TR
Active Low 2.3V~6V 1 VSOF-5 Supervisors RoHS
VSOF-5ROHS3 CompliantActive
CMOS Voltage Detector IC with Capacitor-Controlled Time Delay
- Manufacturer
- ROHM
- Manufacturer part #
- BD5228FVE-TR
- Store part #
- C1880960
- Package / case
- VSOF-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,610 in stock
#C1880960
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.10 | ₹180.50 |
| 50+ | ₹31.62 | ₹1,581.00 |
| 150+ | ₹29.69 | ₹4,453.50 |
| 500+ | ₹24.36 | ₹12,180.00 |
| 3,000+ | ₹23.28 | ₹69,840.00 |
| 6,000+ | ₹22.65 | ₹1,35,900.00 |
5 × ₹36.10
₹180.50
excl. GST
₹212.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD5228FVE-TR
₹180.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 800nA
- Voltage - Supply
- 2.3V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.8V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
BD52xx and BD53xx series are highly accurate, low current consumption Voltage Detector ICs with a capacitor-controlled time delay. The line up includes BD52xx devices with N channel open drain output and BD53xx devices with CMOS output. The devices are available for specific detection voltages ranging from 2.3V to 6.0V in increments of 0.1V.
Applications
- Circuits using microcontrollers or logic circuits that require a reset.
Key features
- Delay Time Controlled by external Capacitor
- Two output types (N channel open drain and CMOS output)
- Ultra-low current consumption
- Very small and low height package
- Package SSOP5 is similar to SOT-23-5(JEDEC)
