ROHMDatasheet (PDF)

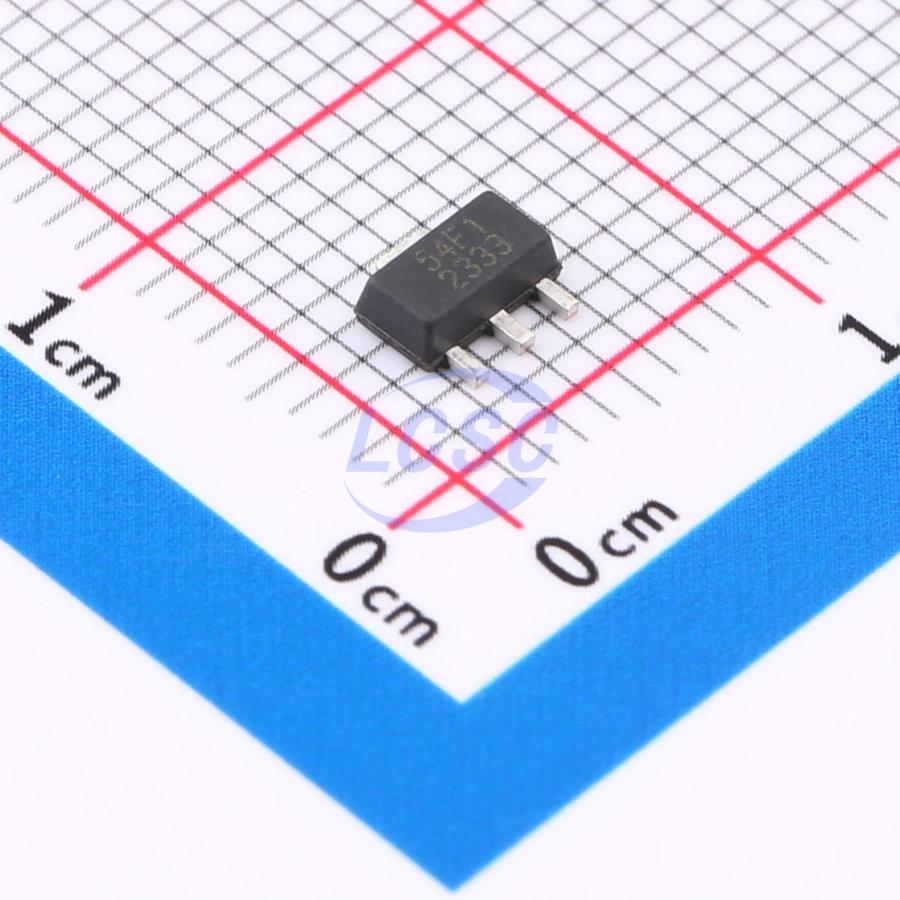

BD54FA1FP3-ZTL
5.4V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
Single-Output LDO Regulators 30V Voltage Resistance 0.1A LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BD54FA1FP3-ZTL
- Store part #
- C3748950
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
61 in stock
#C3748950
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹45.42 | ₹45.42 |
| 10+ | ₹44.33 | ₹443.30 |
| 30+ | ₹43.69 | ₹1,310.70 |
| 100+ | ₹42.81 | ₹4,281.00 |
1 × ₹45.42
₹45.42
excl. GST
₹53.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
BD54FA1FP3-ZTL
₹45.42 for 1 + GST
Specifications
- Output Voltage
- 5.4V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 300uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 25V
- Features
- Built-in soft-start;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
BDxxFA1FP3 series are LDO regulators with output current capability of 0.1A. The output voltages are 3.3V, 5.0V, 5.4V, and 12.0V with ±1% accuracy. The SOT89-3K package is most suitable for heat dissipation. As protective function to prevent IC from destruction, this chip has built-in over current protection circuit to protect the device when output is shorted, and built-in thermal shutdown circuit to protect the IC during thermal over load conditions. This product can be used in wide variety of digital appliances. These regulators can use ceramic capacitor, which have smaller size and longer life than other capacitors.
Key features
- Package SOT89-3K
- High accuracy output voltage ± 1.0%
- Built-in Over current protection circuit (OCP)
- Built-in Temperature protection circuit (TSD)
- Soft start function
- Input power supply voltage range: Vo + 3.0V to 25.0V
- Output voltage: 3.3V, 5.0V, 5.4V, 12.0V
- Output current: 0.1A (Max)
- Operating temperature range: Ta = -25°C to +85°C
