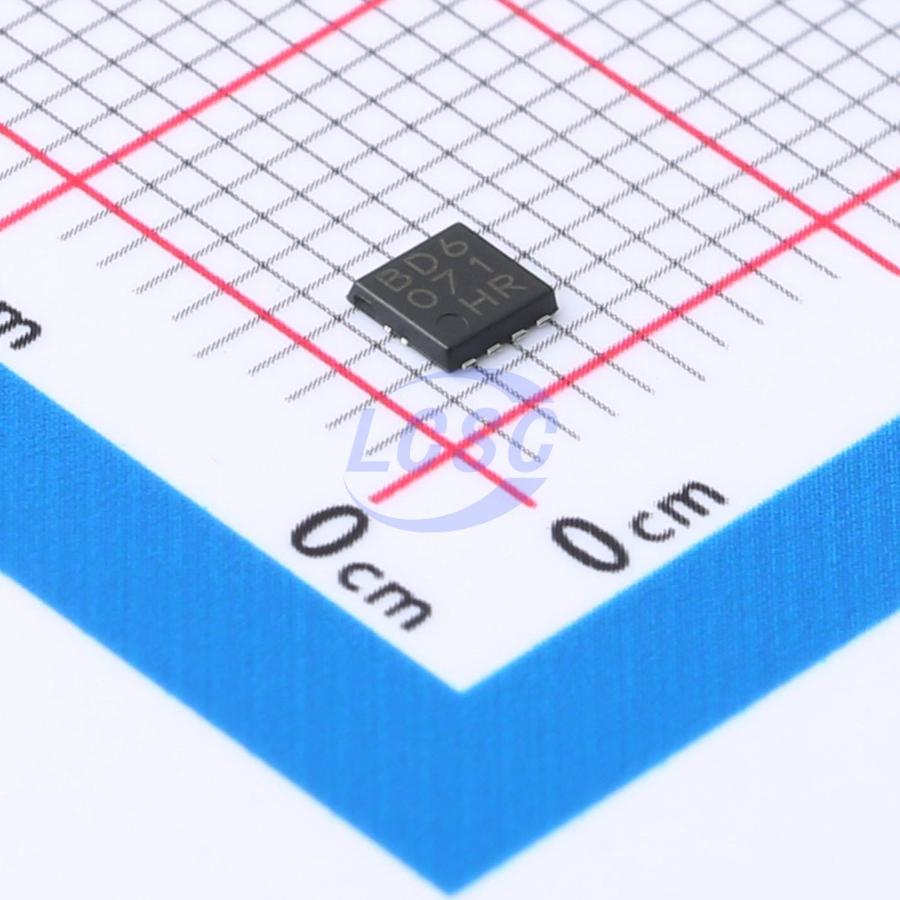

BD6071HFN-TR
800kHz~1.2MHz 1 DC-DC 14V 2.7V~5.5V HSON-8 LED Drivers RoHS
White LED Driver with Synchronous Boost Converter and PWM Brightness Control for up to 3 LEDs in Series
- Manufacturer
- ROHM
- Manufacturer part #
- BD6071HFN-TR
- Store part #
- C509827
- Package / case
- HSON-8
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,696 in stock
#C509827
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.89 | ₹63.89 |
| 10+ | ₹50.63 | ₹506.30 |
| 30+ | ₹45.21 | ₹1,356.30 |
| 100+ | ₹38.04 | ₹3,804.00 |
| 500+ | ₹34.99 | ₹17,495.00 |
| 1,000+ | ₹33.04 | ₹33,040.00 |
1 × ₹63.89
₹63.89
excl. GST
₹75.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD6071HFN-TR
₹63.89 for 1 + GST
Specifications
- Frequency - Switching
- 800kHz~1.2MHz
- Dimming
- PWM;Analog
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 14V
- Operating Temperature
- -30℃~+85℃
- Features
- Over Voltage Protection;Built-in soft-start;Short Circuit Protection;Over-Temperature Protection (OTP)
- Topology
- Boost
- Voltage - Input(DC)
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
BD6071HFN is boost DC/DC converter possible to boost output voltage up to 14V (Max.) and drive the white LEDs at constant. It is possible that turning on white LED steadily by a series connection which has no current variation, and by a fast transient response with current mode. And, BD6071HFN is white LED driver IC with synchronous rectification. With synchronous rectification (no external schottky diode required) and small package, they can save mount space.
Applications
- mobile phones
- portable game machines
- Inter - phone camera
- audio player
- portable DVD player
- back light for printer display
- support light of the camera for the mobile phone
- simple flash
- power supply for OEL
Key features
- Boost DC/DC converter
- Adjustment of brightness by external PWM pulse
- Possible to driving 3 LEDs
- Soft start function
- Synchronous rectification Boost DC/DC converter
- No external schottky diode required
- Output Open • Short protect
