ROHMDatasheet (PDF)

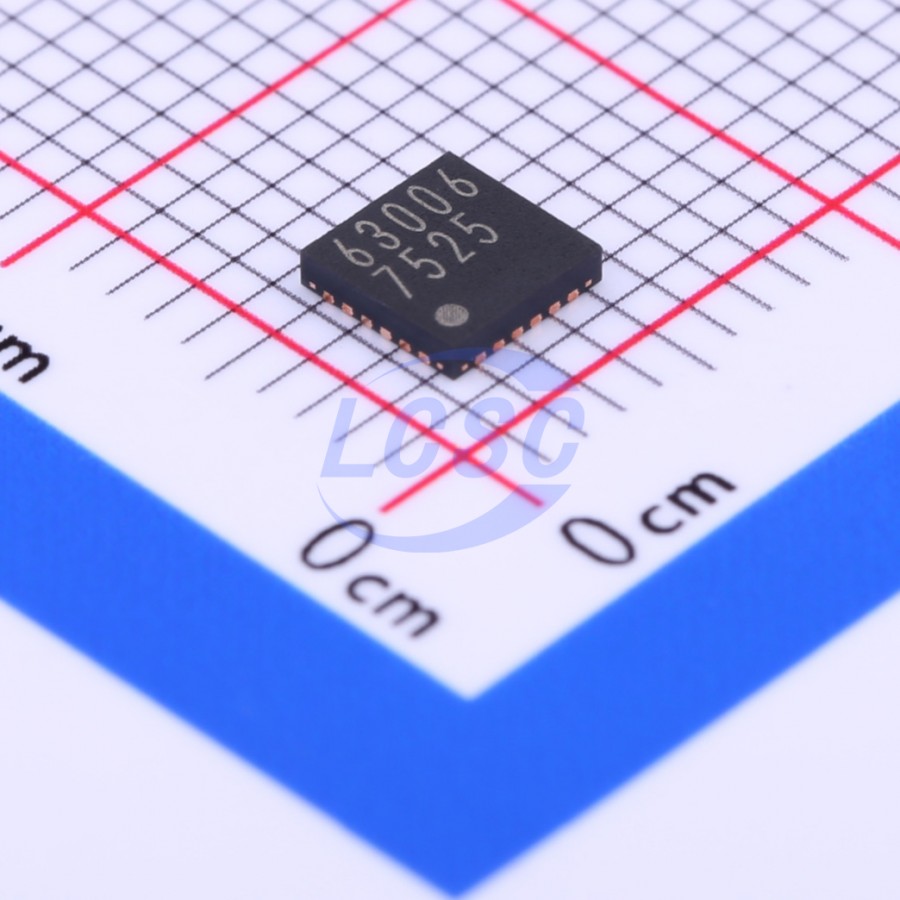

BD63006MUV-E2
8V~28V VQFN-24(4x4) Motor Drivers, Controllers RoHS
VQFN-24(4x4)ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- BD63006MUV-E2
- Store part #
- C239857
- Package / case
- VQFN-24(4x4)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,385 in stock
#C239857
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹121.32 | ₹121.32 |
| 10+ | ₹99.36 | ₹993.60 |
| 30+ | ₹88.50 | ₹2,655.00 |
| 100+ | ₹77.62 | ₹7,762.00 |
| 500+ | ₹63.49 | ₹31,745.00 |
| 1,000+ | ₹60.22 | ₹60,220.00 |
1 × ₹121.32
₹121.32
excl. GST
₹143.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD63006MUV-E2
₹121.32 for 1 + GST
Specifications
- Drive Type
- Three Phase
- Features
- Interleaved conduction protection;Motor stall protection;Motor speed indication
- Voltage - Supply
- 8V~28V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.7mA
- Output Current
- 1.5A
- RDS(on)
- 800mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.168 g
Overview
BD63006MUV is a Three-Phase Brushless Motor Driver with a 33V power supply voltage rating and a 1.5A output current rating. It generates a driving signal from the Hall sensor and drives PWM through the input control signal. In addition, the power supply can use 12V or 24V and it has various controls and built-in protection functions, making it useful for variety of purposes. Since the IC adopts small packages, it can be used on small diameter motors.
Applications
- OA machines
- Other consumer products
Key features
- Built-in 120° Commutation Logic Circuit
- Low ON Resistance DMOS Output
- PWM Control Mode (low side arm switching)
- Built-in Power-saving Circuit
- CW/CCW Function
- Short Brake Function
- FG Output (1FG/3FG conversion)
- Built-in Protection Circuit for Current Limiting (CL), Overheating (TSD), Over Current (OCP), Under Voltage (UVLO), Over Voltage (OVLO), Motor Lock (MLP)
