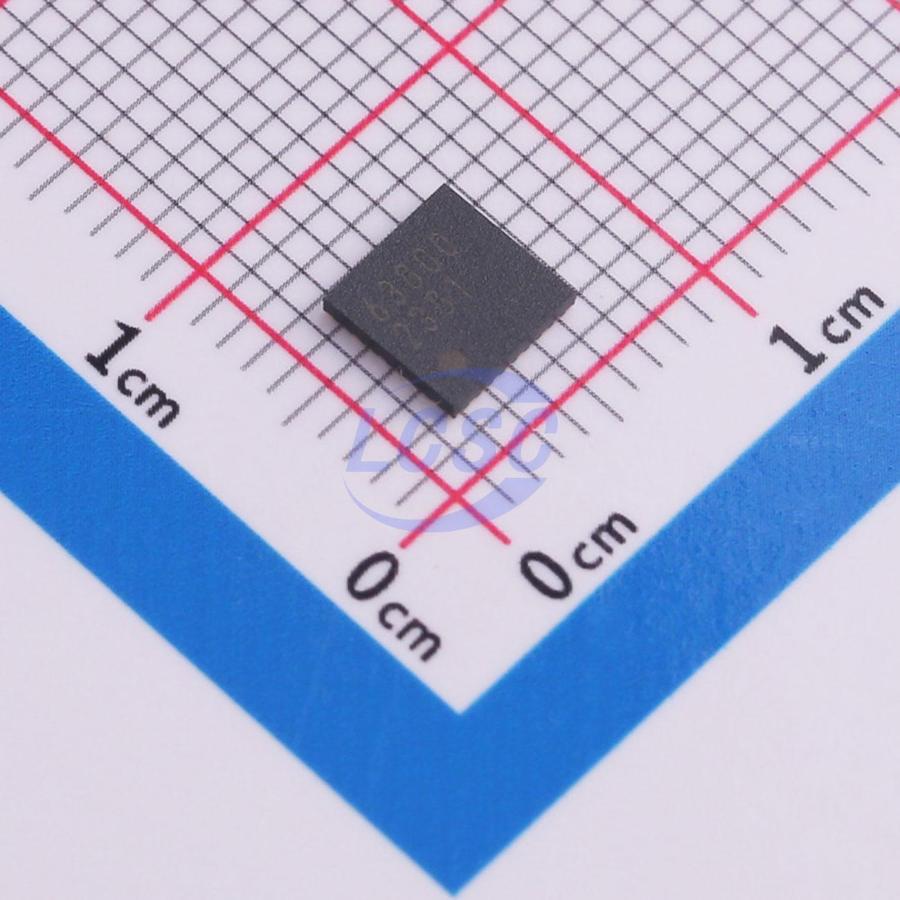

BD63800MUF-CE2
VFQFN-32-EP Motor Drivers, Controllers RoHS
- Manufacturer
- ROHM
- Manufacturer part #
- BD63800MUF-CE2
- Store part #
- C3681308
- Package / case
- VFQFN-32-EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,195 in stock
#C3681308
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹180.83 | ₹180.83 |
| 10+ | ₹148.10 | ₹1,481.00 |
| 30+ | ₹130.09 | ₹3,902.70 |
| 100+ | ₹109.72 | ₹10,972.00 |
| 500+ | ₹100.61 | ₹50,305.00 |
| 1,000+ | ₹96.71 | ₹96,710.00 |
1 × ₹180.83
₹180.83
excl. GST
₹213.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD63800MUF-CE2
₹180.83 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Power-on reset;Over temperature protection;Thermal warning;Overcurrent Protection;Overvoltage protection;Under-voltage lockout
- Technology
- Yes
- Interface
- SPI;STEP/DIR
- Operating Temperature
- -40℃~+125℃
- Output Current
- 1.21A
- Step Resolution
- 1;2;4;8;16;32
- Control Voltage
- 6V~28V
- RDS(on)
- 750mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
BD63800xxx-C is a bipolar low-power driver with PWM current drive. The device is rated at a supply voltage of 40 V and an output current of 1.35 A. BD63800xxx-C offers two input interfaces as drive modes: CLK-IN and SPI-IN, along with six excitation modes: full step, 1/2 step, 1/4 step, 1/8 step, 1/16 step, and 1/32 step. Mixed decay mode — seamless adjustment of the slow/fast decay ratio — and auto decay mode — automatic switching between slow/fast decay — enable optimized control for various motors. In addition, BD63800xxx-C operates from a single power supply, simplifying equipment design.
Applications
- Head-up display
- LED headlights, etc.
Key features
- AEC-Q100 certified (Grade 1)
- Automotive product supporting functional safety
- Low on-resistance DMOS output
- CLK-IN drive mode
- PWM constant-current control (individual excitation)
- Built-in spike noise cancellation (no external noise filter required)
- Supported modes: full step, 1/2 step, 1/4 step, 1/8 step, 1/16 step, and 1/32 step
- Freely switchable excitation mode transition timing
- Current decay mode switching: mixed decay with linear adjustment of slow/fast decay ratio; auto decay with automatic slow/fast decay switching
- Selectable rotation direction: CW/CCW
- Power-saving function
- Built-in pull-down resistors on logic inputs
- Power-on reset function
- Ghost power prevention (no-supply fault prevention)
- Thermal shutdown (TSD)
- Thermal warning (TW)
- Overcurrent protection (OCP)
- Overvoltage lockout (OVLO)
- Undervoltage lockout (UVLO)
- Undervoltage motor hold function
- Open-load detection
- Stall detection
- Adjacent pin short-circuit protection
