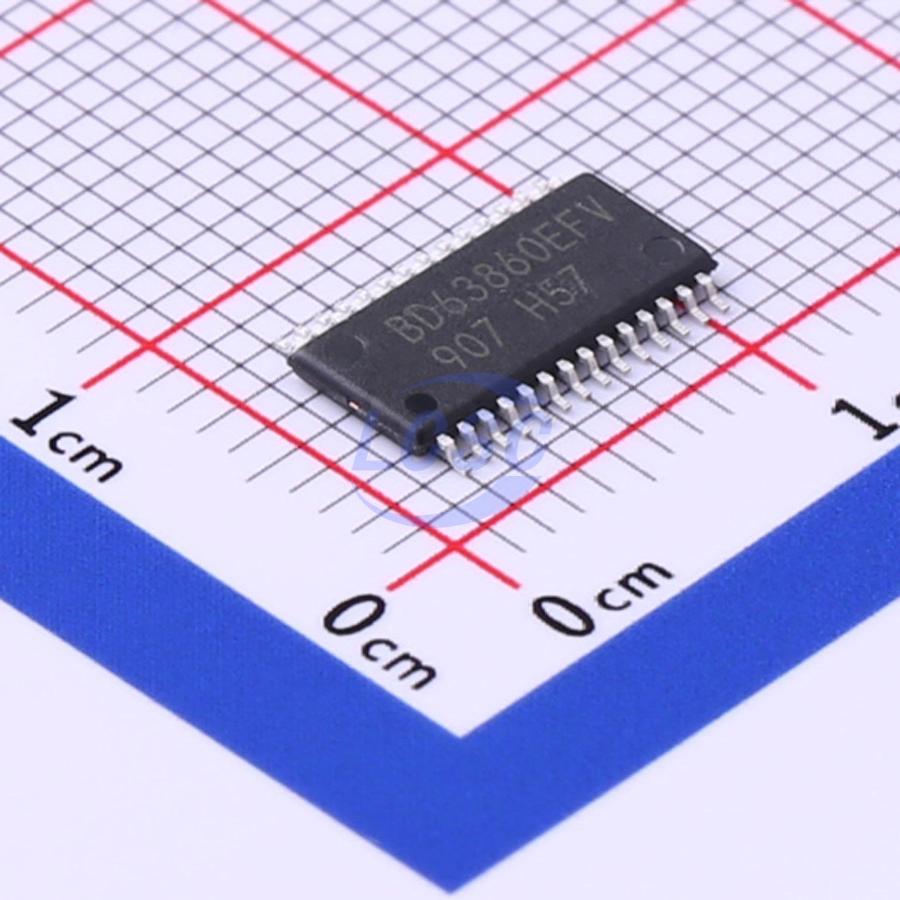

BD63860EFV-E2
HTSSOP-28-EP Motor Drivers, Controllers RoHS
Stepping Motor Driver
- Manufacturer
- ROHM
- Manufacturer part #
- BD63860EFV-E2
- Store part #
- C600853
- Package / case
- HTSSOP-28-EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,849 in stock
#C600853
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹275.70 | ₹275.70 |
| 10+ | ₹243.11 | ₹2,431.10 |
| 30+ | ₹222.69 | ₹6,680.70 |
| 100+ | ₹201.61 | ₹20,161.00 |
| 500+ | ₹192.06 | ₹96,030.00 |
| 1,000+ | ₹187.93 | ₹1,87,930.00 |
1 × ₹275.70
₹275.70
excl. GST
₹325.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD63860EFV-E2
₹275.70 for 1 + GST
Specifications
- Number of H-bridges
- 2
- Drive Type
- Bipolar Driver
- Features
- Power-on reset;Over temperature protection;Overcurrent Protection;Under-voltage lockout;Overvoltage protection
- Technology
- Yes
- Interface
- Serial
- Operating Temperature
- -25℃~+85℃
- Output Current
- 1.7A
- Step Resolution
- 8
- Control Voltage
- 16V~28V
- RDS(on)
- 800mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.296 g
Overview
BD63860EFV is a high-grade stepping motor driver with an internal 3-bit DAC, designed to drive bipolar stepping motors in eighth-step modes. The IC features several integrated protection circuits and achieves excellent thermal dissipation performance due to its low ON-resistance DMOS output transistors and high-dissipation power package. This IC is rated for 36 V maximum input voltage / 2.5 A maximum output current and employs a constant-current, PWM allowing for full-, half-, quarter- and eighth-step excitation modes. Additionally, the current decay mode can be freely set to a ratio of fast and slow decay, allowing the IC to adapt to the optimum control conditions for every motor. The single-power supply configuration allows for easy design and layout in the application.
Applications
- Laser printers
- Multi-function printers
- Inkjet printers
- Scanners
- Mini printers
- PPCs
- Photo printers
Key features
- Single power supply input (Vin max. 36 V)
- Rated output current: 2.5 A (peak)
- Low ON-resistance DMOS output (0.8 Ω total across upper + lower FETs)
- Serial/CLK-IN drive mode (integrated translator circuit)
- PWM constant-current control (fixed chopping frequency)
- Built-in spike noise cancel function (external noise filter is unnecessary)
- Full-, half-, quarter- and eighth-step functionality
- AUTO decay mode
- Current decay mode switching function (linearly variable fast/slow decay ratio)
- Normal rotation & reverse rotation switching function
- Power-save function
- Built-in logic input pull-down resistor
- Power-on reset function
- Thermal shutdown circuit (TSD)
- Over-current protection circuit (OCP)
- Under-voltage lockout circuit (UVLO)
- Over-voltage lockout circuit (OVLO)
- Ghost Supply Prevention (protects against malfunction when power supply is disconnected)
- Micro-miniature, ultra-thin and high heat-radiation (exposed metal type) HTSSOP package
