ROHM

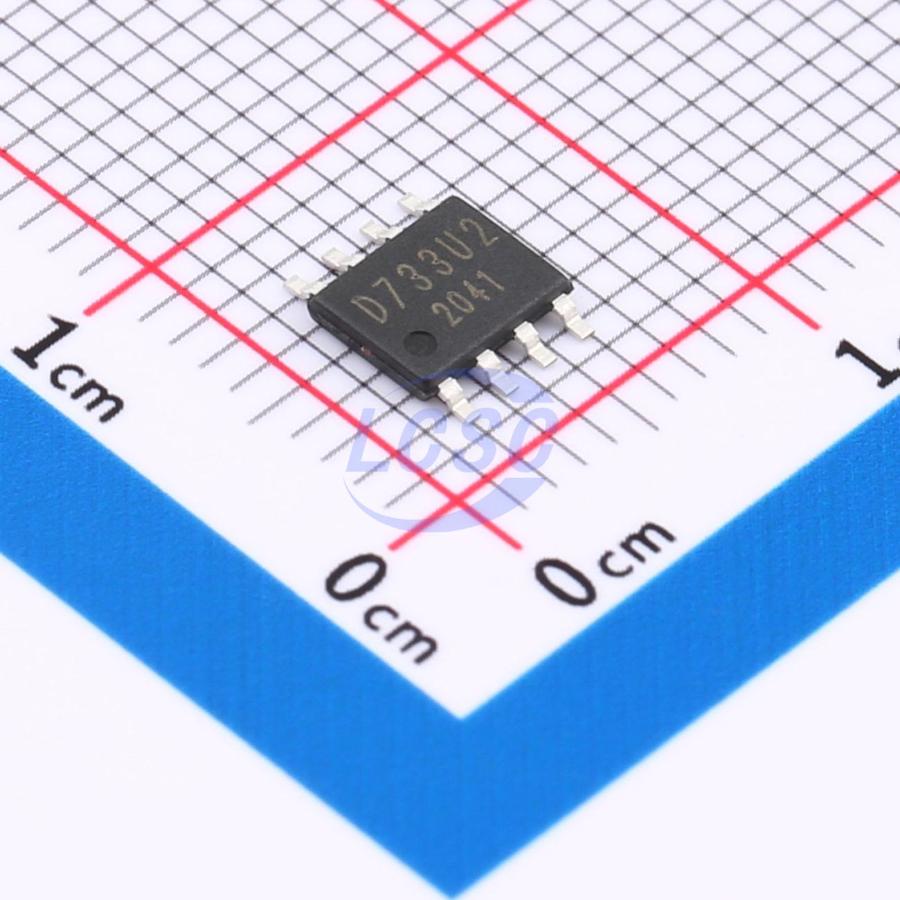

BD733U2EFJ-CE2

3.3V Positive HTSOP-8-J Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

HTSOP-8-JROHS3 CompliantActive

Single-Output LDO Regulators, Ultra Low Quiescent Current

Manufacturer: ROHM
Manufacturer part #: BD733U2EFJ-CE2
Store part #: C5595676
Package / case: HTSOP-8-J
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

15 in stock

#C5595676

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹193.93	₹193.93
10+	₹189.81	₹1,898.10
30+	₹186.99	₹5,609.70
100+	₹183.96	₹18,396.00

Quantity (min 1)

1 × ₹193.93

₹193.93

excl. GST

₹228.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

BD733U2EFJ-CE2

₹193.93 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 6uA
Output Configuration: Positive
Output Current: 200mA
Operating Voltage: 45V
Features: Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.31 g

Overview

The BD7xxL2EFJ/FP/FP3 - C are low quiescent regulators featuring 50V absolute maximum voltage, and output voltage accuracy of ±2% 200mA output current and 6uA (Typ) current consumption. These regulators are therefore ideal for applications requiring a direct connection to the battery and a low current consumption. Ceramic capacitors can be used for compensation of the output capacitor phase. Furthermore, these ICs also feature overcurrent protection to protect the device from damage caused by short - circuiting and an integrated thermal shutdown to protect the device from overheating at overload conditions.

Applications

Automotive (body, audio system, navigation system, etc.)

Key features

Ultra low quiescent current: 6μA (Typ)
Output current capability: 200mA
Output voltage: 3.3 V or 5.0 V (Typ)
High output voltage accuracy: ±2%
Low saturation voltage by using PMOS output transistor.
Integrated overcurrent protection to protect the IC from damage caused by output short - circuiting.
Integrated thermal shutdown to protect the IC from overheating at overload conditions.
Low ESR ceramic capacitor can be used as output capacitor.
HTSOP - J8, TO252 - 3, SOT223 - 4(F) 3type package
